ECG.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 6POS GOLD SOLDER

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Connector Type	Shielding	Material Flammability Rating	Color	Fastening Type	Number of Positions	Current Rating (Amps)	Contact Material	Termination	Insert Material	Contact Finish - Mating	Primary Material	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation [custom]	Mounting Feature	Shell Size - Insert	Shell Finish	Shell Size - Insert [custom]	Shell Size - Insert [custom]
LEMO ECG.1B.306.KLN	1.5 Ám	59 Áin	Brass	Receptacle Female Sockets	Shielded	UL94 V-0	Black	Push-Pull	6	7 A	Bronze	Solder	Polyetheretherketone (PEEK)	Gold	Metal	IP50 - Dust Protected	Panel Mount Through Hole	-55 C	250 °C	G	Front and Rear Side Nut	306

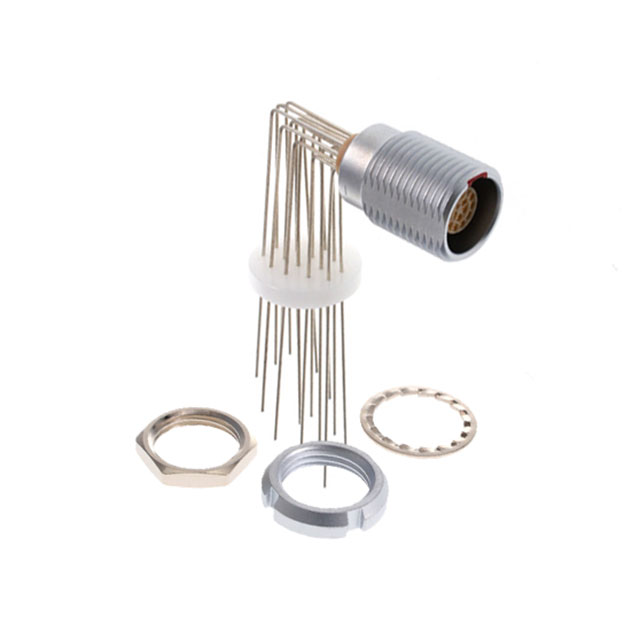

LEMO ECG.1B.316.CLV	1.5 Ám	59 Áin	Brass	Receptacle Female Sockets	Shielded	UL94 V-0	Silver	Push-Pull	16	1.5 A	Bronze	Solder	Polyetheretherketone (PEEK)	Gold	Metal	IP50 - Dust Protected	Panel Mount Right Angle Through Hole	-55 C	250 °C	G	Front and Rear Side Nut		Chrome	316
LEMO ECG.1B.304.CLN	1.5 Ám	59 Áin	Brass	Receptacle Female Sockets	Shielded	UL94 V-0	Silver	Push-Pull	4	10 A	Bronze	Solder	Polyetheretherketone (PEEK)	Gold	Metal	IP50 - Dust Protected	Panel Mount Through Hole	-55 C	250 °C	G	Front and Rear Side Nut	304	Chrome

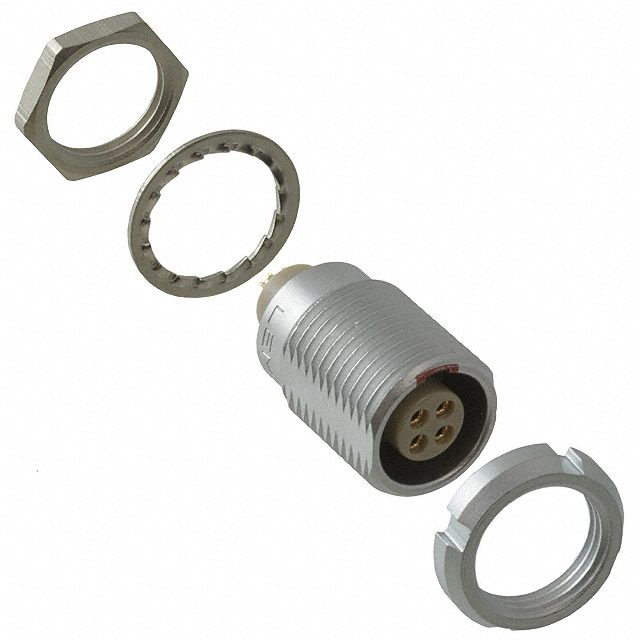

LEMO ECG.1B.304.CLL	1.5 Ám	59 Áin	Brass	Receptacle Female Sockets	Shielded	UL94 V-0	Silver	Push-Pull	4	10 A	Bronze		Polyetheretherketone (PEEK)	Gold	Metal	IP50 - Dust Protected	Panel Mount	-55 C	250 °C	G	Front and Rear Side Nut	304	Chrome

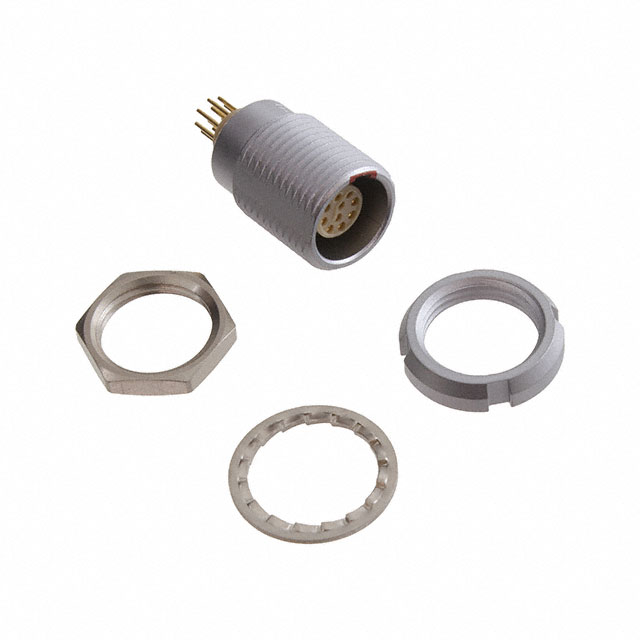

LEMO ECG.1B.310.CLN	1.5 Ám	59 Áin	Brass	Receptacle Female Sockets	Shielded	UL94 V-0	Silver	Push-Pull	10	2.5 A	Bronze	Solder	Polyetheretherketone (PEEK)	Gold	Metal	IP50 - Dust Protected	Panel Mount Through Hole	-55 C	250 °C	G	Front and Rear Side Nut	310	Chrome

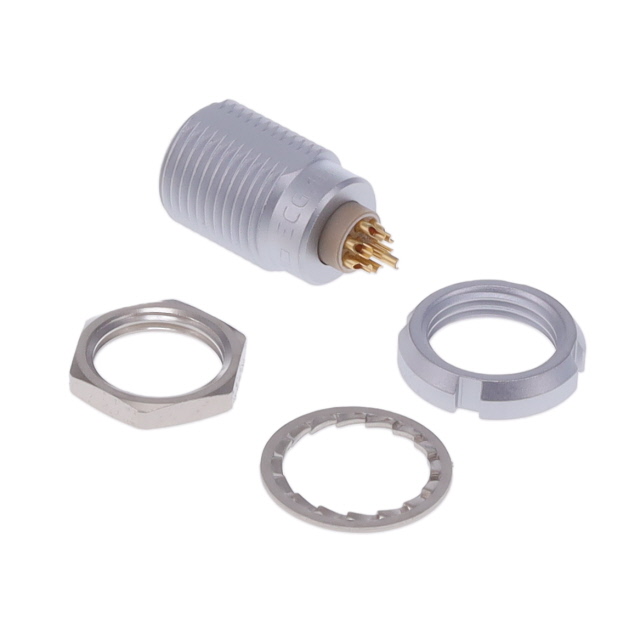

LEMO ECG.1B.307.CLL	1.5 Ám	59 Áin	Brass	Receptacle Female Sockets	Shielded	UL94 V-0	Silver	Push-Pull	7	7 A	Bronze		Polyetheretherketone (PEEK)	Gold	Metal	IP50 - Dust Protected	Panel Mount	-55 C	250 °C	G	Front and Rear Side Nut		Chrome		307
LEMO ECG.1B.306.CYM	1.5 Ám	59 Áin	Brass	Receptacle Female Sockets	Shielded	UL94 V-0	Silver	Push-Pull	6	7 A	Bronze	Crimp	Polyetheretherketone (PEEK)	Gold	Metal	IP50 - Dust Protected	Panel Mount	-55 C	250 °C	G	Front and Rear Side Nut	306	Chrome
LEMO ECG.1B.303.CYM	1.5 Ám	59 Áin	Brass	Receptacle Female Sockets	Shielded	UL94 V-0	Silver	Push-Pull		12 Amps	Bronze	Crimp	Polyetheretherketone (PEEK)	Gold	Metal	IP50 - Dust Protected	Panel Mount	-55 C	250 °C	G	Front and Rear Side Nut	303	Chrome
LEMO ECG.1B.302.CYM	1.5 Ám	59 Áin	Brass	Receptacle Female Sockets	Shielded	UL94 V-0	Silver	Push-Pull	2	15 A	Bronze	Crimp	Polyetheretherketone (PEEK)	Gold	Metal	IP50 - Dust Protected	Panel Mount	-55 C	250 °C	G	Front and Rear Side Nut	302	Chrome

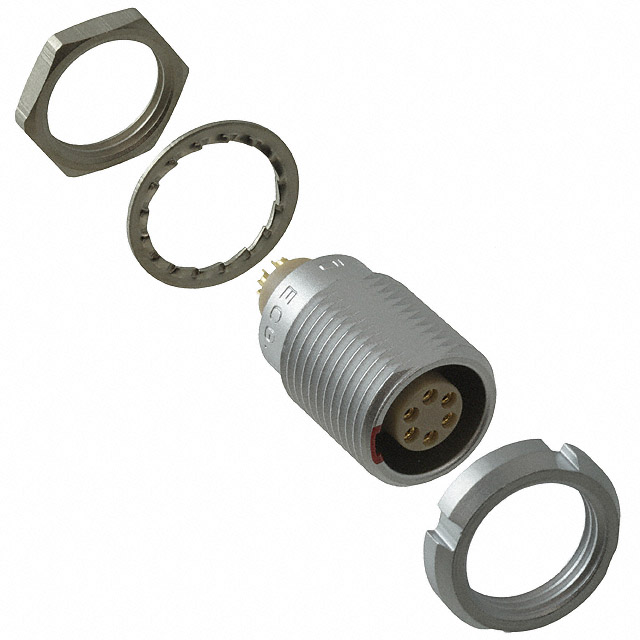

LEMO ECG.1B.306.CLN	1.5 Ám	59 Áin	Brass	Receptacle Female Sockets	Shielded	UL94 V-0	Silver	Push-Pull	6	7 A	Bronze	Solder	Polyetheretherketone (PEEK)	Gold	Metal	IP50 - Dust Protected	Panel Mount Through Hole	-55 C	250 °C	G	Front and Rear Side Nut	306	Chrome
