M2018TJ Series

Catalog

SWITCH ROCKER SPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Approval Agency	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Switch Function	Actuator Marking	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Circuit	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Color - Actuator/Cap	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches M2018TJG03	50000 Cycles	50000 Cycles	CSA UL	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	0.4 VA	Mom-Off-Mom	Varies by Cap	PC Pin	28 V	28 V	Actuator Arm Cap Required	SPDT	15.9 mm	12.5 mm
NKK Switches M2018TJG01-FA	50000 Cycles	50000 Cycles	CSA UL	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	0.4 VA	Mom-Off-Mom	No Marking	Solder Lug	28 V	28 V	Concave	SPDT	15.9 mm	12.5 mm	Black
NKK Switches M2018TJW03-FA-1A	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	3 A 6 A	Mom-Off-Mom	No Marking	PC Pin	125 V	30 V	Concave	SPDT	15.9 mm	12.5 mm	Black

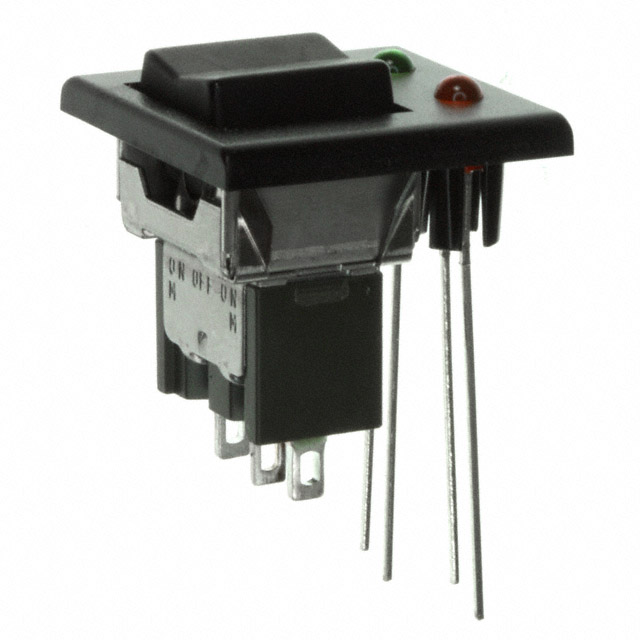

NKK Switches M2018TJW01-FA-3A-CF	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	3 A 6 A	Mom-Off-Mom	No Marking	Solder Lug	125 V	30 V	Concave (Standard V) - Illuminated	SPDT	18.4 mm	15.9 mm	Black	2 VDC 2.25 VDC	Green/Red LED
NKK Switches M2018TJG03-GA-1A	50000 Cycles	50000 Cycles	CSA UL	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	0.4 VA	Mom-Off-Mom	No Marking	PC Pin	28 V	28 V	Paddle	SPDT	15.9 mm	12.5 mm	Black
NKK Switches M2018TJW01/U-FA-1A	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	6 A	Mom-Off-Mom	No Marking	Solder Lug	125 V		Concave	SPDT	15.9 mm	12.5 mm	Black
NKK Switches M2018TJG01-FC-1A	50000 Cycles	50000 Cycles	CSA UL	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	0.4 VA	Mom-Off-Mom	No Marking	Solder Lug	28 V	28 V	Concave	SPDT	15.9 mm	12.5 mm	Red
NKK Switches M2018TJW01-GE-1A	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	3 A 6 A	Mom-Off-Mom	No Marking	Solder Lug	125 V	30 V	Paddle	SPDT	15.9 mm	12.5 mm	Yellow
NKK Switches M2018TJW03-GB	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	3 A 6 A	Mom-Off-Mom	No Marking	PC Pin	125 V	30 V	Paddle	SPDT	15.9 mm	12.5 mm	White
NKK Switches M2018TJG01-GA-2A-F	50000 Cycles	50000 Cycles	CSA UL	Panel Mount Snap-In	Epoxy Sealed Terminals	85 °C	-30 ░C	0.4 VA	Mom-Off-Mom	No Marking	Solder Lug	28 V	28 V	Paddle - Illuminated	SPDT	15.9 mm	12.5 mm	Black	2.1 VDC	Green LED
