10SB Series

Catalog

AC POWER ENTRY MODULES IEC CONNECTOR FILTER, SINGLE, 250VAC, 10A, SCREW MOUNTING, N/A-LUG, MEDICAL

Part	Connector Type	Filter Type	Mounting Type	Connector Style	Approval Agency	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Fuse Holder, Drawer	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Current Rating - Appliance Inlet	Switch Features	Current Rating - Filter

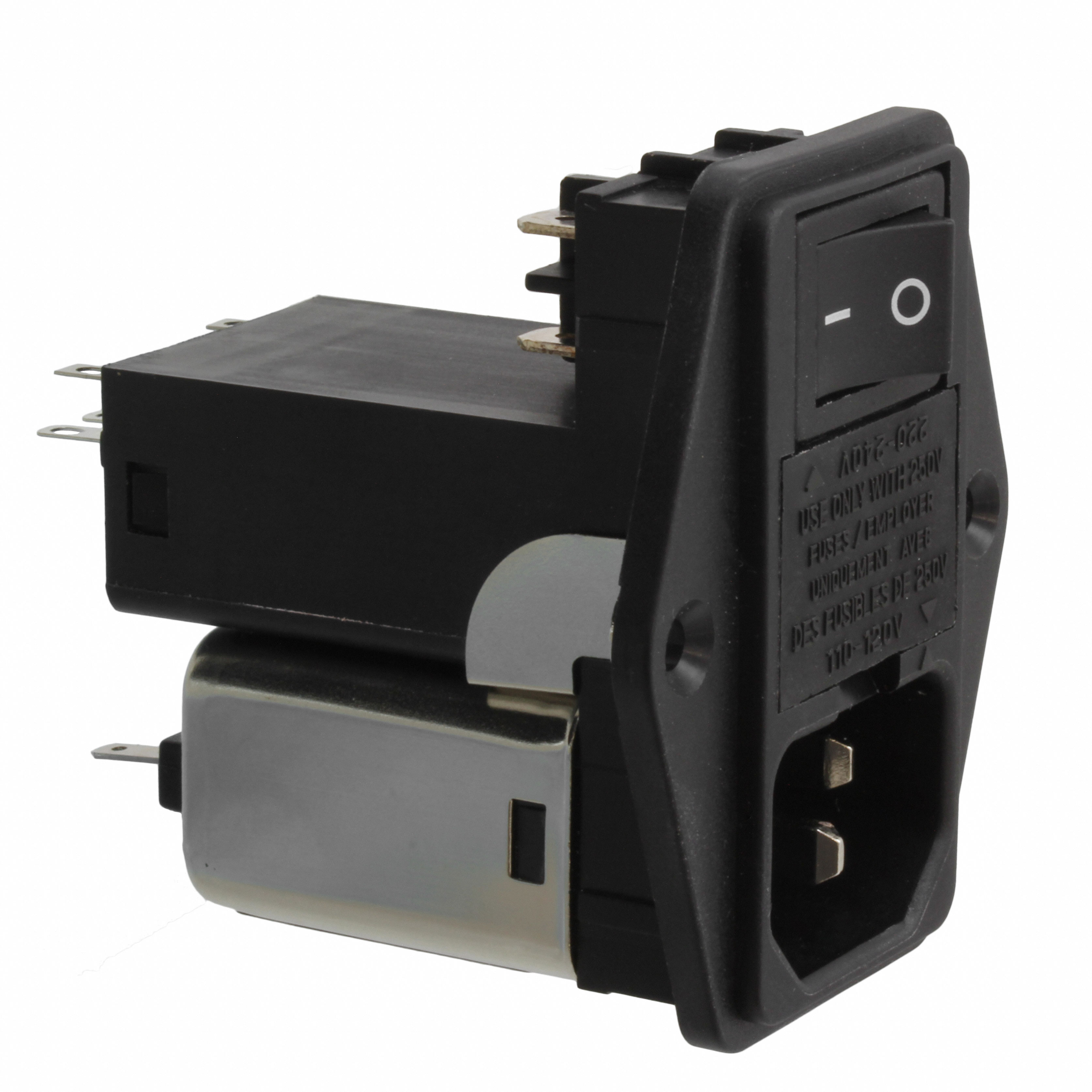

Delta Electronics 10SB3SM	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	Flange Panel Mount	IEC 320-C14	CSA UL VDE	Solder Eyelet	55.9 mm	28.5 mm	Fuse Holder	115 VAC	250 VAC	10 A	Switch On-Off

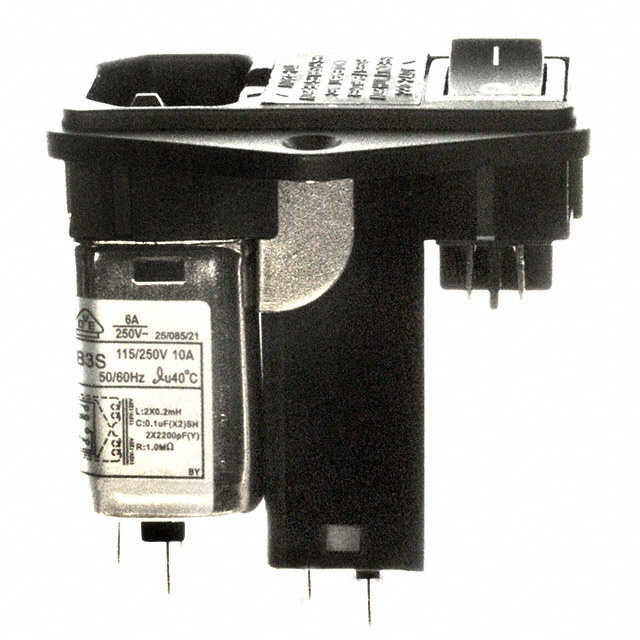

Delta Electronics 10SB3S	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	Flange Panel Mount	IEC 320-C14	CSA UL VDE	Solder Eyelet	55.9 mm	28.5 mm	Fuse Holder	115 VAC	250 VAC	10 A	Switch On-Off

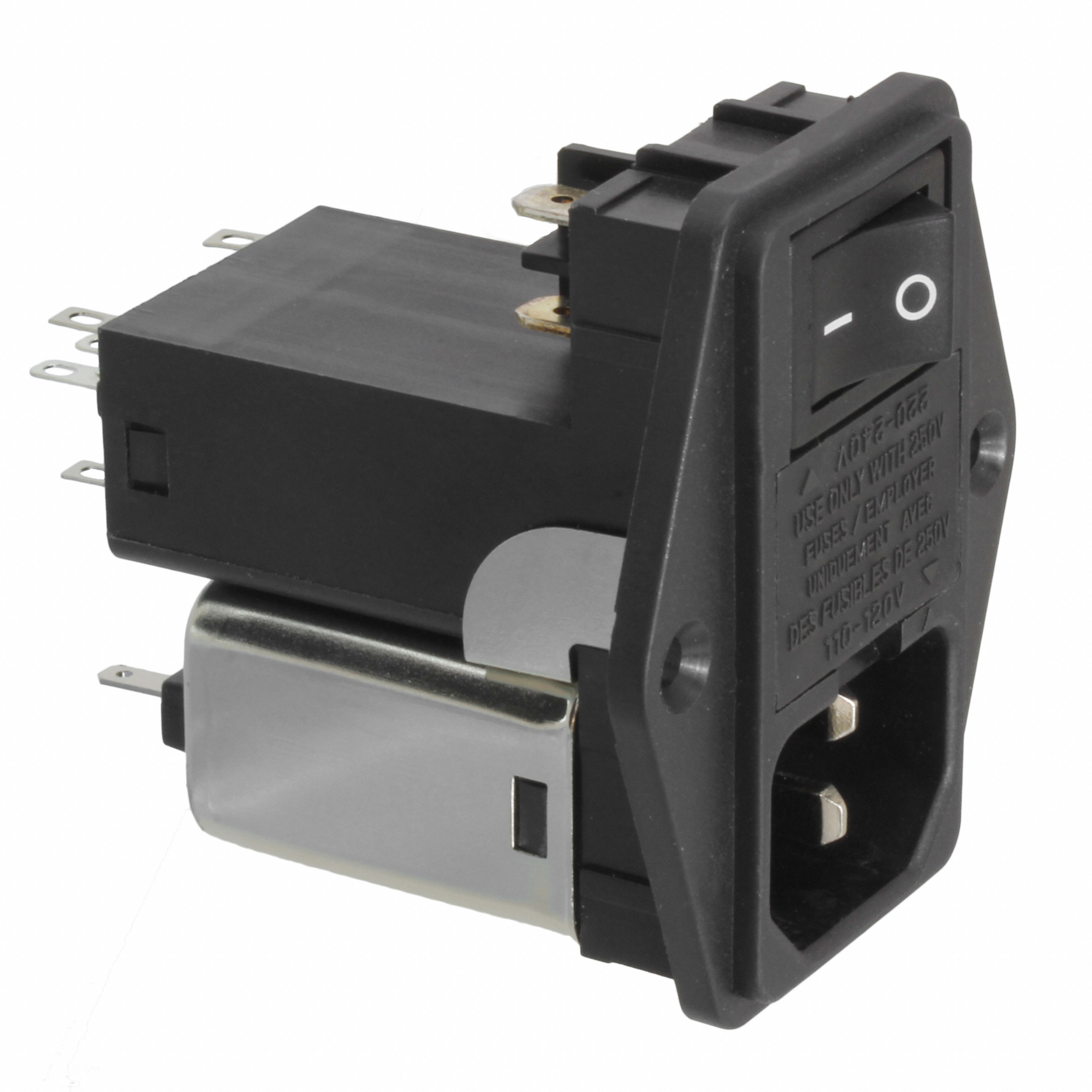

Delta Electronics 10SB3	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	Flange Panel Mount	IEC 320-C14	CSA UL VDE	Solder Eyelet	55.9 mm	28.5 mm	Twin Fused	115 VAC	250 VAC	10 A	Switch On-Off

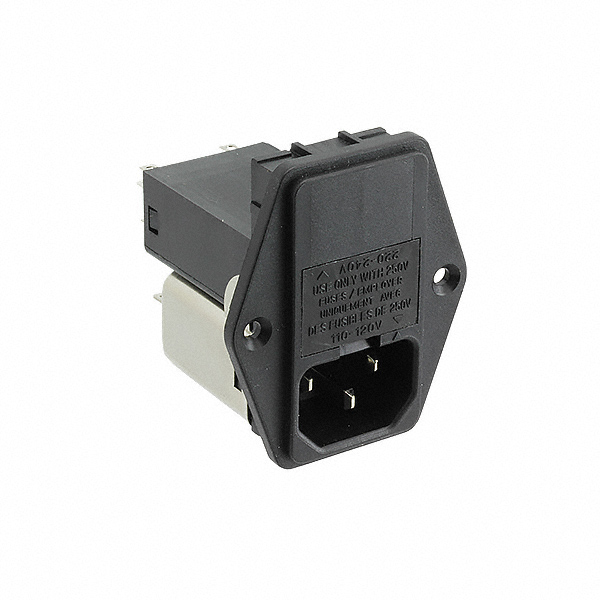

Delta Electronics 10SB4	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	Flange Panel Mount	IEC 320-C14	CSA UL VDE	Solder Eyelet	55.9 mm	28.5 mm	Twin Fused	115 VAC	250 VAC	10 A		10 A

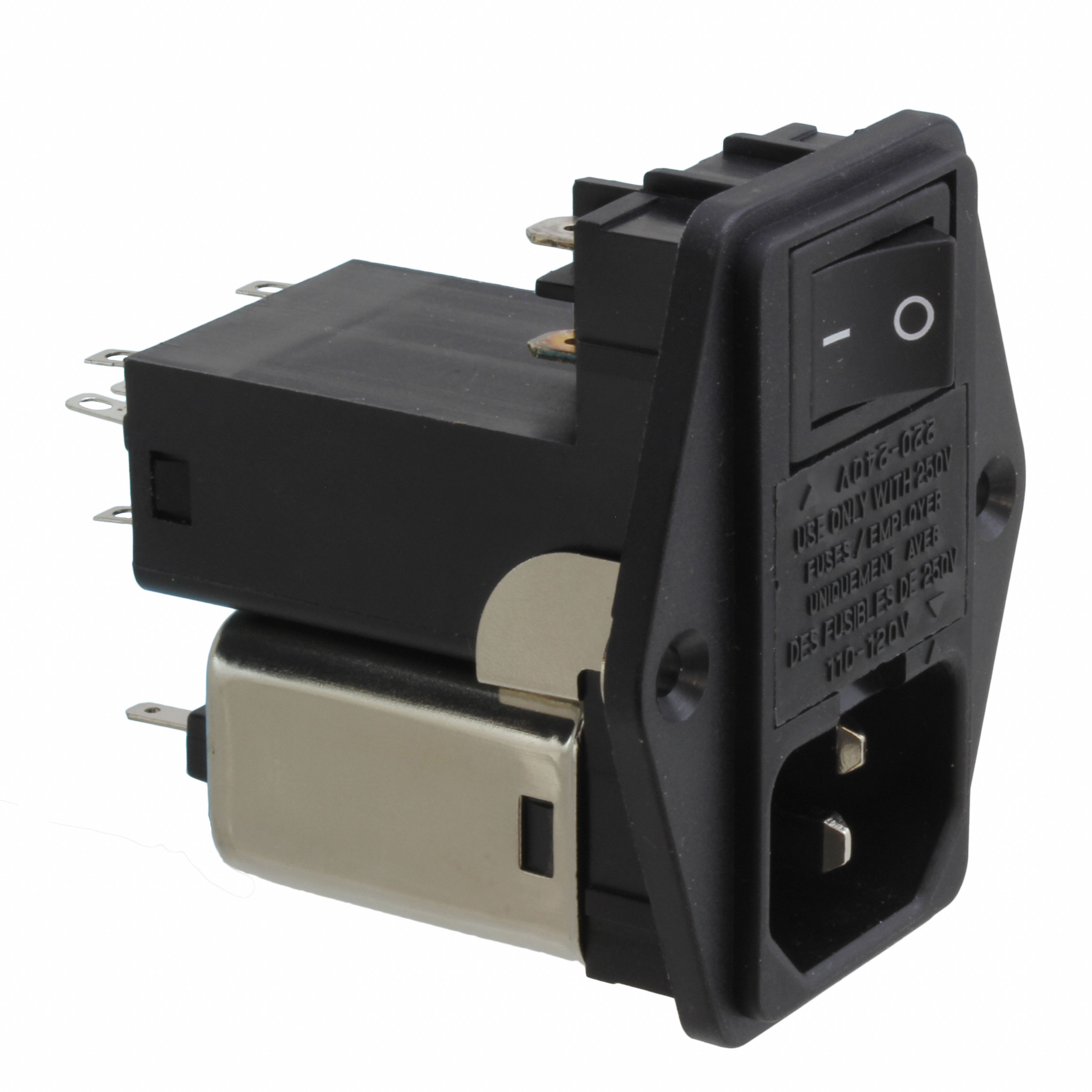

Delta Electronics 10SB3M	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	Flange Panel Mount	IEC 320-C14	CSA UL VDE	Solder Eyelet	55.9 mm	28.5 mm	Twin Fused	115 VAC	250 VAC	10 A	Switch On-Off
