PPPC081 Series

Catalog

CONN HDR 8POS 0.1 GOLD PCB

Part	Contact Material	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Mating	Connector Type	Current Rating (Amps)	Mounting Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Type	Termination	Contact Finish Thickness - Mating	Fastening Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PPPC081LFBN-RC	Phosphor Bronze	Flash	Square	Polyester	0.335 "	8.51 mm	8	Gold	Header	3 A	Through Hole	250 V	0.1 "	2.54 mm	UL94 V-0	All	Gold	0.126 "	3.2 mm	Black	Female Socket	Solder	Flash	Push-Pull	1	-40 C	105 ░C

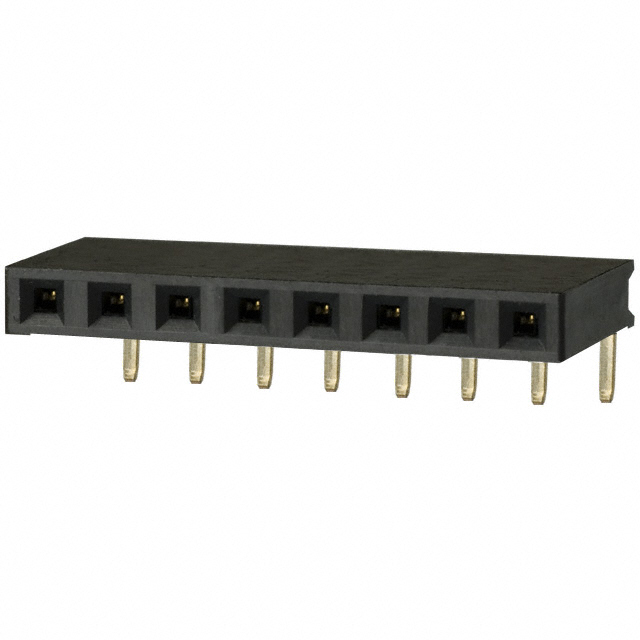

Sullins Connector Solutions PPPC081LGBN-RC	Phosphor Bronze	Flash	Square	Polyester	0.1 in	2.54 mm	8	Gold	Header	3 A	Right Angle Through Hole	250 V	0.1 "	2.54 mm	UL94 V-0	All	Gold			Black	Female Socket	Solder	Flash	Push-Pull	1	-40 C	105 ░C	0.124 in	3.15 mm
Sullins Connector Solutions PPPC081LFBN	Phosphor Bronze	Flash	Square	Polyester	0.335 "	8.51 mm	8	Gold	Header	3 A	Through Hole	250 V	0.1 "	2.54 mm	UL94 V-0	All	Gold	0.126 "	3.2 mm	Black	Female Socket	Solder	Flash	Push-Pull	1	-40 C	105 ░C
