DD12 Series

Catalog

AC POWER ENTRY MODULES DD12 PEM WITH FILTER 6A

Part	Filter Type	Termination	Termination	Termination	Panel Thickness	Panel Thickness	Material Flammability Rating	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Appliance Inlet	Switch Features	Connector Type	Voltage Rating - Appliance Inlet	Ingress Protection	Approval Agency	Fuse Holder, Drawer	Connector Style	Mounting Type	Current Rating - Filter	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]
SCHURTER Inc. 3-102-857	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	8 mm	0.315 in	UL94 V-0	Earth Line Choke Shielded V-Lock Notch	29.8 mm	49.3 mm	10 A	Switch On-Off	Receptacle Male Blades - Module	250 VAC	IP40	cURus ENEC	Drawer Sold Separate	IEC 320-C14	Flange Panel Mount
SCHURTER Inc. DD12.4111.111	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	8 mm	0.315 in	UL94 V-0	Earth Line Choke Shielded V-Lock Notch	29.8 mm	49.3 mm	10 A	Switch On-Off	Receptacle Male Blades - Module	250 VAC	IP40	cURus ENEC	Drawer Sold Separate	IEC 320-C14	Flange Panel Mount	4 A
SCHURTER Inc. 3-109-956	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	8 mm	0.315 in	UL94 V-0	Earth Line Choke Shielded V-Lock Notch	29.8 mm	49.3 mm	10 A	Switch On-Off	Receptacle Male Blades - Module	250 VAC	IP40	cURus ENEC	Drawer Sold Separate	IEC 320-C14	Flange Panel Mount

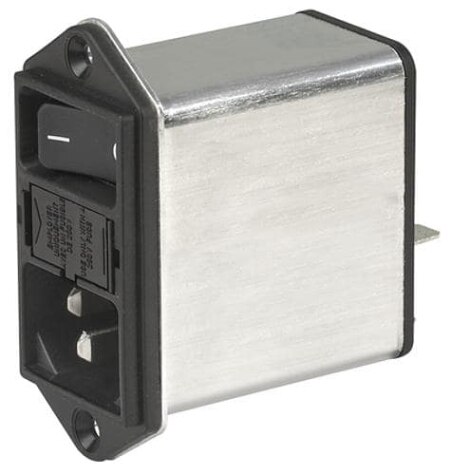

SCHURTER Inc. 3-109-957	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	8 mm	0.315 in	UL94 V-0	Earth Line Choke Shielded V-Lock Notch	29.8 mm	49.3 mm	10 A	Switch On-Off	Receptacle Male Blades - Module	250 VAC	IP40	cURus ENEC	Drawer Sold Separate	IEC 320-C14	Flange Panel Mount	4 A
SCHURTER Inc. DD12.8121.111	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	8 mm	0.315 in	UL94 V-0	Earth Line Choke Shielded V-Lock Notch	29.8 mm	49.3 mm	10 A	Switch On-Off	Receptacle Male Blades - Module	250 VAC	IP40	cURus ENEC	Drawer Sold Separate	IEC 320-C14	Flange Panel Mount	8 A
SCHURTER Inc. DD12.9111.111	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "	8 mm	0.315 in	UL94 V-0	Earth Line Choke Shielded V-Lock Notch	29.8 mm	49.3 mm	10 A	Switch On-Off	Receptacle Male Blades - Module	250 VAC	IP40	cURus ENEC	Drawer Sold Separate	IEC 320-C14	Flange Panel Mount	10 A
SCHURTER Inc. 3-107-473	Filtered (EMI RFI) - Commercial Medical	6.3 mm	Quick Connect	0.25 "			UL94 V-0	Earth Line Choke Shielded V-Lock Notch	29.8 mm	49.3 mm	10 A	Switch On-Off	Receptacle Male Blades - Module	250 VAC	IP40	cURus ENEC	Drawer Sold Separate	IEC 320-C14	Panel Mount Snap-In	2 A	0.118 in	3 mm	1 mm	0.039 in
