ADS5272 Series

Eight-Channel, 12-Bit, 65-MSPS Analog-to-Digital Converter (ADC)

Catalog

Eight-Channel, 12-Bit, 65-MSPS Analog-to-Digital Converter (ADC)

Part	Power (Typ) @ Conditions	Number of Bits	Number of A/D Converters	Data Interface	Sampling Rate (Per Second)	Input Range	Supplied Contents	Utilized IC / Part	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Input Type	Configuration	Features	Number of Inputs	Ratio - S/H:ADC	Package / Case	Reference Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Mounting Type	Architecture

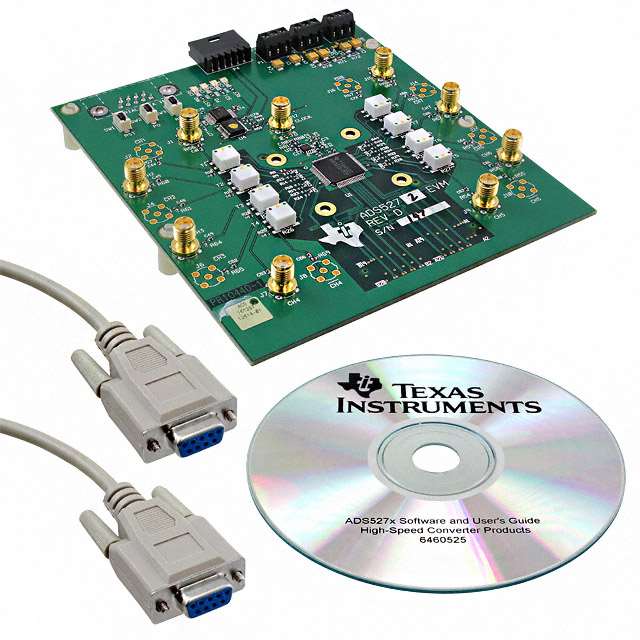

Texas Instruments ADS5272EVM	983 mS	12 bits	8	Serial	65 M	2.2 Vpp	Board(s) Cable(s)	ADS5272
Texas Instruments ADS5272IPFP		12 bits	8	LVDS - Serial	65 M				3.6 V	3 V	Differential	S/H-ADC	Simultaneous Sampling	8	1:1	80-TQFP Exposed Pad	External Internal	80-HTQFP (12x12)	85 °C	-40 °C	3.6 V	3 V	Surface Mount	Pipelined
Texas Instruments ADS5272IPFPT		12 bits	8	LVDS - Serial	65 M				3.6 V	3 V	Differential	S/H-ADC	Simultaneous Sampling	8	1:1	80-TQFP Exposed Pad	External Internal	80-HTQFP (12x12)	85 °C	-40 °C	3.6 V	3 V	Surface Mount	Pipelined

Catalog

Eight-Channel, 12-Bit, 65-MSPS Analog-to-Digital Converter (ADC)

Key Features

• Maximum Sample Rate: 65MSPS12-Bit ResolutionNo Missing CodesTotal Power Dissipation:Internal Reference: 983mWExternal Reference: 917mWCMOS TechnologySimultaneous Sample-and-Hold71.1dBFS SNR at 5MHz IF3.3V Digital/Analog SupplySerialized LVDS OutputsIntegrated Frame and Bit PatternsOption to Double LVDS Clock Output CurrentsFour Current Modes for LVDSPin- and Format-Compatible FamilyTQFP-80 PowerPAD PackageAPPLICATIONSPortable Ultrasound SystemsTape DrivesTest EquipmentOptical NetworkingPowerPAD Is a trademark of Texas Instruments.All other trademarks are the property of their respective ownersMaximum Sample Rate: 65MSPS12-Bit ResolutionNo Missing CodesTotal Power Dissipation:Internal Reference: 983mWExternal Reference: 917mWCMOS TechnologySimultaneous Sample-and-Hold71.1dBFS SNR at 5MHz IF3.3V Digital/Analog SupplySerialized LVDS OutputsIntegrated Frame and Bit PatternsOption to Double LVDS Clock Output CurrentsFour Current Modes for LVDSPin- and Format-Compatible FamilyTQFP-80 PowerPAD PackageAPPLICATIONSPortable Ultrasound SystemsTape DrivesTest EquipmentOptical NetworkingPowerPAD Is a trademark of Texas Instruments.All other trademarks are the property of their respective owners

Description

The ADS5272 is a high-performance, 65MSPS, 8-channel analog-to-digital converter (ADC). Internal references are provided, simplifying system design requirements. Low power consumption allows for the highest of system integration densities. Serial LVDS (low-voltage differential signaling) outputs reduce the number of interface lines and package size. An integrated phase lock loop (PLL) multiplies the incoming ADC sampling clock by a factor of 12. This high-frequency LVDS clock is used in the data serialization and transmission process. The word output of each internal ADC is serialized and transmitted either MSB or LSB first. In addition to the eight data outputs, a bit clock and a word clock are also transmitted. The bit clock is at 6x the speed of the sampling clock, whereas the word clock is at the same speed of the sampling clock. The ADS5272 provides internal references, or can optionally be driven with external references. Best performance is achieved through the internal reference mode. The device is available in a TQFP-80 PowerPAD package and is specified over a -40°C to +85°C operating range. The ADS5272 is a high-performance, 65MSPS, 8-channel analog-to-digital converter (ADC). Internal references are provided, simplifying system design requirements. Low power consumption allows for the highest of system integration densities. Serial LVDS (low-voltage differential signaling) outputs reduce the number of interface lines and package size. An integrated phase lock loop (PLL) multiplies the incoming ADC sampling clock by a factor of 12. This high-frequency LVDS clock is used in the data serialization and transmission process. The word output of each internal ADC is serialized and transmitted either MSB or LSB first. In addition to the eight data outputs, a bit clock and a word clock are also transmitted. The bit clock is at 6x the speed of the sampling clock, whereas the word clock is at the same speed of the sampling clock. The ADS5272 provides internal references, or can optionally be driven with external references. Best performance is achieved through the internal reference mode. The device is available in a TQFP-80 PowerPAD package and is specified over a -40°C to +85°C operating range.
