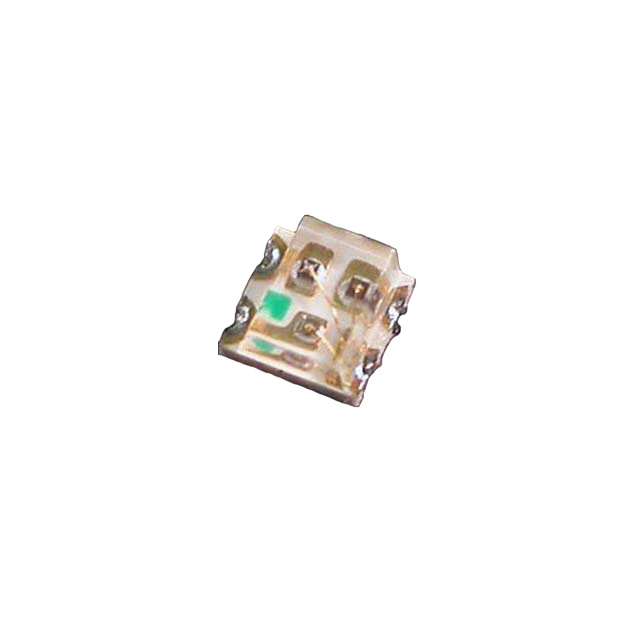

APTF1616 Series

Catalog

LED GREEN/RED/YELLOW CLEAR 4SMD

Part	Lens Size [y]	Lens Size [x]	Lens Transparency	Lens Style	Current - Test	Height (Max) [Max] [z]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Mounting Type	Supplier Device Package	Package / Case	Color	Lens Color	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Configuration	Viewing Angle	Wavelength - Peak	Millicandela Rating [custom]	Current - Test	Wavelength - Peak [custom]	Wavelength - Dominant	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]
Kingbright APTF1616SURKCGKSYKC	1.6 mm	1.1 mm	Clear	Rectangle with Flat Top	20 mA 20 mA 20 mA	0.9 mm	570 nm 590 nm 630 nm	1.95 V 2 V 2.1 V	Surface Mount	4-SMD	4-SMD No Lead	Green Red Yellow	Colorless	590 nm	650 nm	574 nm	1.6 mm	1.6 mm	250 mcd	120 mcd	55 mcd	Common Anode	120 °
Kingbright APTF1616SEEVGAPBAC	1.6 mm	1.2 mm	Clear	Rectangle with Flat Top		0.9 mm	470 nm 525 nm 621 nm	2 V 3.2 V 3.2 V	Surface Mount	4-SMD	0606 (1616 Metric)	Blue Green Red	Colorless				1.6 mm	1.6 mm	400 mcd		180 mcd	Common Anode	120 °	468 nm 520 nm 630 nm	40 mcd	20mA Blue 20mA Green 20mA Red
Kingbright APTF1616QBDSURKCGKC	1.25 mm	1.2 mm	Clear	Rectangle with Flat Top		0.9 mm	470 nm 570 nm 630 nm	1.95 V 2.1 V 3.3 V	Surface Mount	4-SMD	0606 (1616 Metric)	Blue Green Red	Colorless		650 nm	574 nm	1.6 mm	1.6 mm	250 mcd		55 mcd	Common Anode	120 °		80 mcd	20mA Blue 20mA Green 20mA Red	468 nm
Kingbright APTF1616SEKJ3ZGKQBKC	1.6 mm	1.2 mm	Clear	Rectangle with Flat Top		0.9 mm		2.2 V 3.3 V 3.3 V	Surface Mount	4-SMD	0606 (1616 Metric)	Blue Green Red	Colorless				1.6 mm	1.6 mm	350 mcd		300 mcd	Common Cathode	120 °	460 nm 515 nm 640 nm	70 mcd	20mA Blue 20mA Green 20mA Red		465nm Blue 525nm Green 625nm Red
Kingbright APTF1616SEEZGKQBKC	1.6 mm	1.2 mm	Clear	Rectangle with Flat Top		0.9 mm	465 nm 525 nm 621 nm	2 V 3.3 V 3.3 V	Surface Mount	4-SMD	0606 (1616 Metric)	Blue Green Red	Colorless				1.6 mm	1.6 mm	110 mcd		280 mcd	Common Anode	120 °	460 nm 515 nm 630 nm	70 mcd	20mA Blue 20mA Green 20mA Red
Kingbright APTF1616SEJ3ZGGVBDC	1.6 mm	1.2 mm	Clear	Rectangle with Flat Top		0.9 mm		2.2 V 3.2 V 3.3 V	Surface Mount	4-SMD	0606 (1616 Metric)	Blue Green Red	Colorless		640 nm	520 nm	1.6 mm	1.6 mm	360 mcd		750 mcd	Common Cathode	120 °		140 mcd	20mA Blue 20mA Green 20mA Red	465 nm	470nm Blue 525nm Green 625nm Red
Kingbright APTF1616SEEZGQBDC	1.6 mm	1.2 mm	Clear	Rectangle with Flat Top		0.9 mm	465 nm 525 nm 621 nm	2 V 3.3 V 3.3 V	Surface Mount	4-SMD	0606 (1616 Metric)	Blue Green Red	Colorless				1.6 mm	1.6 mm	110 mcd		280 mcd	Common Anode	120 °	460 nm 515 nm 630 nm	70 mcd	20mA Blue 20mA Green 20mA Red

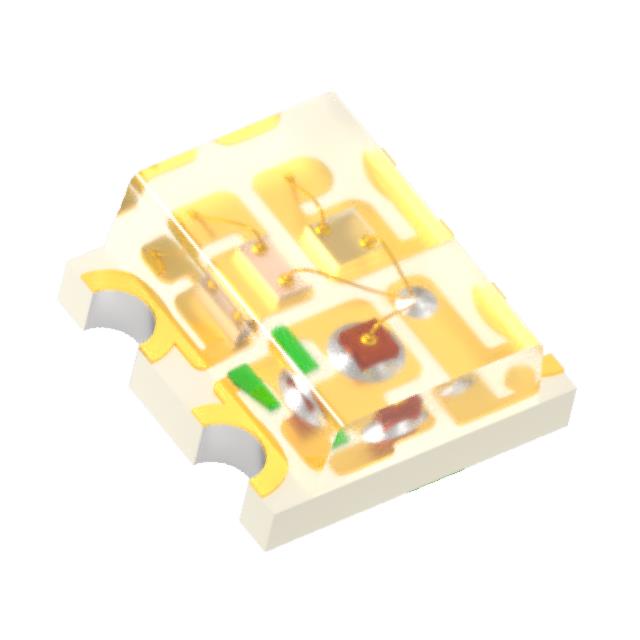

Kingbright APTF1616LSEKJ3ZGKQBC	1.6 mm	1.2 mm	Clear	Rectangle with Flat Top		0.9 mm		1.8 V 2.7 V 2.7 V	Surface Mount	4-SMD	0606 (1616 Metric)	Blue Green Red	Colorless				1.6 mm	1.6 mm	40 mcd		50 mcd	Common Cathode	120 °	460 nm 515 nm 640 nm	14 mcd			465nm Blue 525nm Green 625nm Red	2 mA	2 mA	2 mA
Kingbright APTF1616LSEEZGKQBKC	1.6 mm	1.2 mm	Clear	Rectangle with Flat Top		0.9 mm	465 nm 525 nm 621 nm	1.8 V 2.7 V 2.7 V	Surface Mount	4-SMD	0606 (1616 Metric)	Blue Green Red	Colorless				1.6 mm	1.6 mm				Common Anode	120 °	460 nm 515 nm 630 nm					2 mA	2 mA	2 mA
