858-008 Series
Manufacturer: NorComp Inc.
Beta
⌘K

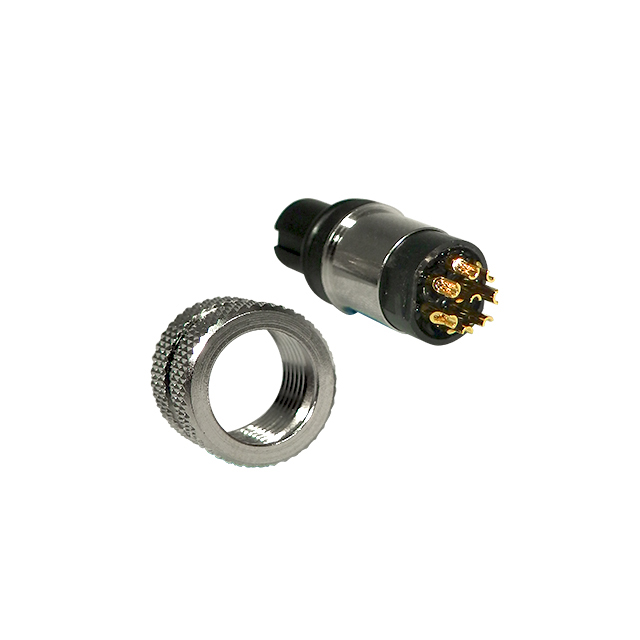

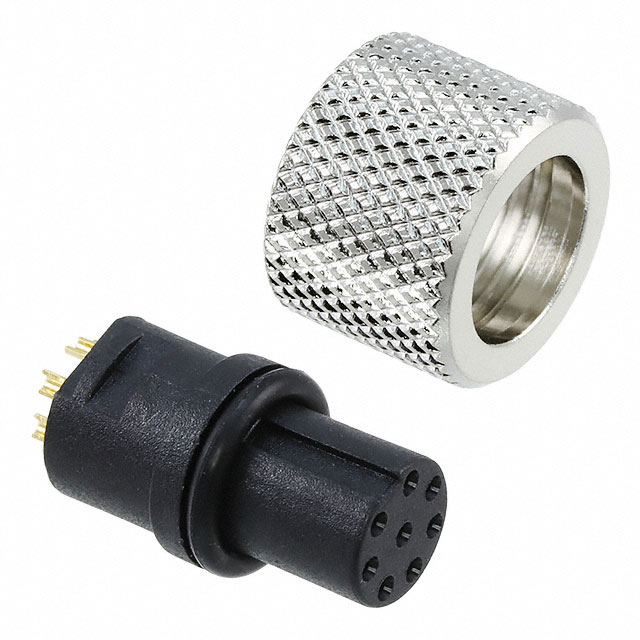

CONN PLUG FMALE 8P GOLD SLDR CUP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Insert Material | Applications | Orientation | Ingress Protection | Color | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Primary Material | Shell Finish | Voltage Rating | Shielding | Current Rating (Amps) | Material Flammability Rating | Mounting Type | Shell Material | Shell Size - Insert | Features | Contact Finish - Mating | Connector Type | Contact Finish Thickness - Mating | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 0.25 µm | 10 µin | Brass | Polybutylene Terephthalate (PBT) | Industrial Medical | A | IP67 - Dust Tight Waterproof | Black Silver | Threaded | 85 °C | -40 C | 8 | Metal | Nickel | 30 VDC | Shielded | 2 A | UL94 V-0 | Free Hanging (In-Line) | Brass | M12-8 | Coupling Nut | Gold | Plug Female Sockets | ||
NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | Industrial Medical | A | IP67 - Dust Tight Waterproof | Black Silver | Threaded | 85 °C | -40 C | 8 | Metal | Nickel | 30 VDC | Shielded | 2 A | UL94 V-0 | Free Hanging (In-Line) | Brass | M12-8 | Coupling Nut | Gold | Plug Female Sockets | Flash | |||
NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | Industrial Medical | A | IP67 - Dust Tight Waterproof | Silver | Threaded | 85 °C | -40 C | 8 | Metal | Nickel | 30 VDC | 2 A | UL94 V-0 | Free Hanging (In-Line) | Aluminum Alloy | M12-8 | Backshell Strain Relief | Gold | Receptacle Male Pins | Flash | Aluminum Alloy Nickel | |||
 NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | Industrial Medical | A | IP67 - Dust Tight Waterproof | Black Silver | Threaded | 85 °C | -40 C | 8 | Metal | Nickel | 30 VDC | Unshielded | 2 A | UL94 V-0 | Free Hanging (In-Line) | Brass | M12-8 | Coupling Nut | Gold | Plug Female Sockets | Flash |
