ANM125 Series
Manufacturer: OptiFuse
Beta
⌘K
FUSE AUTO 15A 125VDC BLADE MINI
| Part | Fuse Type | Current Rating (Amps) | Response Time | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Color | Voltage Rating - DC | Breaking Capacity @ Rated Voltage | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

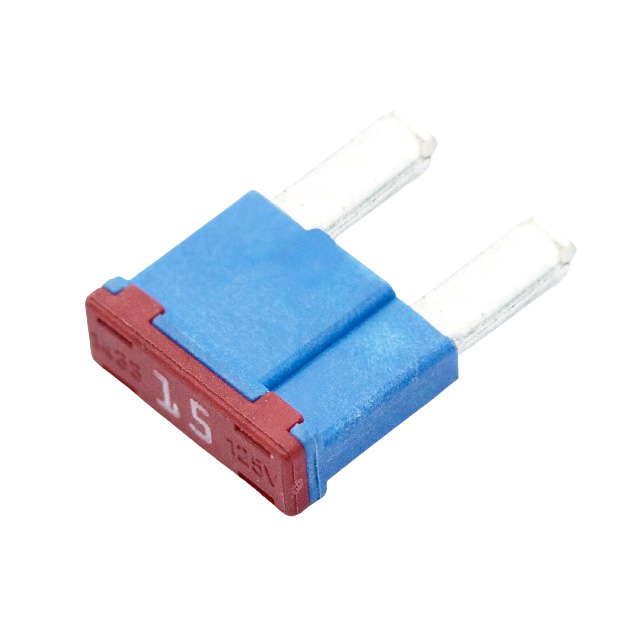

 OptiFuse | Automotive | 15 A | Fast Blow | 0.354 in | 9 mm | 11.8 mm | 0.157 " | 4 mm | 0.465 in | Blue | 125 VDC | 1 kA | Requires Holder | Blade Miniature |
 OptiFuse | Automotive | 5 A | Fast Blow | 0.354 in | 9 mm | 11.8 mm | 0.157 " | 4 mm | 0.465 in | Tan | 125 VDC | 1 kA | Requires Holder | Blade Miniature |

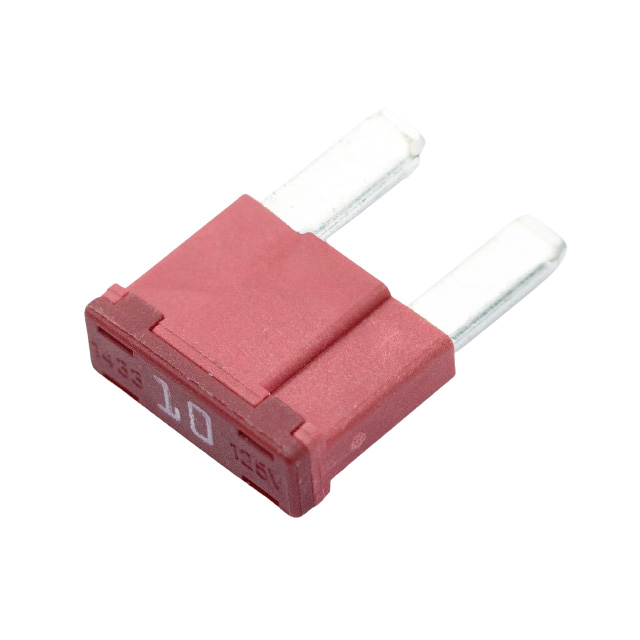

 OptiFuse | Automotive | 10 A | Fast Blow | 0.354 in | 9 mm | 11.8 mm | 0.157 " | 4 mm | 0.465 in | Red | 125 VDC | 1 kA | Requires Holder | Blade Miniature |
