JWL11R Series
Manufacturer: NKK Switches
Beta
⌘K

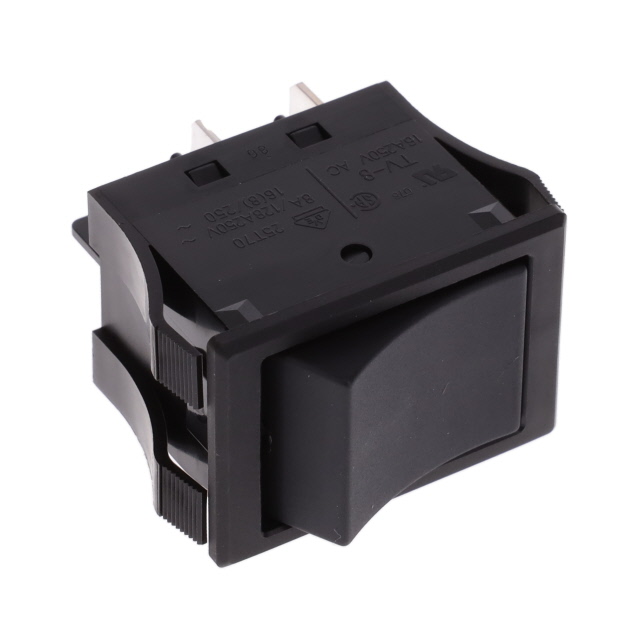

ROCKER SWITCH, ON-NONE-OFF, SPST, NON ILLUMINATED, PANEL MOUNT, BLACK, JW SERIES
| Part | Mechanical Life | Electrical Life | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Mounting Type | Current Rating (Amps) | Circuit | Switch Function | Features | Color - Actuator/Cap | Actuator Type | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Approval Agency | Termination Style | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

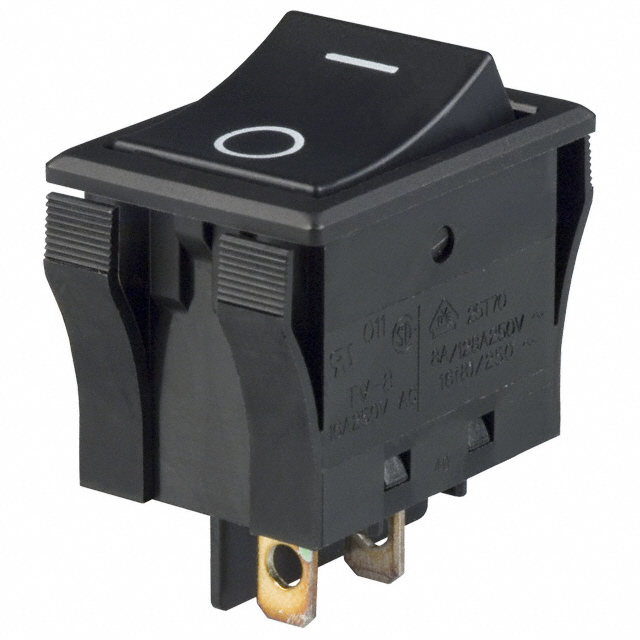

 NKK Switches | 25000 Steps | 25000 Steps | Dust Proof | -25 °C | 70 °C | O I | Panel Mount Snap-In | 16 A | SPST | On-Off | Epoxy Sealed Terminals | Black | Concave (Curved) | 125 V | 20.5 mm | 29.5 mm | CSA UL VDE | 4.7 mm | 0.187 in | Solder Quick Connect |
 NKK Switches | 25000 Steps | 25000 Steps | Dust Proof | -25 °C | 70 °C | No Marking | Panel Mount Snap-In | 16 A | SPST | On-Off | Epoxy Sealed Terminals | Concave (Curved) | 125 V | 20.5 mm | 29.5 mm | CSA UL VDE | 4.7 mm | 0.187 in | Solder Quick Connect | |

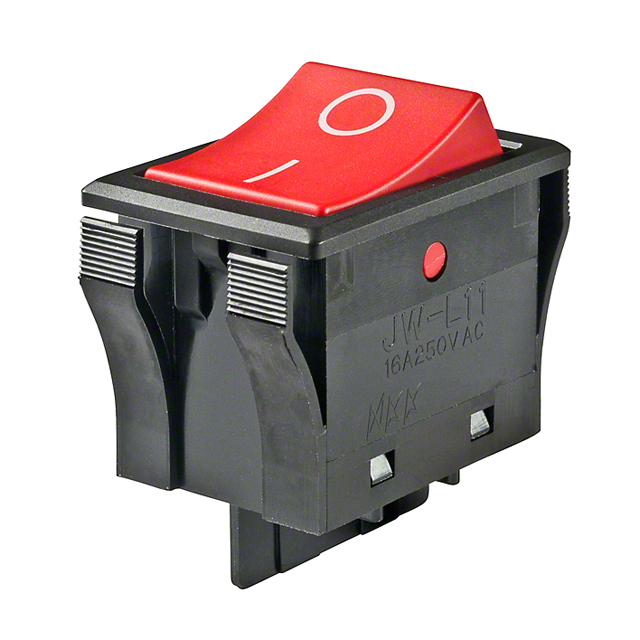

 NKK Switches | 25000 Steps | 25000 Steps | Dust Proof | -25 °C | 70 °C | O - | Panel Mount Snap-In | 16 A | SPST | On-Off | Epoxy Sealed Terminals | Red | Concave (Curved) | 125 V | 20.5 mm | 29.5 mm | CSA UL VDE | 4.7 mm | 0.187 in | Solder Quick Connect |

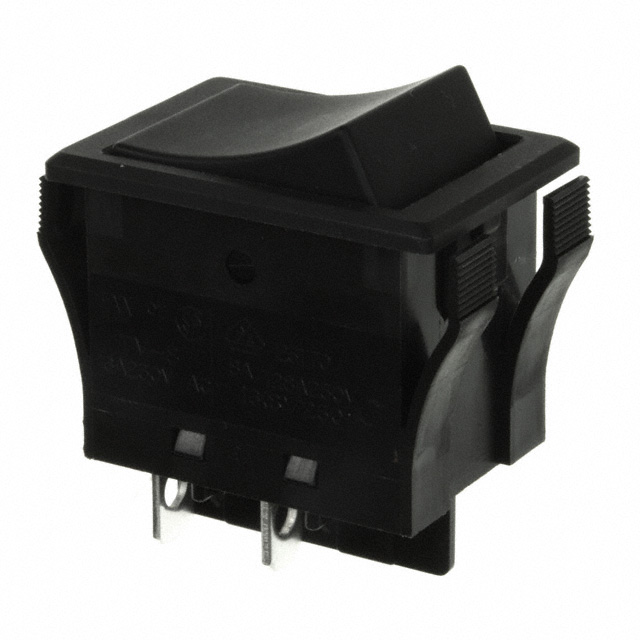

 NKK Switches | 25000 Steps | 25000 Steps | Dust Proof | -25 °C | 70 °C | No Marking | Panel Mount Snap-In | 16 A | SPST | On-Off | Epoxy Sealed Terminals | Black | Concave (Curved) | 125 V | 20.5 mm | 29.5 mm | CSA UL VDE | 4.7 mm | 0.187 in | Solder Quick Connect |
 NKK Switches | 25000 Steps | 25000 Steps | Dust Proof | -25 °C | 70 °C | No Marking | Panel Mount Snap-In | 16 A | SPST | On-Off | Epoxy Sealed Terminals | Black | Concave (Curved) | 125 V | 20.5 mm | 29.5 mm | CSA UL VDE | 4.7 mm | 0.187 in | Solder Quick Connect |
 NKK Switches | 25000 Steps | 25000 Steps | Dust Proof | -25 °C | 70 °C | No Marking | Panel Mount Snap-In | 16 A | SPST | On-Off | Red | Concave (Curved) | 125 V | 20.5 mm | 29.5 mm | CSA UL VDE | 4.7 mm | 0.187 in | Solder Quick Connect | |

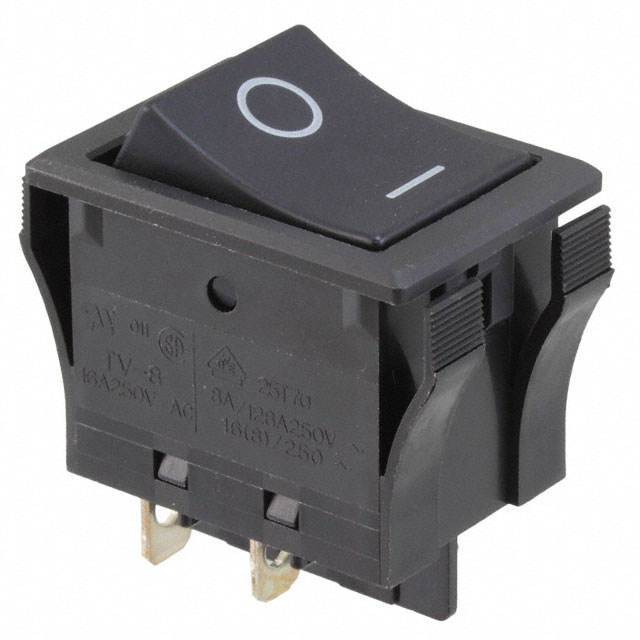

 NKK Switches | 25000 Steps | 25000 Steps | Dust Proof | -25 °C | 70 °C | O I | Panel Mount Snap-In | 16 A | SPST | On-Off | Epoxy Sealed Terminals | Black | Concave (Curved) | 125 V | 20.5 mm | 29.5 mm | CSA UL VDE | 4.7 mm | 0.187 in | Solder Quick Connect |

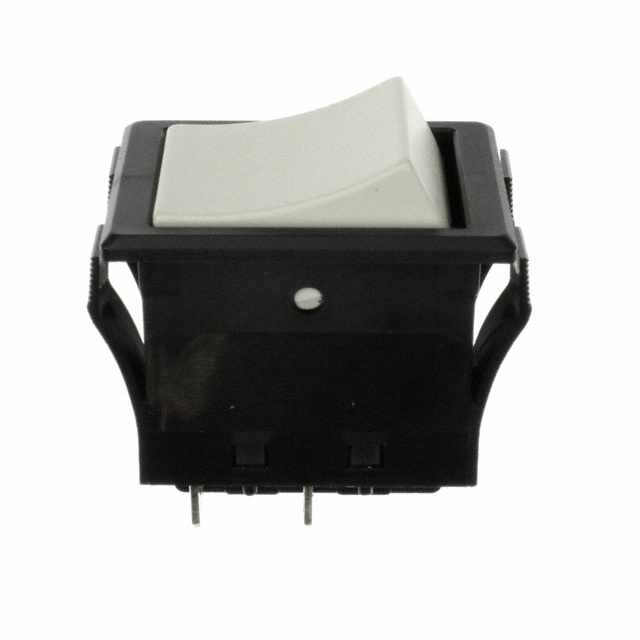

 NKK Switches | 25000 Steps | 25000 Steps | Dust Proof | -25 °C | 70 °C | No Marking | Panel Mount Snap-In | 16 A | SPST | On-Off | Epoxy Sealed Terminals | Ivory | Concave (Curved) | 125 V | 20.5 mm | 29.5 mm | CSA UL VDE | 4.7 mm | 0.187 in | Solder Quick Connect |

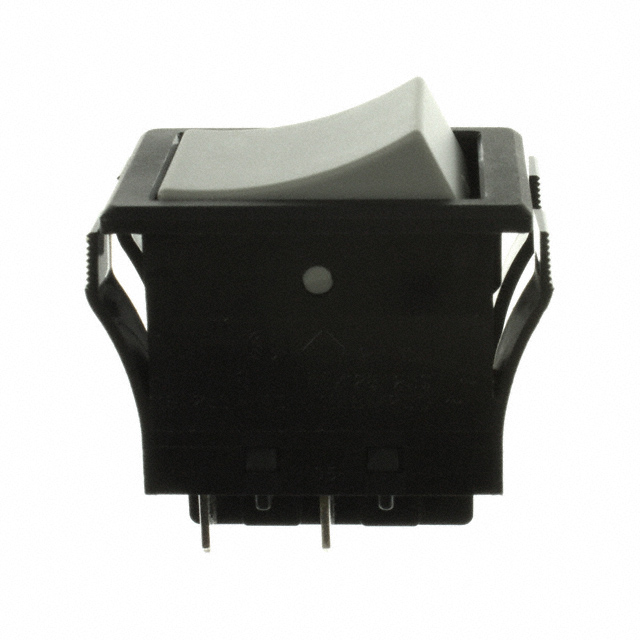

 NKK Switches | 25000 Steps | 25000 Steps | Dust Proof | -25 °C | 70 °C | No Marking | Panel Mount Snap-In | 16 A | SPST | On-Off | Epoxy Sealed Terminals | Ivory | Concave (Curved) | 125 V | 20.5 mm | 29.5 mm | CSA UL VDE | 4.7 mm | 0.187 in | Solder Quick Connect |
NKK Switches | 25000 Steps | 25000 Steps | Dust Proof | -25 °C | 70 °C | O I | Panel Mount Snap-In | 16 A | SPST | On-Off | Epoxy Sealed Terminals | Red | Concave (Curved) | 125 V | 20.5 mm | 29.5 mm | CSA UL VDE | 4.7 mm | 0.187 in | Solder Quick Connect |
