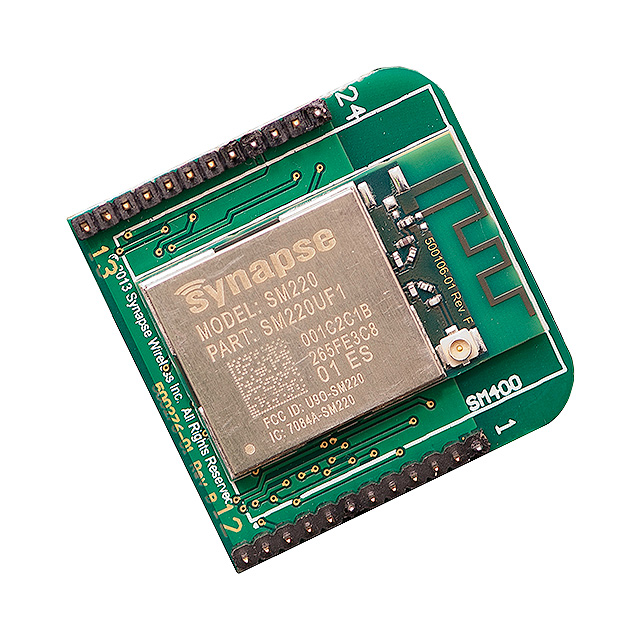

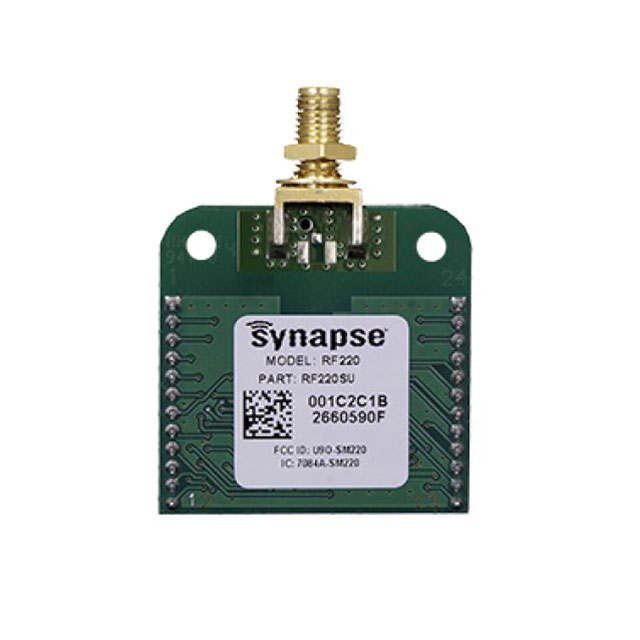

RF220 Series
Manufacturer: Synapse Wireless
Beta
⌘K
RF TXRX MOD ISM>1GHZ RP-SMA SMD
| Part | Sensitivity | Mounting Type | Package / Case | Memory Type | Memory Size | Memory Size (Flash) | Antenna Type | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Current - Receiving (Max) | Current - Receiving (Min) | Data Rate | Current - Transmitting (Max) | Current - Transmitting (Min) | Serial Interfaces | RF Family/Standard | Power - Output | Modulation | Frequency | Current - Receiving | Current - Transmitting | Memory Size (RAM) | Memory Size (SRAM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Synapse Wireless | -103 dBm | Surface Mount | Module | EEPROM Flash | 4 kB | 128 kB | Antenna Not Included RP-SMA U.FL | -40 °C | 85 °C | 3.6 V | 2 V | 22 mA | 7.8 mA | 2 Mbps | 150 mA | 55 mA | UART | General ISM > 1GHz | 20 dBm | DSSS O-QPSK | 2.4 GHz | ||||
 Synapse Wireless | -103 dBm | Through Hole | 24-DIP Module | Flash RAM | 128 kB | Chip + U.FL Integrated | -40 °C | 85 °C | 3.6 V | 2 V | 2 Mbps | SPI UART | 802.15.4 | 20 dBm | 2.4 GHz | 22 mA | 150 mA | 58 kB | 58 kB | ||||||
 Synapse Wireless | -103 dBm | Through Hole | 24-DIP Module | EEPROM Flash | 4 kB | 128 kB | Antenna Not Included U.FL | -40 °C | 85 °C | 3.6 V | 2 V | 2 Mbps | I2C SPI UART | 802.15.4 | 20 dBm | DSSS O-QPSK | 2.4 GHz | 22 mA | 150 mA |
