UCC24630 Series
Manufacturer: Texas Instruments
Beta
⌘K

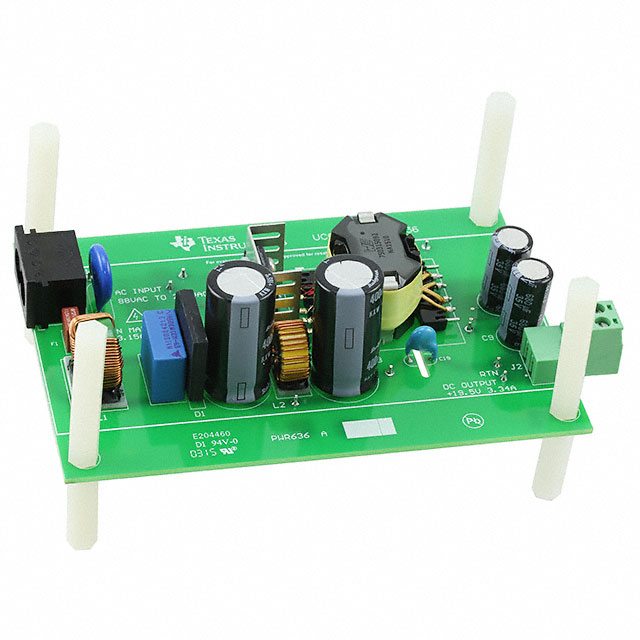

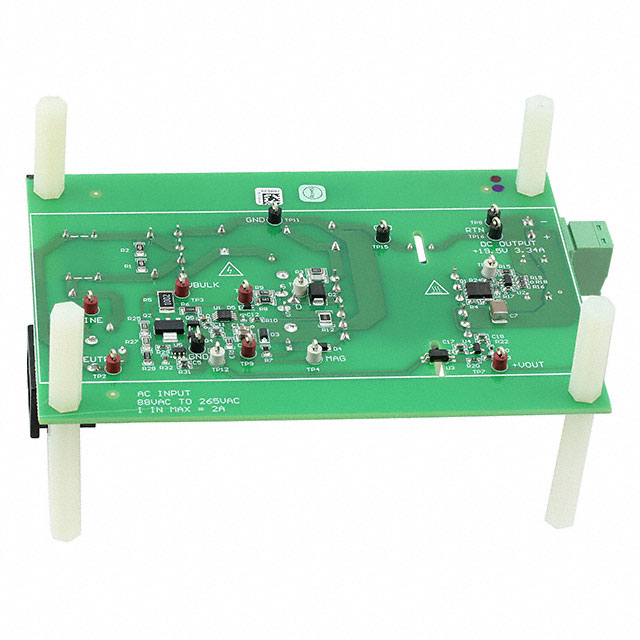

EVALUATION MODULE UCC24630
| Part | Board Type | Outputs and Type | Outputs and Type | Supplied Contents | Voltage - Output | Utilized IC / Part | Current - Output | Regulator Topology | Contents | Main Purpose | Voltage - Input [Max] | Voltage - Input [Min] | Power - Output | Supplier Device Package | Applications | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Fully Populated | 1 Isolated Output Isolated | 1 | Board(s) | 19.5 V | UCC24630 | 3.33 A | Flyback | Board(s) | AC/DC Primary and Secondary Side | 265 VAC | 90 VAC | 65 W | |||||||||
 Texas Instruments | SOT-23-6 | Secondary-Side Controller | 28 V | 3.6 V | SOT-23-6 | 125 °C | -40 C | 900 µA | Surface Mount | |||||||||||||
Texas Instruments | SOT-23-6 | Secondary-Side Controller | 28 V | 3.6 V | SOT-23-6 | 125 °C | -40 C | 900 µA | Surface Mount |
