M2013TN Series

Catalog

SWITCH ROCKER SPDT 6A 125V

Part	Mechanical Life	Electrical Life	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Features	Approval Agency	Mounting Type	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - DC	Color - Actuator/Cap	Actuator Marking	Termination Style
NKK Switches M2013TNW01-DA	50000 Cycles	25000 Steps	On-Off-On	3 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	Flange Panel Mount	Concave	85 °C	-30 ░C	SPDT	10.1 mm	17.8 mm	30 V	Black	No Marking	Solder Lug

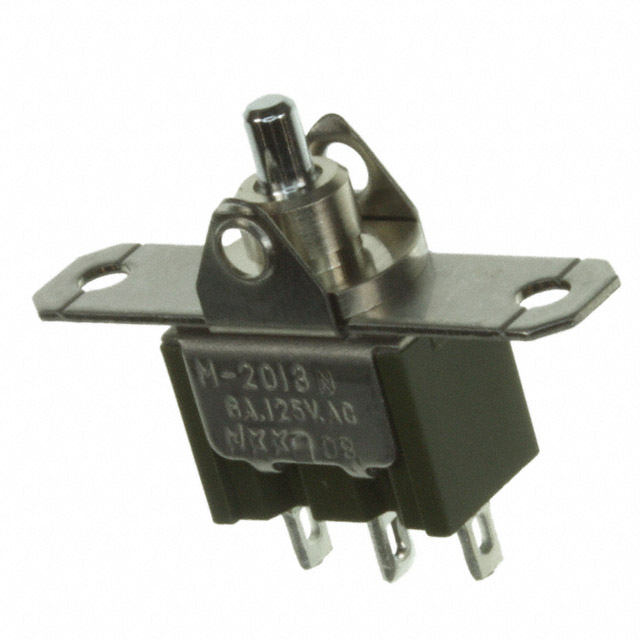

NKK Switches M2013TNW01	50000 Cycles	25000 Steps	On-Off-On	3 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	Flange Panel Mount	Actuator Arm Cap Required	85 °C	-30 ░C	SPDT			30 V		Varies by Cap	Solder Lug

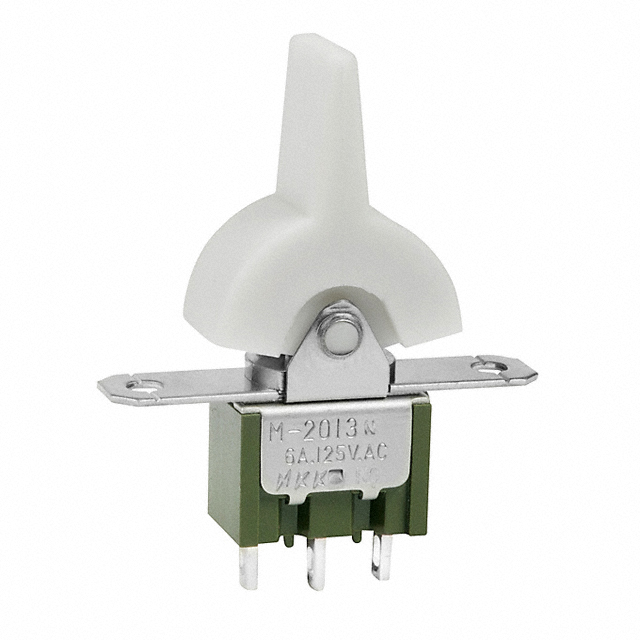

NKK Switches M2013TNW01-EB	50000 Cycles	25000 Steps	On-Off-On	3 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	Flange Panel Mount	Paddle	85 °C	-30 ░C	SPDT	10.1 mm	17.8 mm	30 V	White	No Marking	Solder Lug
NKK Switches M2013TNW03	50000 Cycles	25000 Steps	On-Off-On	3 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	Flange Panel Mount	Actuator Arm Cap Required	85 °C	-30 ░C	SPDT			30 V		Varies by Cap	PC Pin

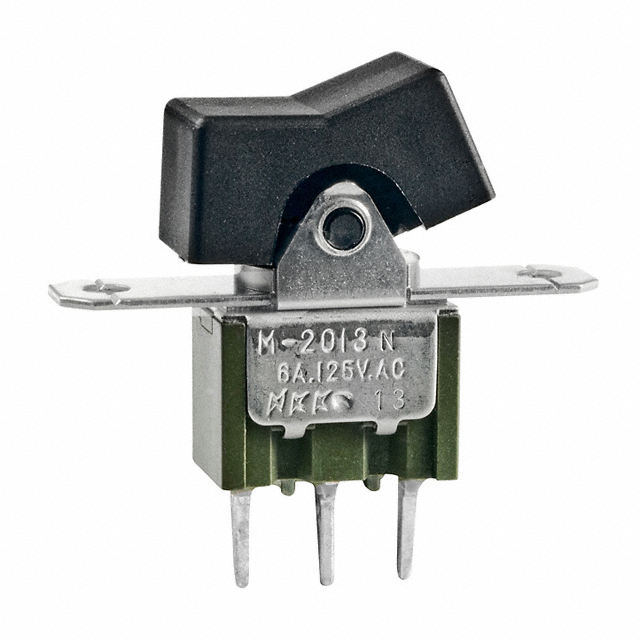

NKK Switches M2013TNW03-DA	50000 Cycles	25000 Steps	On-Off-On	3 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	Flange Panel Mount	Concave	85 °C	-30 ░C	SPDT	10.1 mm	17.8 mm	30 V	Black	No Marking	PC Pin
NKK Switches M2013TNW01-EA	50000 Cycles	25000 Steps	On-Off-On	3 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	Flange Panel Mount	Paddle	85 °C	-30 ░C	SPDT	10.1 mm	17.8 mm	30 V	Black	No Marking	Solder Lug

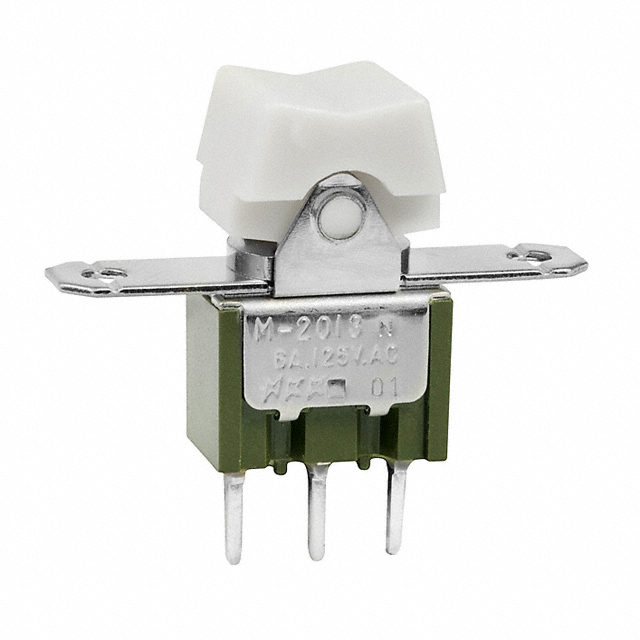

NKK Switches M2013TNW03-FB	50000 Cycles	25000 Steps	On-Off-On	3 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	Flange Panel Mount	Concave	85 °C	-30 ░C	SPDT	12.4 mm	0.5 in	30 V	White	No Marking	PC Pin
NKK Switches M2013TNW01-FA	50000 Cycles	25000 Steps	On-Off-On	3 A 6 A	125 V	Epoxy Sealed Terminals	CSA UL	Flange Panel Mount	Concave	85 °C	-30 ░C	SPDT	12.4 mm	0.5 in	30 V	Black	No Marking	Solder Lug
