ED104 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 2POS SIDE ENTRY 5MM PCB
| Part | Torque - Screw | Torque - Screw | Contact Material - Plating | Clamp Material - Plating [custom] | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Wire Gauge [Min] | Wire Gauge [Max] | Mating Orientation | Color | Mounting Type | Voltage | Wire Termination | Number of Levels | Current | Positions Per Level | Pitch | Pitch | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

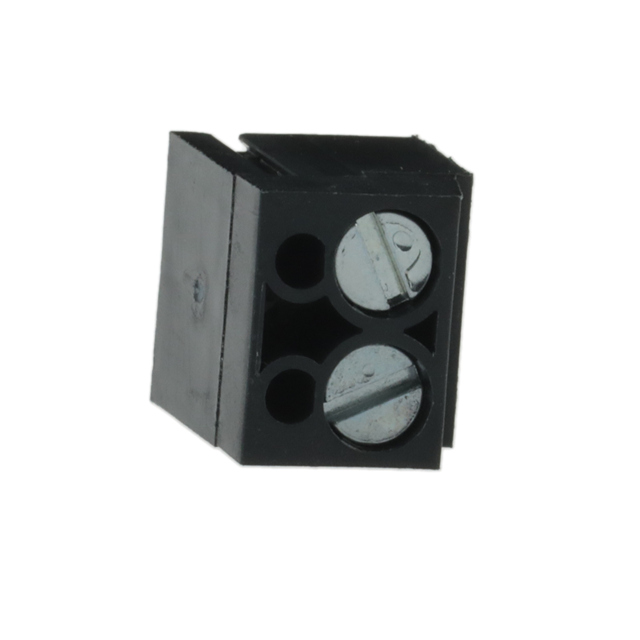

 On Shore Technology Inc. | 0.8 Nm | 7.1 Lb-In | Brass | Stainless Steel | Polyamide (PA) Nylon | -30 ░C | 105 ░C | M3 | 14 AWG | 22 AWG | Horizontal with Board | Gray | Through Hole | 300 VDC | Screw - Leaf Spring Wire Guard | 1 | 15 A | 2 | 0.197 in | 5 mm | |

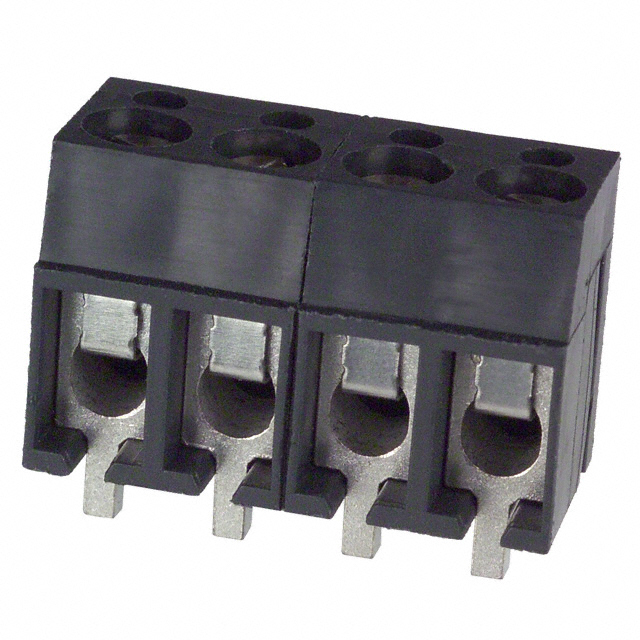

 On Shore Technology Inc. | 0.8 Nm | 7.1 Lb-In | Brass | Stainless Steel | Polyamide (PA) Nylon | -30 ░C | 105 ░C | M3 | 14 AWG | 22 AWG | Horizontal with Board | Gray | Through Hole | 300 VDC | Screw - Leaf Spring Wire Guard | 1 | 15 A | 4 | 0.197 in | 5 mm | |

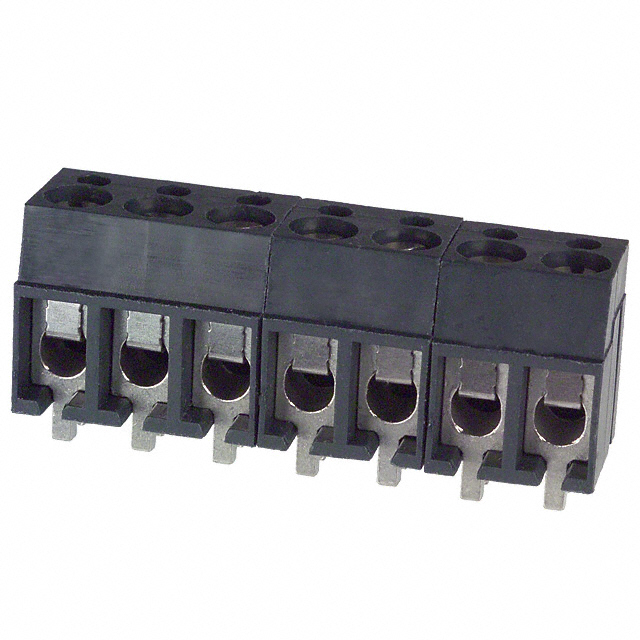

 On Shore Technology Inc. | 0.8 Nm | 7.1 Lb-In | Brass | Stainless Steel | Polyamide (PA) Nylon | -30 ░C | 105 ░C | M3 | 14 AWG | 22 AWG | Horizontal with Board | Gray | Through Hole | 300 VDC | Screw - Leaf Spring Wire Guard | 1 | 15 A | 0.197 in | 5 mm | 7 | |

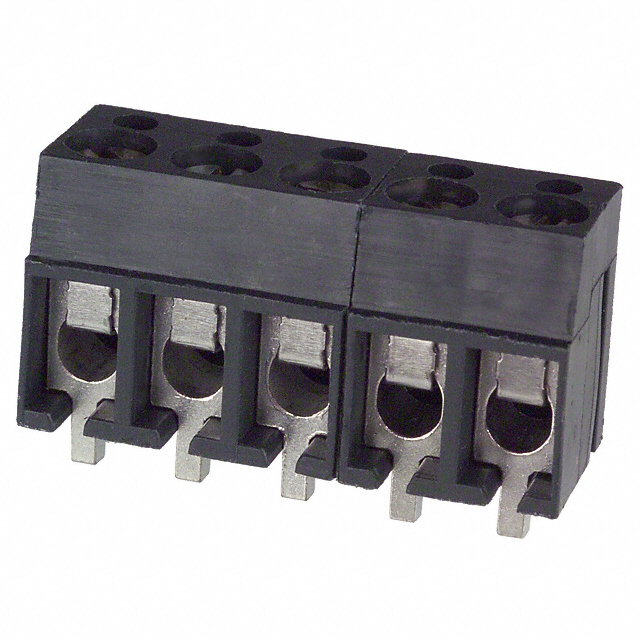

 On Shore Technology Inc. | 0.8 Nm | 7.1 Lb-In | Brass | Stainless Steel | Polyamide (PA) Nylon | -30 ░C | 105 ░C | M3 | 14 AWG | 22 AWG | Horizontal with Board | Gray | Through Hole | 300 VDC | Screw - Leaf Spring Wire Guard | 1 | 15 A | 5 | 0.197 in | 5 mm | |

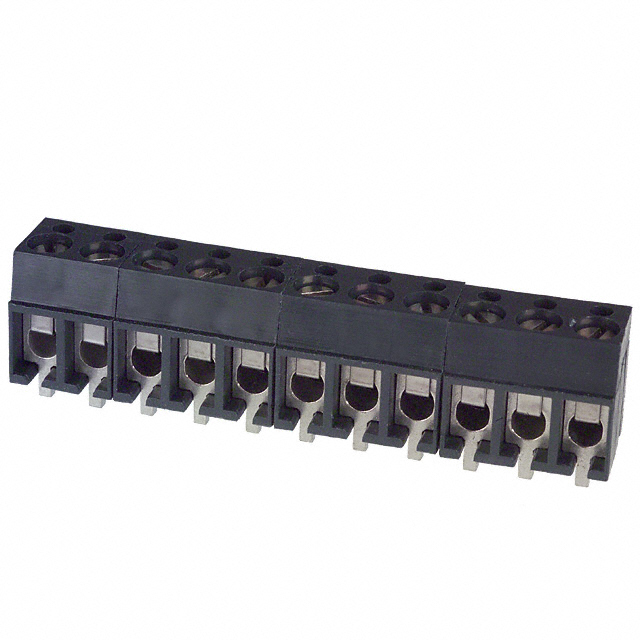

 On Shore Technology Inc. | 0.8 Nm | 7.1 Lb-In | Brass | Stainless Steel | Polyamide (PA) Nylon | -30 ░C | 105 ░C | M3 | 14 AWG | 22 AWG | Horizontal with Board | Gray | Through Hole | 300 VDC | Screw - Leaf Spring Wire Guard | 1 | 15 A | 11 | 0.197 in | 5 mm | |

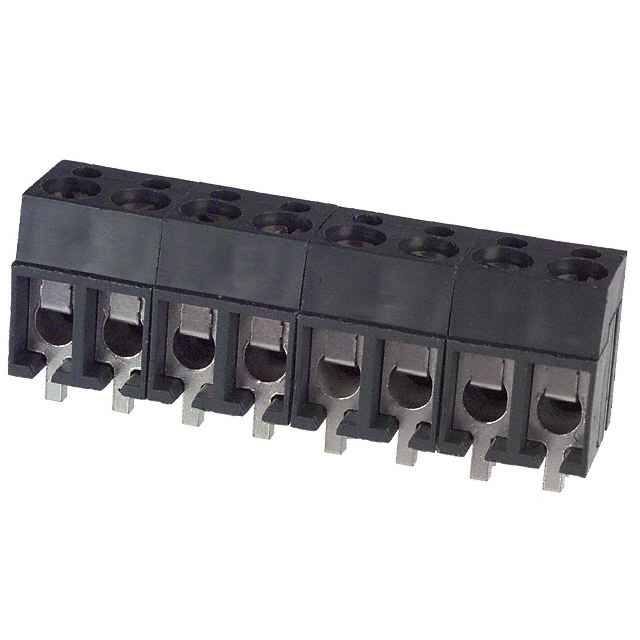

 On Shore Technology Inc. | 0.8 Nm | 7.1 Lb-In | Brass | Stainless Steel | Polyamide (PA) Nylon | -30 ░C | 105 ░C | M3 | 14 AWG | 22 AWG | Horizontal with Board | Gray | Through Hole | 300 VDC | Screw - Leaf Spring Wire Guard | 1 | 15 A | 8 | 0.197 in | 5 mm | |

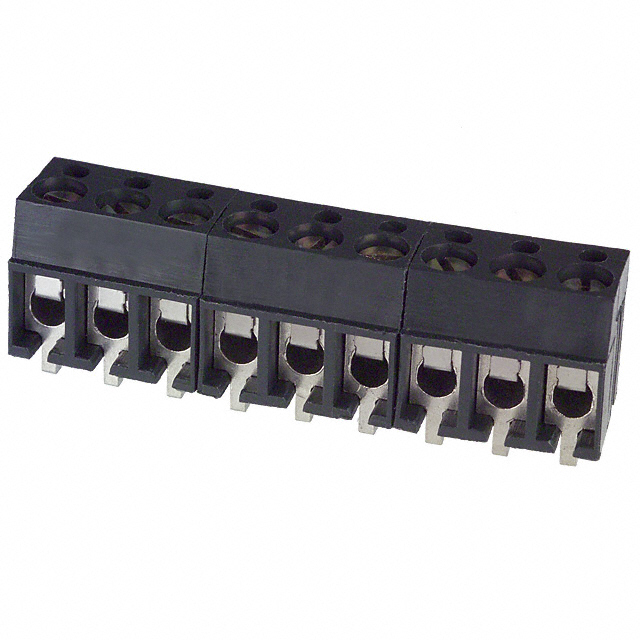

 On Shore Technology Inc. | 0.8 Nm | 7.1 Lb-In | Brass | Stainless Steel | Polyamide (PA) Nylon | -30 ░C | 105 ░C | M3 | 14 AWG | 22 AWG | Horizontal with Board | Gray | Through Hole | 300 VDC | Screw - Leaf Spring Wire Guard | 1 | 15 A | 9 | 0.197 in | 5 mm | |

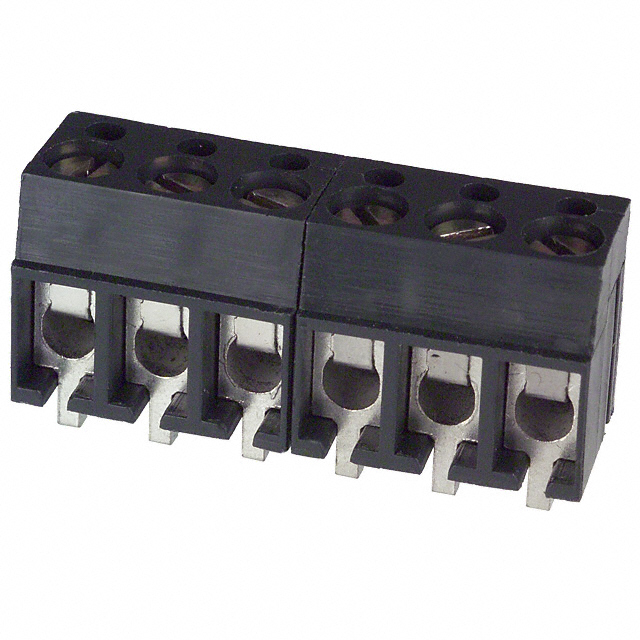

 On Shore Technology Inc. | 0.8 Nm | 7.1 Lb-In | Brass | Stainless Steel | Polyamide (PA) Nylon | -30 ░C | 105 ░C | M3 | 14 AWG | 22 AWG | Horizontal with Board | Gray | Through Hole | 300 VDC | Screw - Leaf Spring Wire Guard | 1 | 15 A | 6 | 0.197 in | 5 mm | |

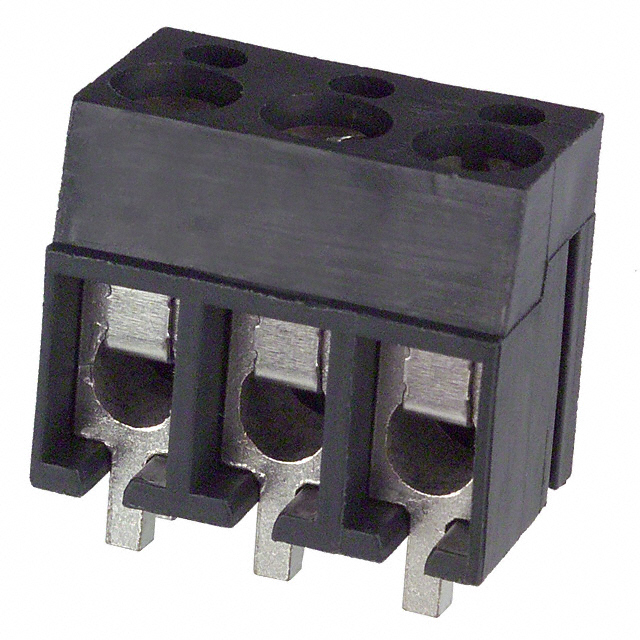

 On Shore Technology Inc. | 0.8 Nm | 7.1 Lb-In | Brass | Stainless Steel | Polyamide (PA) Nylon | -30 ░C | 105 ░C | M3 | 14 AWG | 22 AWG | Horizontal with Board | Gray | Through Hole | 300 VDC | Screw - Leaf Spring Wire Guard | 1 | 15 A | 3 | 0.197 in | 5 mm | |

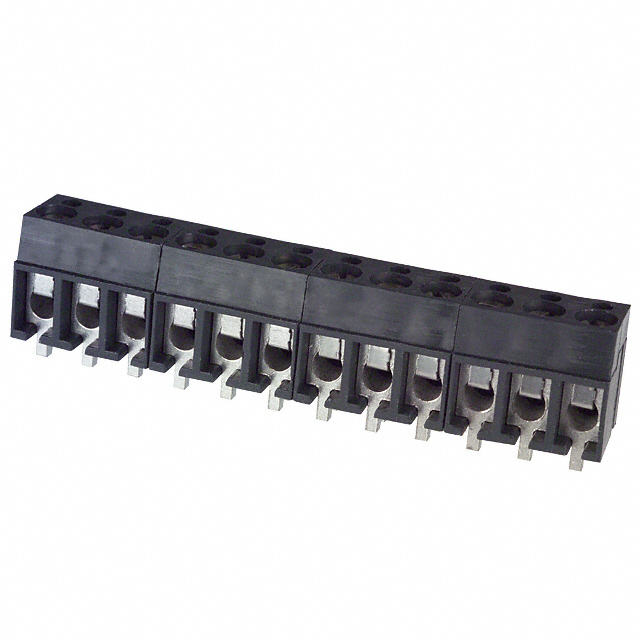

 On Shore Technology Inc. | 0.8 Nm | 7.1 Lb-In | Brass | Stainless Steel | Polyamide (PA) Nylon | -30 ░C | 105 ░C | M3 | 14 AWG | 22 AWG | Horizontal with Board | Gray | Through Hole | 300 VDC | Screw - Leaf Spring Wire Guard | 1 | 15 A | 12 | 0.197 in | 5 mm |
