794638 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER SMD 8POS 3MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Connector Type	Shrouding	Number of Positions Loaded	Style	Voltage Rating	Features	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Color	Number of Positions	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Termination	Contact Material	Insulation Material	Number of Rows [custom]	Current Rating (Amps)

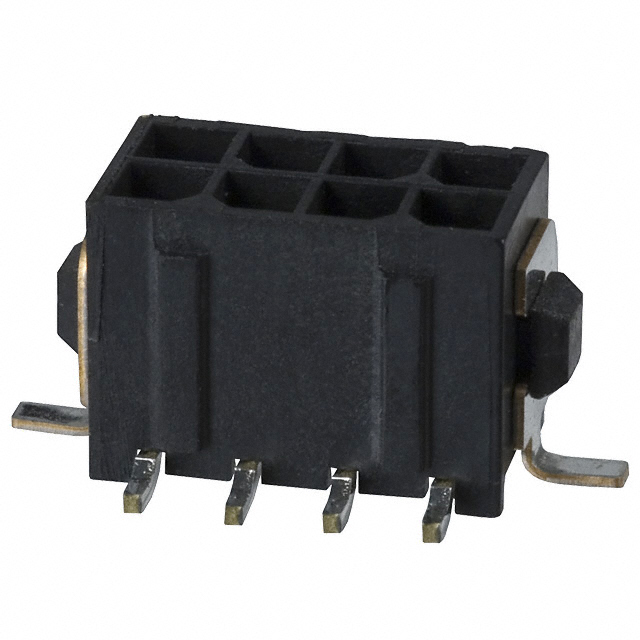

TE Connectivity AMP Connectors 794638-8	2.54 µm	100 µin	Gold Gold or Gold-Palladium	General Purpose	0.76 Ám	30 Áin	Tin-Lead	Header	Shrouded - 4 Wall	All	Board to Cable/Wire	250 V	Solder Retention	Square	-40 C	105 ░C	Locking Ramp	Black	8	Surface Mount	0.118 in	3 mm	UL94 V-0	Male Pin	3 mm	0.118 in	9.25 mm	0.364 in	Solder	Brass	Nylon Polyamide (PA)	2	Varies by Wire Gauge

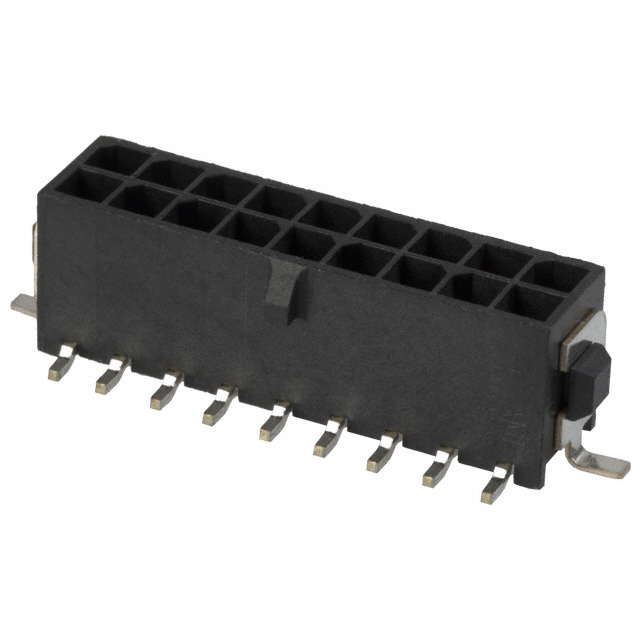

TE Connectivity AMP Connectors 4-794638-8	2.54 µm	100 µin	Gold or Gold-Palladium	General Purpose	0.76 Ám	30 Áin	Tin	Header	Shrouded - 4 Wall	All	Board to Cable/Wire	250 V	Solder Retention	Square	-40 C	105 ░C	Locking Ramp	Black	18	Surface Mount	0.118 in	3 mm	UL94 V-0	Male Pin	3 mm	0.118 in	9.25 mm	0.364 in	Solder	Brass	Nylon Polyamide (PA)	2	Varies by Wire Gauge

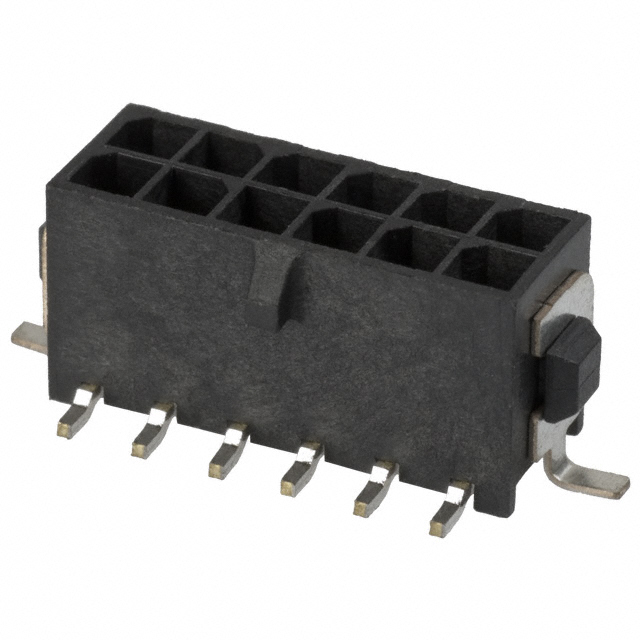

TE Connectivity AMP Connectors 1-794638-2	2.54 µm	100 µin	Gold Gold or Gold-Palladium	General Purpose	0.76 Ám	30 Áin	Tin-Lead	Header	Shrouded - 4 Wall	All	Board to Cable/Wire	250 V	Solder Retention	Square	-40 C	105 ░C	Locking Ramp	Black	12	Surface Mount	0.118 in	3 mm	UL94 V-0	Male Pin	3 mm	0.118 in	9.25 mm	0.364 in	Solder	Brass	Nylon Polyamide (PA)	2	Varies by Wire Gauge
TE Connectivity AMP Connectors 2-794638-2	2.54 µm	100 µin	Gold Gold or Gold-Palladium	General Purpose	0.76 Ám	30 Áin	Tin-Lead	Header	Shrouded - 4 Wall	All	Board to Cable/Wire	250 V	Solder Retention	Square	-40 C	105 ░C	Locking Ramp	Black	22	Surface Mount	0.118 in	3 mm	UL94 V-0	Male Pin	3 mm	0.118 in	9.25 mm	0.364 in	Solder	Brass	Nylon Polyamide (PA)	2	Varies by Wire Gauge
