CS8120 Series

Catalog

IC REG LIN 5V 300MA TO220-5

Part	Output Type	Output Configuration	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Number of Regulators	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Voltage Dropout (Max) [Max]	PSRR	Mounting Type	Control Features	Package / Case	Protection Features	Voltage - Input (Max) [Max]	Supplier Device Package

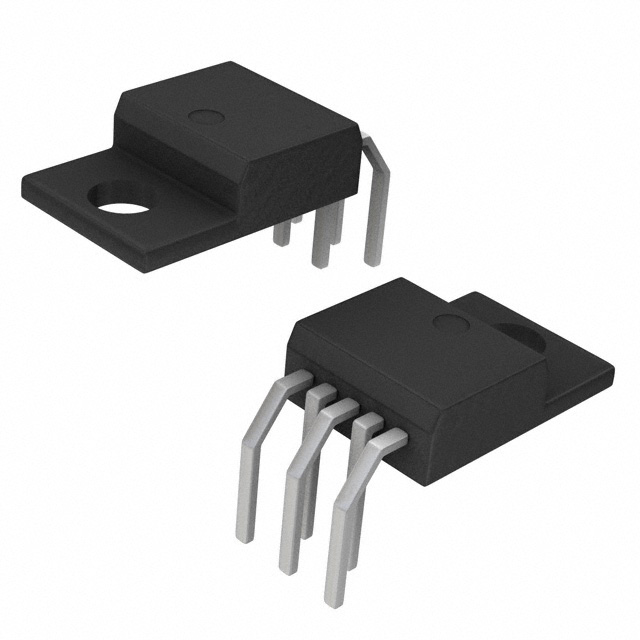

ON Semiconductor CS8120YTHA5	1.81 mOhm	Positive	15 mA	5 V	650 µA	1	125 °C	-40 °C	300 mA	1.5 V	70 dB	Through Hole	Enable Reset	TO-220-5 Formed Leads	Over Temperature Over Voltage Short Circuit	26 V	TO-220-5 Horizontal
ON Semiconductor CS8120YDPR5	1.81 mOhm	Positive	15 mA	5 V	650 µA	1	125 °C	-40 °C	300 mA	1.5 V	70 dB	Surface Mount	Enable Reset	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	Over Temperature Over Voltage Short Circuit	26 V	D2PAK-5
