LNE-48 Series

Catalog

LED DRVR CC/CV AC/DC 48V 6.7A

Part	Mounting Type	Ratings	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Dimming	Termination Style	Voltage - Isolation	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Voltage - Output [Max]	Voltage - Output [Min]	Features	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Approval Agency	Voltage - Input (Max) [Max]	Standard Number	Type	Weight	Weight
Delta Electronics LNE-48V320WAAA	Chassis Mount	IP65	252 mm	1.72 in	43.7 mm	3.54 in	89.9 mm	9.92 "	320 W	Analog PWM	Wire Leads	3.85 kV	94.5 %	70 °C	-40 C	AC DC Converter	48 V	24 V	OCP OTP OVP SCP	6.7 A	90 VAC	1	UL	305 VAC	50581 55011 55032 60601-1 60950-1	Constant Current Voltage

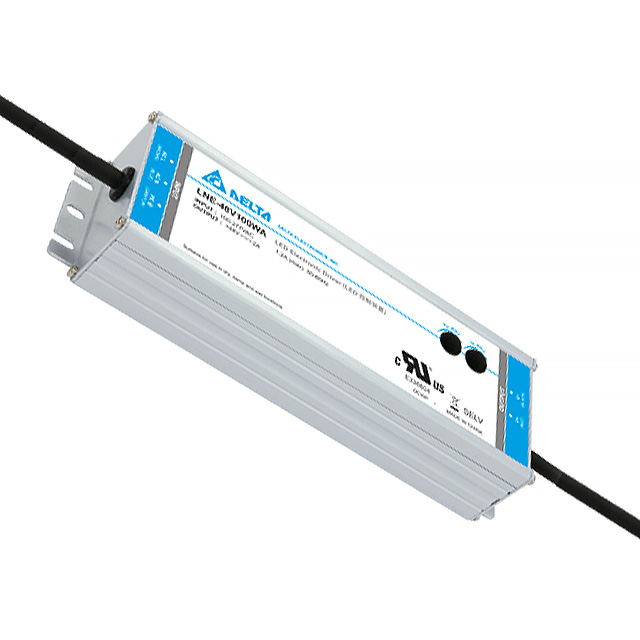

Delta Electronics LNE-48V100WAAA	Chassis Mount	IP65	196 mm	1.53 in	38.8 mm	2.68 in	68 mm	7.72 in	100 W		Wire Leads	3.85 kV	93 %	70 °C	-40 C	AC DC Converter	48 V	24 V	OCP OTP OVP SCP	2 A	90 VAC	1	UL	305 VAC	50581 55011 55032 60601-1 60950-1	Constant Current Voltage	997.9 g	2.2 lbs
Delta Electronics LNE-48V320WDAA	Chassis Mount	IP67	252 mm	1.72 in	43.7 mm	3.54 in	89.9 mm	9.92 "	320 W	Analog PWM	Wire Leads	3.85 kV	94.5 %	70 °C	-40 C	AC DC Converter	48 V	24 V	OCP OTP OVP SCP	6.7 A	90 VAC	1	UL	305 VAC	50581 55011 55032 60601-1 60950-1	Constant Current Voltage

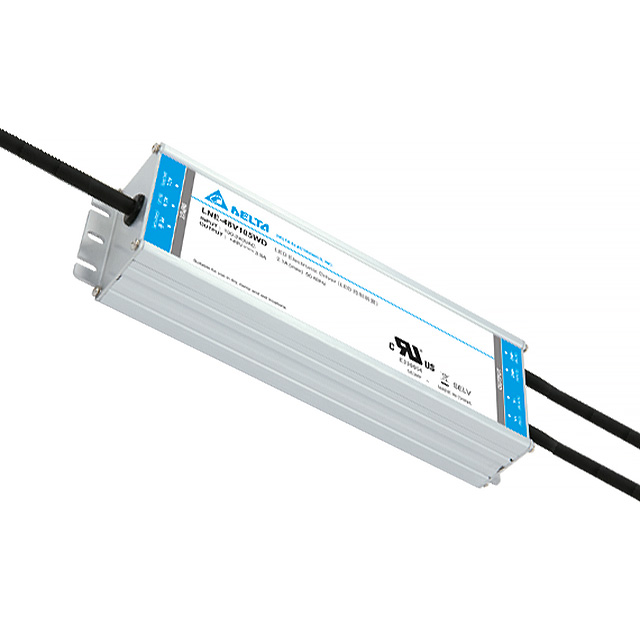

Delta Electronics LNE-48V185WDAA	Chassis Mount	IP67	204 mm	1.53 in	38.8 mm	2.68 in	68 mm	8.03 in	185 W	Analog PWM	Wire Leads	3.85 kV	94 %	70 °C	-40 C	AC DC Converter	48 V	24 V	OCP OTP OVP SCP	3.9 A	90 VAC	1	UL	305 VAC	50581 55011 55032 60601-1 60950-1	Constant Current Voltage	1.1 kg	2.4 lbs

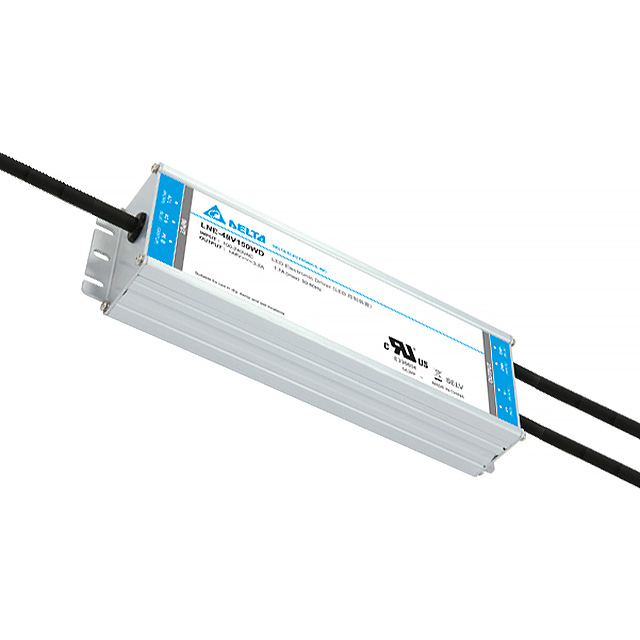

Delta Electronics LNE-48V150WDAA	Chassis Mount	IP67	204 mm	1.53 in	38.8 mm	2.68 in	68 mm	8.03 in	150 W	Analog PWM	Wire Leads	3.85 kV	94 %	70 °C	-40 C	AC DC Converter	48 V	24 V	OCP OTP OVP SCP	3.2 A	90 VAC	1	UL	305 VAC	50581 55011 55032 60601-1 60950-1	Constant Current Voltage	1.1 kg	2.4 lbs

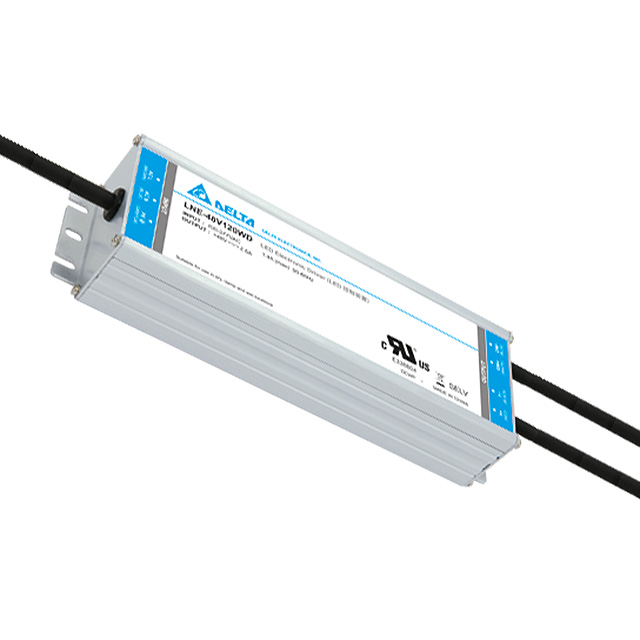

Delta Electronics LNE-48V120WDAA	Chassis Mount	IP67	196 mm	1.53 in	38.8 mm	2.68 in	68 mm	7.72 in	120 W	Analog PWM	Wire Leads	3.85 kV	93.5 %	70 °C	-40 C	AC DC Converter	48 V	24 V	OCP OTP OVP SCP	2.5 A	90 VAC	1	UL	305 VAC	50581 55011 55032 60601-1 60950-1	Constant Current Voltage	997.9 g	2.2 lbs
