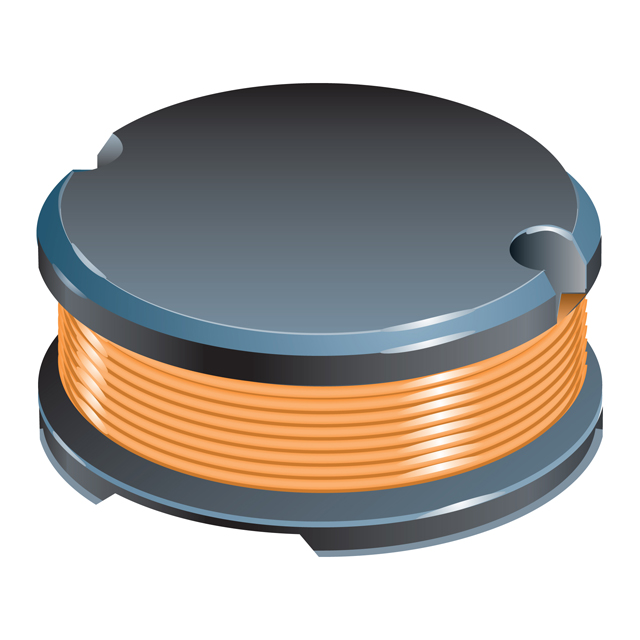

SDR1307A Series

Catalog

IND13X13X7MM,5.6UH20%6.5A,NON-SHDSMD /TAPE & REEL - 13" REEL

Part	Current Rating (Amps)	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	Package / Case	Tolerance	Mounting Type	Frequency - Self Resonant	Size / Dimension	Size / Dimension [diameter]	Current - Saturation (Isat)	Inductance	Q @ Freq	Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SDR1307A-5R6M	6.5 A	100 kHz	15 mOhm	AEC-Q200	0.287 "	7.3 mm	Ferrite	Nonstandard	20 %	Surface Mount	28 MHz	13 mm	0.512 in	11 A	5.6 µH	7.96 MHz 24	Drum Core Wirewound	125 °C	-40 C	Unshielded
Bourns Inc. SDR1307A-102K	650 mA	100 kHz	1.6 Ohm	AEC-Q200	0.287 "	7.3 mm	Ferrite	Nonstandard	10 %	Surface Mount	1.4 MHz	13 mm	0.512 in	1 A	1 mH		Drum Core Wirewound	125 °C	-40 C	Unshielded
Bourns Inc. SDR1307A-680K	2.3 A	100 kHz	120 mOhm	AEC-Q200	0.287 "	7.3 mm	Ferrite	Nonstandard	10 %	Surface Mount	7 MHz	13 mm	0.512 in	3.5 A	68 µH		Drum Core Wirewound	125 °C	-40 C	Unshielded	2.52 MHz	24
Bourns Inc. SDR1307A-270M	3.3 A	100 kHz		AEC-Q200	0.287 "	7.3 mm	Ferrite	Nonstandard	20 %	Surface Mount	11 MHz	13 mm	0.512 in	5.5 A	27 µH	2.52 MHz 35	Drum Core Wirewound	125 °C	-40 C	Unshielded
Bourns Inc. SDR1307A-681K	800 mA	100 kHz	1 Ohm	AEC-Q200	0.287 "	7.3 mm	Ferrite	Nonstandard	10 %	Surface Mount	1.6 MHz	13 mm	0.512 in	1.2 A	680 µH		Drum Core Wirewound	125 °C	-40 C	Unshielded	796 kHz	10
Bourns Inc. SDR1307A-120M	4.8 A	100 kHz	30 mOhm	AEC-Q200	0.287 "	7.3 mm	Ferrite	Nonstandard	20 %	Surface Mount	20 MHz	13 mm	0.512 in	8 A	12 µH	2.52 MHz 25	Drum Core Wirewound	125 °C	-40 C	Unshielded
Bourns Inc. SDR1307A-561K	0.85 A	100 kHz	880 mOhm	AEC-Q200	0.287 "	7.3 mm	Ferrite	Nonstandard	10 %	Surface Mount	2 MHz	13 mm	0.512 in	1.3 A	560 µH		Drum Core Wirewound	125 °C	-40 C	Unshielded	796 kHz	10
Bourns Inc. SDR1307A-391K	1 A	100 kHz		AEC-Q200	0.287 "	7.3 mm	Ferrite	Nonstandard	10 %	Surface Mount	2.52 MHz	13 mm	0.512 in		390 µH	12 796 kHz	Drum Core Wirewound	125 °C	-40 C	Unshielded
Bourns Inc. SDR1307A-331K	1.1 A	100 kHz	520 mOhm	AEC-Q200	0.287 "	7.3 mm	Ferrite	Nonstandard	10 %	Surface Mount		13 mm	0.512 in	1.6 A	330 µH		Drum Core Wirewound	125 °C	-40 C	Unshielded	796 kHz	15
Bourns Inc. SDR1307A-6R8M	6 A	100 kHz	17 mOhm	AEC-Q200	0.287 "	7.3 mm	Ferrite	Nonstandard	20 %	Surface Mount	26 MHz	13 mm	0.512 in	10.5 A	6.8 µH	7.96 MHz 24	Drum Core Wirewound	125 °C	-40 C	Unshielded
