767017 Series

Catalog

STACKING CONNECTOR, PLUG, 114POS, 0.64MM

Part	Features	Number of Rows [custom]	Mounting Type	Contact Finish	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions
TE Connectivity AMP Connectors 767017-3	Board Guide Ground Bus (Plane)	2	Surface Mount	Gold	0.64 mm	0.025 in	0.892 in	22.66 mm	22.86 mm 31.9 mm	30 Áin	0.76 Ám	Plug Outer Shroud Contacts	114
TE Connectivity AMP Connectors 2-767017-1	Board Guide Ground Bus (Plane)	2	Surface Mount	Gold	0.64 mm	0.025 in	0.892 in	22.66 mm	22.86 mm 31.9 mm	30 Áin	0.76 Ám	Plug Outer Shroud Contacts	266
TE Connectivity AMP Connectors 767017-1	Board Guide Ground Bus (Plane)	2	Surface Mount	Gold	0.64 mm	0.025 in	0.892 in	22.66 mm	22.86 mm 31.9 mm	30 Áin	0.76 Ám	Plug Outer Shroud Contacts	38

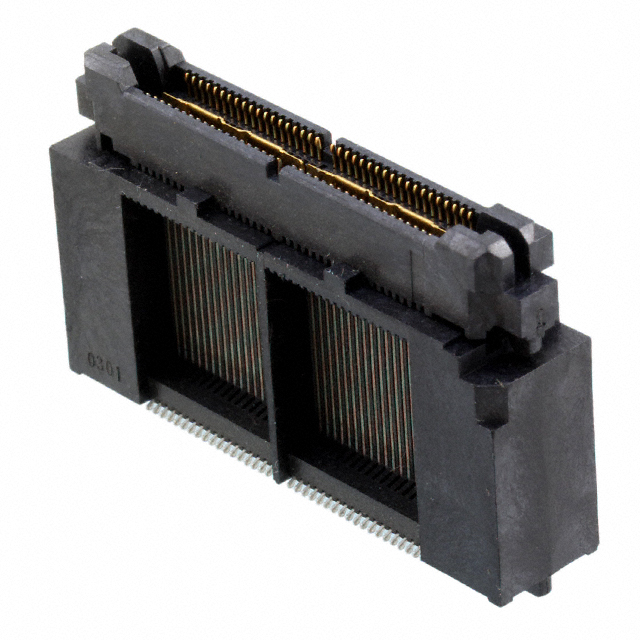

TE Connectivity AMP Connectors 767017-2	Board Guide Ground Bus (Plane)	2	Surface Mount	Gold	0.64 mm	0.025 in	0.892 in	22.66 mm	22.86 mm 31.9 mm	30 Áin	0.76 Ám	Plug Outer Shroud Contacts	76
