SDF-S37 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, IP67, STANDARD, RECEPTACLE, NANOOK SERIES, 37 CONTACTS, DC, SOLDER CUP
| Part | Color | Dielectric Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish | Mounting Type | Shell Material, Finish | Connector Type | Connector Style | Number of Positions | Flange Feature | Ingress Protection | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Number of Rows [custom] | Features | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

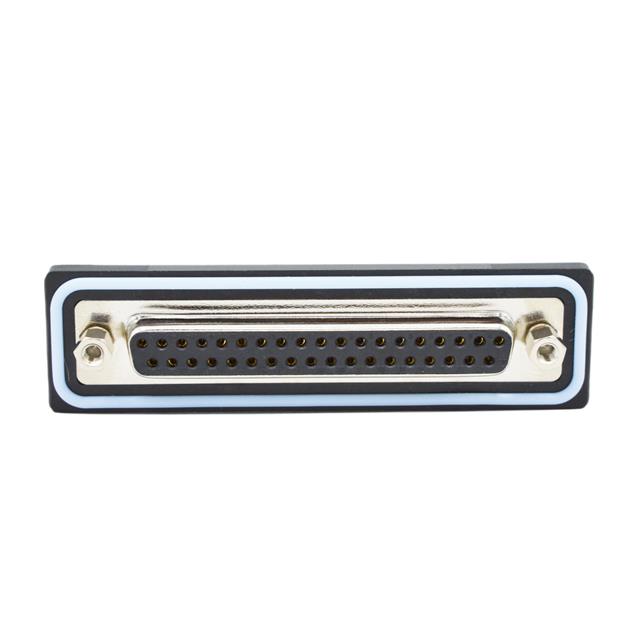

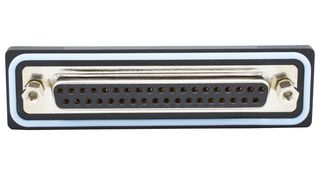

 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | 4 | DC C | Gold | Panel Mount | Nickel Plated Steel | Receptacle Female Sockets | D-Sub | 37 | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | Signal | 30 Áin | 0.76 Ám | 5 A | 2 | ||

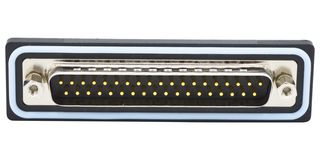

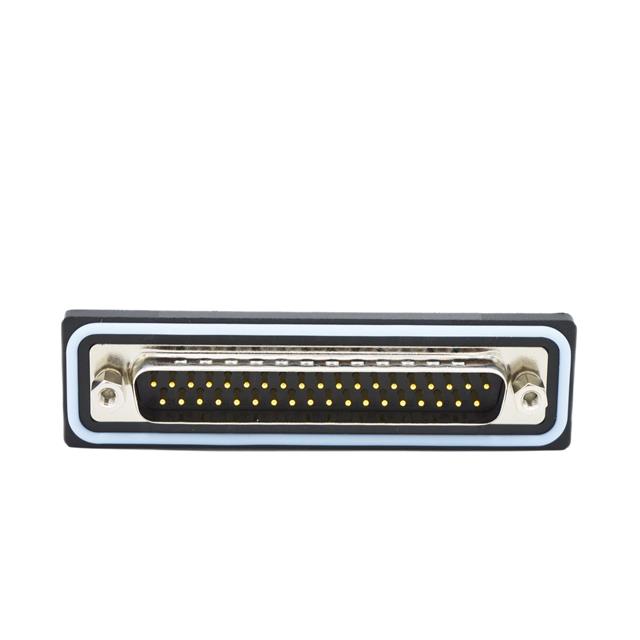

 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | 4 | DC C | Gold | Panel Mount | Nickel Plated Steel | Plug Male Pins | D-Sub | 37 | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | Signal | 5 A | 2 | Grounding Indents | Flash | ||
NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | 4 | DC C | Gold | Panel Mount | Nickel Plated Steel | Plug Male Pins | D-Sub | 37 | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | Signal | 30 Áin | 0.76 Ám | 5 A | 2 | Grounding Indents | |
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | UL94 V-0 | 4 | DC C | Gold | Panel Mount | Nickel Plated Steel | Receptacle Female Sockets | D-Sub | 37 | 4-40 Mating Side Female Screwlock | IP67 - Dust Tight Waterproof | Signal | 5 A | 2 | Flash |
