CWSA12AA Series
Manufacturer: NKK Switches
Beta
⌘K
ROCKER SWITCH, ON-NONE-ON, SPDT, NON ILLUMINATED, PANEL MOUNT, BLACK, CW SERIES
| Part | Electrical Life | Mechanical Life | Mounting Type | Circuit | Switch Function | Termination Style | Actuator Marking | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

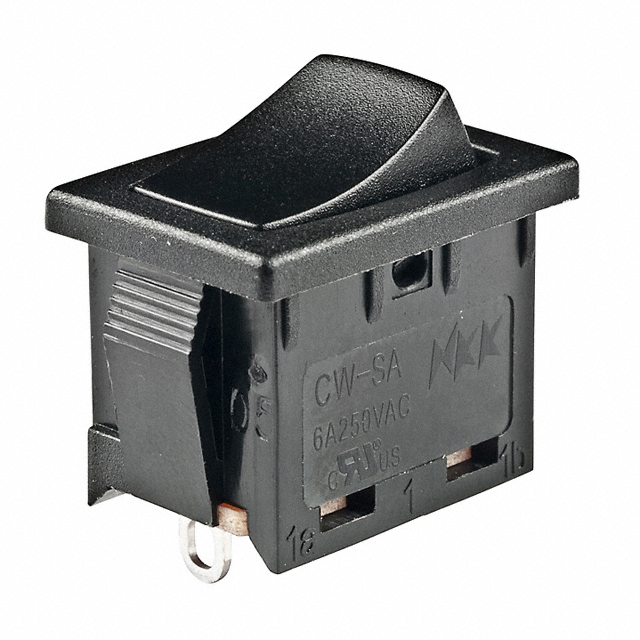

 NKK Switches | 10000 Cycles | 30000 Steps | Panel Mount Snap-In | SPDT | On-On | Solder Lug | No Marking | 6 A | 70 °C | -10 °C | Black | 250 V | 12.9 mm | 19.2 mm | Concave (Curved) | cULus |

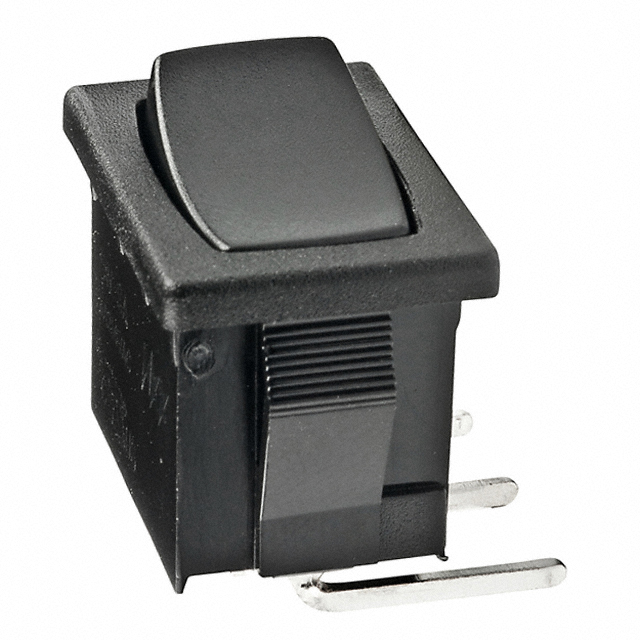

 NKK Switches | 10000 Cycles | 30000 Steps | Panel Mount Right Angle Snap-In | SPDT | On-On | PC Pin | No Marking | 6 A | 70 °C | -10 °C | Black | 250 V | 12.9 mm | 19.2 mm | Concave (Curved) | cULus |
