19120080 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, BASE, CABLE MOUNT, SIDE ENTRY, ZINC BODY, 1 LEVER
| Part | Style | Thread Size | Housing Finish | Connector Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Lock Location | Ingress Protection | Housing Color | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

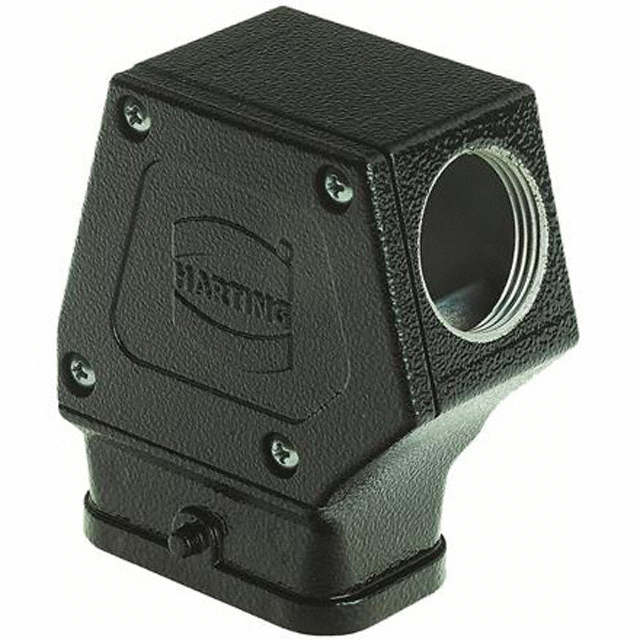

 HARTING | Side Entry | M25 | Powder Coated | Hood | 1.142 in | 73 mm | 2.874 in | 48.5 mm | 29 mm | 1.909 in | 125 °C | -40 C | Zinc Die Cast | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | Black | ||

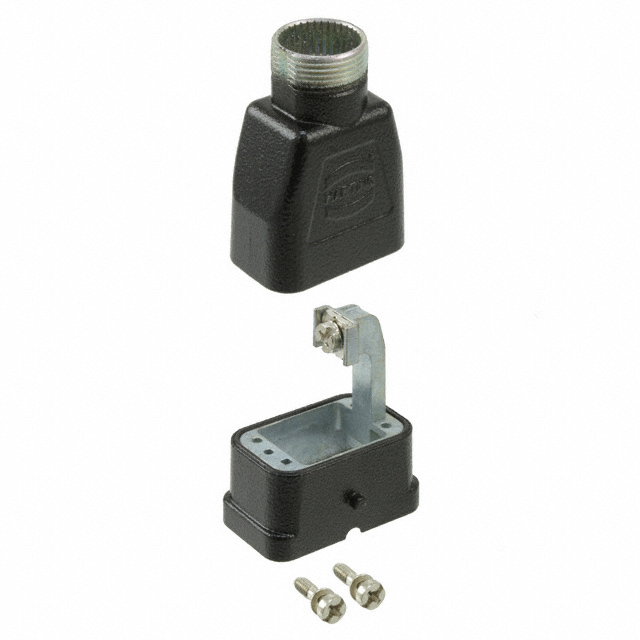

 HARTING | Top Entry | M25 | Powder Coated | Hood | 1.142 in | 88.9 mm | 3.5 " | 49.9 mm | 29 mm | 1.965 " | 125 °C | -40 C | Zinc Die Cast | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | Black | ||

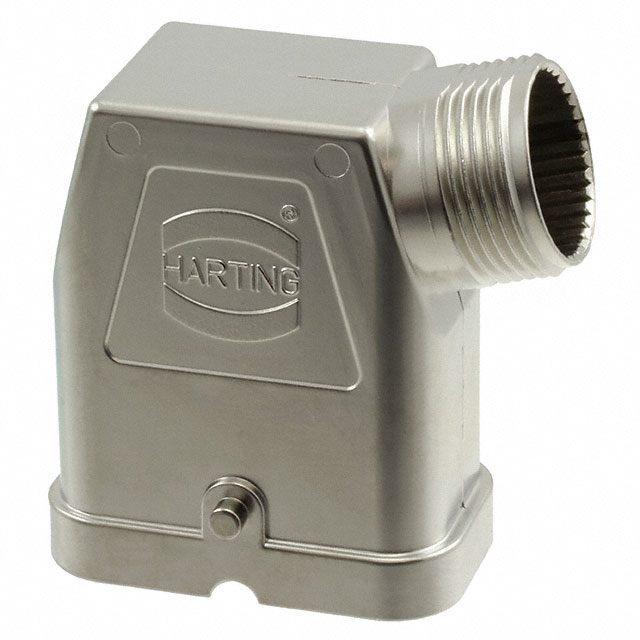

 HARTING | Side Entry | M25 | Nickel | Hood | 1.142 in | 59.5 mm | 2.343 in | 49.9 mm | 29 mm | 1.965 " | 125 °C | -40 C | Zinc Die Cast | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | Black | ||
 HARTING | Side and Top Entry | M20 | Hood | 1.134 in | 70.1 mm | 2.76 in | 47.9 mm | 28.8 mm | 1.886 in | 125 °C | -40 C | Polycarbonate (PC) | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | Black | |||

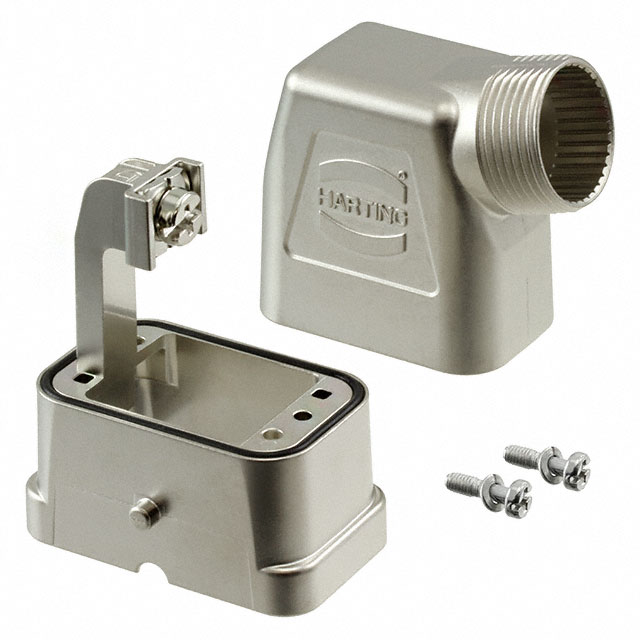

 HARTING | Side Entry | M25 | Nickel | Hood | 1.142 in | 2.791 in | 49.9 mm | 1.965 " | 125 °C | -40 C | Zinc Die Cast | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | Black | 70.9 mm | 29 mm |
