Tf30 Series Series

Basic / Snap Action Switches Miniature Snap-acting Switches (Full Disconnection - Gap > 3mm) Mid Size Snap-acting Switches (Full Disconnection - Gap > 3mm)

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Basic / Snap Action Switches Miniature Snap-acting Switches (Full Disconnection - Gap > 3mm) Mid Size Snap-acting Switches (Full Disconnection - Gap > 3mm)

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Switch Function	Circuit	Operating Position	Operating Position	Operating Force	Differential Travel	Differential Travel	Electrical Life	Pretravel	Pretravel	Overtravel	Overtravel	Termination Style	Mechanical Life	Voltage Rating - AC	Actuator Type	Operating Position [x]	Operating Position [x]
Littelfuse/Commercial Vehicle Products TF316CJP0040Y	125 °C	-40 °C	Chassis Mount	16 A	Off-Mom	SPST-NO	0.567 in	14.4 mm	842 gf	0.047 in	1.2 mm	10000 Cycles	0.075 in	1.9 mm	0.026 in	0.7 mm	Quick Connect - 0.187" (4.7mm)	500000 Cycles	125 V	Round (Pin Plunger)
Littelfuse/Commercial Vehicle Products TF316CFT104AY	125 °C	-40 °C	Chassis Mount	16 A	Off-Mom	SPST-NO			190 gf	0.055 in	1.4 mm	10000 Cycles			0.02 in	0.5 mm	Quick Connect - 0.250" (6.3mm)	500000 Cycles	125 V	Lever Straight	15 mm	0.591 in
Littelfuse/Commercial Vehicle Products TF316CFP004AY	125 °C	-40 °C	Chassis Mount	16 A	Off-Mom	SPST-NO	0.567 in	14.4 mm	190 gf	0.047 in	1.2 mm	10000 Cycles	0.075 in	1.9 mm	0.026 in	0.7 mm	Quick Connect - 0.250" (6.3mm)	500000 Cycles	125 V	Round (Pin Plunger)

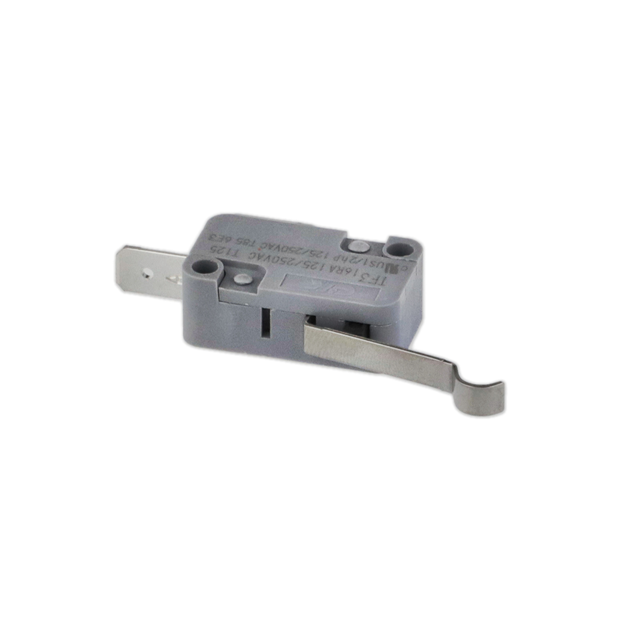

Littelfuse/Commercial Vehicle Products TF316ECT244AY	125 °C	-40 °C	Chassis Mount	16 A	Off-Mom	SPST-NO	0.724 in	18.4 mm	88 gf	0.114 in	2.9 mm	10000 Cycles	0.283 in	7.2 mm	0.059 in	1.5 mm	Quick Connect - 0.250" (6.3mm)	500000 Cycles	125 V	Lever Simulated Roller
Littelfuse/Commercial Vehicle Products TF320CFP0040Y	125 °C	-40 °C	Chassis Mount	20 A	Off-Mom	SPST-NO	0.567 in	14.4 mm	190 gf	0.047 in	1.2 mm	10000 Cycles	0.075 in	1.9 mm	0.026 in	0.7 mm	Quick Connect - 0.187" (4.7mm)	500000 Cycles	125 V	Round (Pin Plunger)
Littelfuse/Commercial Vehicle Products TF325CFT1540Y	125 °C	-40 °C	Chassis Mount	25 A	Off-Mom	SPST-NO	0.591 in	15 mm	100 gf	0.107 in	2.7 mm	10000 Cycles	0.188 in	4.8 mm	0.039 in	1 mm	Quick Connect - 0.187" (4.7mm)	500000 Cycles	125 V	Lever Straight

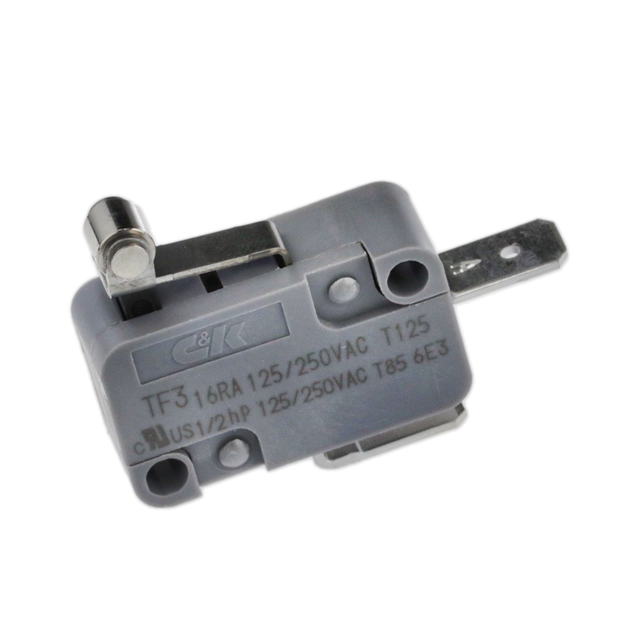

Littelfuse/Commercial Vehicle Products TF316CFA104AY	125 °C	-40 °C	Chassis Mount	16 A	Off-Mom	SPST-NO	0.803 in	20.4 mm	190 gf	0.047 in	1.2 mm	10000 Cycles	0.087 in	2.2 mm	0.015 "	0.4 mm	Quick Connect - 0.250" (6.3mm)	500000 Cycles	125 V	Lever Roller

Catalog

Basic / Snap Action Switches Miniature Snap-acting Switches (Full Disconnection - Gap > 3mm) Mid Size Snap-acting Switches (Full Disconnection - Gap > 3mm)

Key Features

• Broad range of operating forces

• Rating up to 25 AMPS

• Wide variety of actuator styles

• Quick connect terminations

• Extreme operating temperature up to 125ºC

Description

C&K's TF3 mid size snap-acting switches (full disconnection - gap > 3mm) is the new extension of snap switch. With the larger disconnection gap, it is suitable for high power amperage application while providing necessary safety.
