042892 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 3POS 3.96MM

Part	Contact Finish - Post	Applications	Contact Material	Mounting Type	Fastening Type	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Termination	Contact Type	Insulation Material	Material Flammability Rating	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Style	Contact Shape	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded	Number of Positions
Molex 0428920081	Tin	Automotive General Purpose Industrial Medical Telecommunications	Brass	Through Hole Right Angle	Friction Lock	1	11.43 mm	0.45 in	0.13 in	3.3 mm	0.156 in	3.96 mm	10 mm	0.394 "	Gold	Solder	Male Pin	Polyester Glass Filled	UL94 V-0	Shrouded - 1 Wall	2.54 µm	100 µin	All	Board to Board Cable	Square	Natural	15 µin	0.38 µm	Header
Molex 0428920120	Tin	Automotive General Purpose Industrial Medical Telecommunications	Brass	Through Hole Right Angle	Friction Lock	1	11.43 mm	0.45 in	0.13 in	3.3 mm	0.156 in	3.96 mm	10 mm	0.394 "		Solder	Male Pin	Polyester Glass Filled	UL94 V-0	Shrouded - 1 Wall	1.52 µm	60 µin		Board to Board Cable	Square	Natural	60 Áin	1.52 Ám	Header	3
Molex 0428920084	Tin	Automotive General Purpose Industrial Medical Telecommunications	Brass	Through Hole Right Angle	Friction Lock	1	11.43 mm	0.45 in	0.13 in	3.3 mm	0.156 in	3.96 mm	10 mm	0.394 "	Gold	Solder	Male Pin	Polyester Glass Filled	UL94 V-0	Shrouded - 1 Wall	2.54 µm	100 µin	All	Board to Board Cable	Square	Natural	15 µin	0.38 µm	Header		6
Molex 0428920100	Tin	Automotive General Purpose Industrial Medical Telecommunications	Brass	Through Hole Right Angle	Friction Lock	1	11.43 mm	0.45 in	0.13 in	3.3 mm	0.156 in	3.96 mm	10 mm	0.394 "	Gold	Solder	Male Pin	Polyester Glass Filled	UL94 V-0	Shrouded - 1 Wall	2.54 µm	100 µin	All	Board to Board Cable	Square	Natural	30 Áin	0.76 Ám	Header

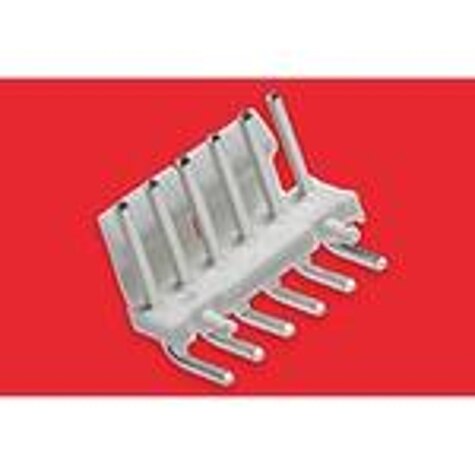

Molex 0428920086	Tin	Automotive General Purpose Industrial Medical Telecommunications	Brass	Through Hole Right Angle	Friction Lock	1	11.43 mm	0.45 in	0.13 in	3.3 mm	0.156 in	3.96 mm	10 mm	0.394 "	Gold	Solder	Male Pin	Polyester Glass Filled	UL94 V-0	Shrouded - 1 Wall	2.54 µm	100 µin	All	Board to Board Cable	Square	Natural	15 µin	0.38 µm	Header		8
Molex 0428920085	Tin	Automotive General Purpose Industrial Medical Telecommunications	Brass	Through Hole Right Angle	Friction Lock	1	11.43 mm	0.45 in	0.13 in	3.3 mm	0.156 in	3.96 mm	10 mm	0.394 "	Gold	Solder	Male Pin	Polyester Glass Filled	UL94 V-0	Shrouded - 1 Wall	2.54 µm	100 µin	All	Board to Board Cable	Square	Natural	15 µin	0.38 µm	Header		7
Molex 0428920090	Tin	Automotive General Purpose Industrial Medical Telecommunications	Brass	Through Hole Right Angle	Friction Lock	1	11.43 mm	0.45 in	0.13 in	3.3 mm	0.156 in	3.96 mm	10 mm	0.394 "	Gold	Solder	Male Pin	Polyester Glass Filled	UL94 V-0	Shrouded - 1 Wall	2.54 µm	100 µin	All	Board to Board Cable	Square	Natural	15 µin	0.38 µm	Header		12
