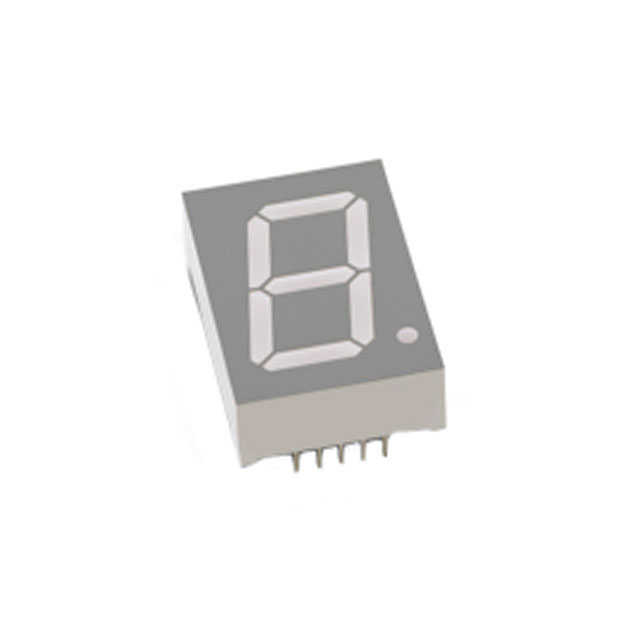

HDSP-H1 Series
Manufacturer: Broadcom Limited
Beta
⌘K
DISPLAY 7-SEG 1" SGL RED 10DIP
| Part | Color | Voltage - Forward (Vf) (Typ) | Number of Characters [custom] | Power Dissipation (Max) [Max] | Current - Test | Package / Case | Package / Case | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Millicandela Rating | Wavelength - Peak | Digit/Alpha Size | Digit/Alpha Size | Common Pin | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Red | 2 V | 1 | 104 mW | 20 mA | 30.48 mm | 1.2 in | 10-DIP | 24 mm | 10.5 mm | 1.339 " | 0.413 " | 0.945 in | 34 mm | 70 mcd | 644 nm | 1 in | 25.4 mm | Common Anode | 7-Segment |
Broadcom Limited | Green | 2 V | 1 | 104 mW | 20 mA | 30.48 mm | 1.2 in | 10-DIP | 24 mm | 10.5 mm | 1.339 " | 0.413 " | 0.945 in | 34 mm | 25 mcd | 570 nm | 1 in | 25.4 mm | Common Cathode | 7-Segment |
Broadcom Limited | Red | 2 V | 1 | 104 mW | 20 mA | 30.48 mm | 1.2 in | 10-DIP | 24 mm | 10.5 mm | 1.339 " | 0.413 " | 0.945 in | 34 mm | 70 mcd | 634 nm | 1 in | 25.4 mm | Common Anode | 7-Segment |
