TXU0101-Q1 Series

Automotive single-channel fixed-direction level shifter

Catalog

Automotive single-channel fixed-direction level shifter

Part	Operating Temperature [Min]	Operating Temperature [Max]	Channels per Circuit	Channel Type	Output Type	Voltage - VCCB [Min]	Voltage - VCCB [Max]	Data Rate	Package / Case	Grade	Translator Type	Voltage - VCCA [Max] [custom]	Voltage - VCCA [Min] [custom]	Supplier Device Package	Mounting Type	Number of Circuits	Qualification

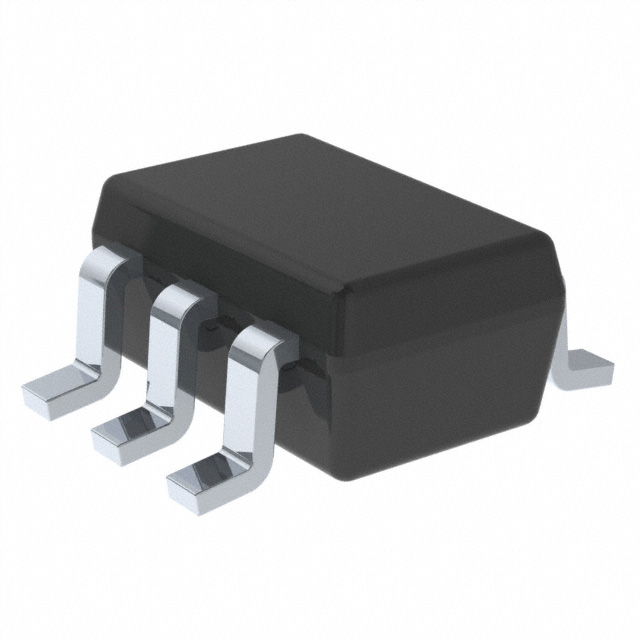

Texas Instruments TXU0101QDCKRQ1	-40 °C	125 °C	1	Unidirectional	Non-Inverted Tri-State	1.08 V	5.5 V	200 Mbps	6-TSSOP SC-88 SOT-363	Automotive	Voltage Level	5.5 V	1.08 V	SC-70-6	Surface Mount	1	AEC-Q100

Catalog

Automotive single-channel fixed-direction level shifter

Key Features

• Fully configurable dual-rail design allows each port to operate from 1.1 V to 5.5 VUp to 200 Mbps support for 3.3 V to 5.0 VSchmitt-trigger inputs allows for slow and noisy inputsInputs with integrated static pull-down resistors prevent channels from floatingHigh drive strength (up to 12 mA at 5 V)Low power consumption2.5 µA maximum (25°C)6 µA maximum (–40°C to 125°C)VCCisolation and VCCdisconnect (Ioff-float) featureIf either VCCinput is ;amplt;100 mV or disconnected, all outputs are disabled and become high-impedanceIoffsupports partial-power-down mode operationControl logic (OE) with VCC(MIN)circuitry allows for control from either A or B portPinout compatible with TXB family level shiftersOperating temperature from –40°C to +125°CLatch-up performance exceeds 100 mA per JESD 78, class IIESD protection exceeds JESD 222500-V human-body model1500-V charged-device modelFully configurable dual-rail design allows each port to operate from 1.1 V to 5.5 VUp to 200 Mbps support for 3.3 V to 5.0 VSchmitt-trigger inputs allows for slow and noisy inputsInputs with integrated static pull-down resistors prevent channels from floatingHigh drive strength (up to 12 mA at 5 V)Low power consumption2.5 µA maximum (25°C)6 µA maximum (–40°C to 125°C)VCCisolation and VCCdisconnect (Ioff-float) featureIf either VCCinput is ;amplt;100 mV or disconnected, all outputs are disabled and become high-impedanceIoffsupports partial-power-down mode operationControl logic (OE) with VCC(MIN)circuitry allows for control from either A or B portPinout compatible with TXB family level shiftersOperating temperature from –40°C to +125°CLatch-up performance exceeds 100 mA per JESD 78, class IIESD protection exceeds JESD 222500-V human-body model1500-V charged-device model

Description

TXU0101-Q1 is a 1-bit, dual-supply noninverting fixed direction voltage level translation device. The A pin is referenced to VCCAlogic level, the OE pin can be referenced to either VCCAor VCCBlogic levels, and the B pin is referenced to VCCBlogic level. The A port can accept input voltages ranging from 1.1 V to 5.5 V, while the B port can also accept input voltages from 1.1 V to 5.5 V. Fixed direction data transmission can occur from A to B when OE is set to high in reference to either supply. When OE is set to low, all output pins are in the high-impedance state. SeeDevice Functional Modesfor a summary of the operation of the control logic. . TXU0101-Q1 is a 1-bit, dual-supply noninverting fixed direction voltage level translation device. The A pin is referenced to VCCAlogic level, the OE pin can be referenced to either VCCAor VCCBlogic levels, and the B pin is referenced to VCCBlogic level. The A port can accept input voltages ranging from 1.1 V to 5.5 V, while the B port can also accept input voltages from 1.1 V to 5.5 V. Fixed direction data transmission can occur from A to B when OE is set to high in reference to either supply. When OE is set to low, all output pins are in the high-impedance state. SeeDevice Functional Modesfor a summary of the operation of the control logic. .
