ADC0803 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC ADC 8BIT SAR 20SOIC
| Part | Architecture | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Input Type | Number of A/D Converters | Package / Case | Package / Case [y] | Package / Case [y] | Number of Bits | Data Interface | Configuration | Number of Inputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Ratio - S/H:ADC | Reference Type | Supplier Device Package | Mounting Type | Package / Case | Package / Case | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | SAR | 6.3 V | 4.5 V | Differential Pseudo-Differential Single Ended | 1 | 20-SOIC | 0.295 in | 7.5 mm | 8 | SPI | MUX-S/H-ADC | 8 | 85 °C | -40 °C | 6.3 V | 4.5 V | 1:1 | Internal | 20-SOIC | Surface Mount | |||

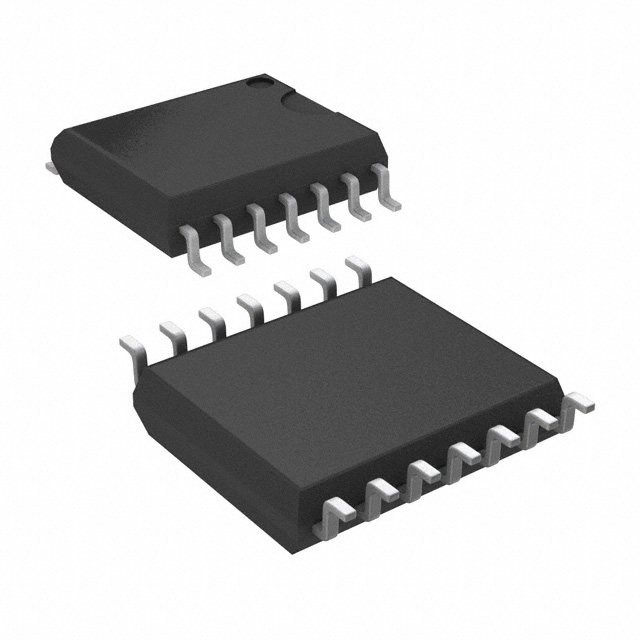

 Texas Instruments | SAR | 6.3 V | 4.5 V | Differential Pseudo-Differential Single Ended | 1 | 14-SOIC | 8 | SPI | MUX-S/H-ADC | 2 | 85 °C | -40 °C | 6.3 V | 4.5 V | 1:1 | Internal | Surface Mount | 0.295 in | 7.5 mm | ||||
 Texas Instruments | SAR | 6.3 V | 4.5 V | Differential | 1 | 20-DIP | 8 | Parallel | ADC | 1 | 85 °C | -40 °C | 6.3 V | 4.5 V | External Supply | 20-PDIP | Through Hole | 0.3 in | 7.62 mm | 10 k per second | |||
Texas Instruments | SAR | 6.3 V | 4.5 V | Differential Pseudo-Differential Single Ended | 1 | 14-SOIC | 8 | SPI | MUX-S/H-ADC | 4 | 85 °C | -40 °C | 6.3 V | 4.5 V | 1:1 | Internal | Surface Mount | 0.295 in | 7.5 mm | ||||
Texas Instruments | SAR | 6.3 V | 4.5 V | Differential Pseudo-Differential Single Ended | 1 | 14-SOIC | 8 | SPI | MUX-S/H-ADC | 1 | 85 °C | -40 °C | 6.3 V | 4.5 V | 1:1 | Internal | Surface Mount | 0.295 in | 7.5 mm | ||||
Texas Instruments | SAR | 6.3 V | 4.5 V | Differential Pseudo-Differential Single Ended | 1 | 14-SOIC | 8 | SPI | MUX-S/H-ADC | 1 | 85 °C | -40 °C | 6.3 V | 4.5 V | 1:1 | Internal | Surface Mount | 0.295 in | 7.5 mm | ||||
Texas Instruments | SAR | 6.3 V | 4.5 V | Differential Pseudo-Differential Single Ended | 1 | 14-SOIC | 8 | SPI | MUX-S/H-ADC | 2 | 85 °C | -40 °C | 6.3 V | 4.5 V | 1:1 | Internal | Surface Mount | 0.295 in | 7.5 mm | ||||
Texas Instruments | SAR | 6.3 V | 4.5 V | Differential Pseudo-Differential Single Ended | 1 | 20-SOIC | 0.295 in | 7.5 mm | 8 | SPI | MUX-S/H-ADC | 8 | 85 °C | -40 °C | 6.3 V | 4.5 V | 1:1 | Internal | 20-SOIC | Surface Mount | |||
Texas Instruments | SAR | 6.3 V | 4.5 V | Differential | 1 | 20-DIP | 8 | Parallel | ADC | 1 | 85 °C | -40 °C | 6.3 V | 4.5 V | External Supply | 20-PDIP | Through Hole | 0.3 in | 7.62 mm | 10 k per second |
