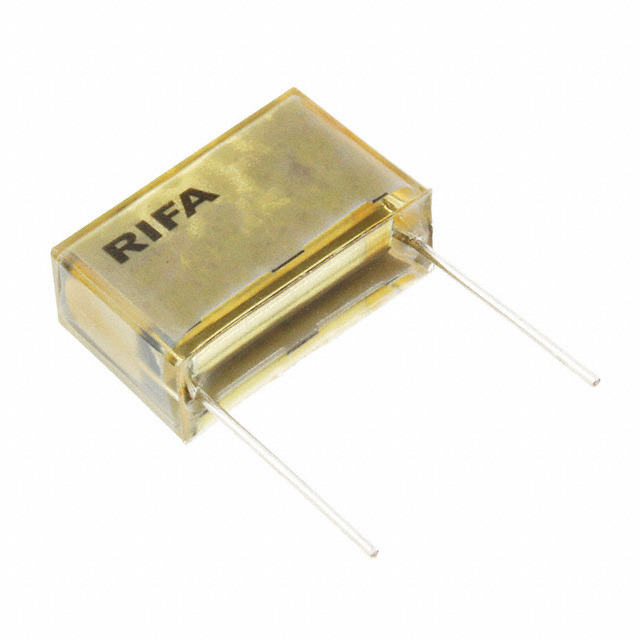

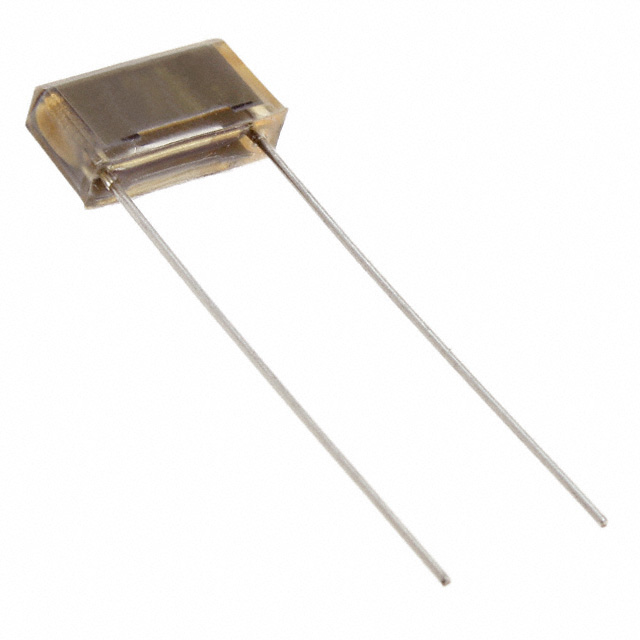

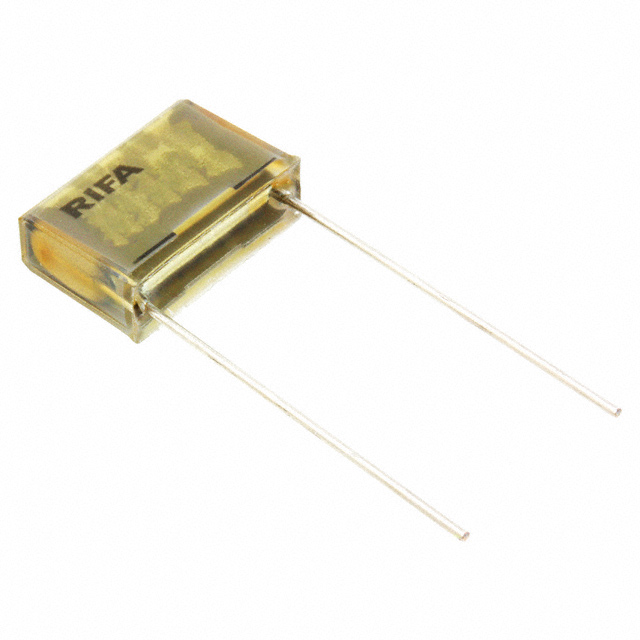

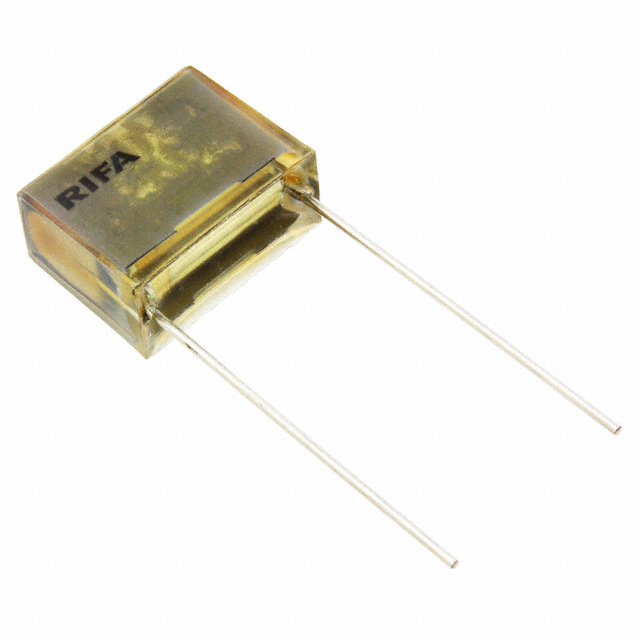

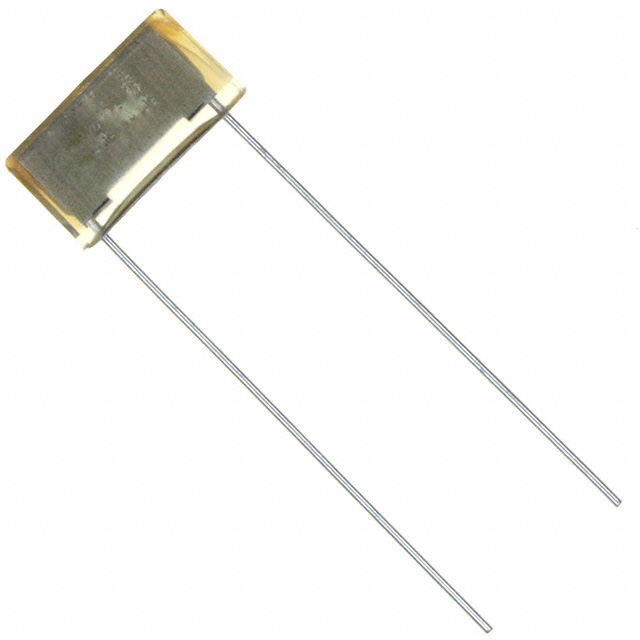

PME271 Series

Manufacturer: KEMET

Catalog

CAP FILM 0.1UF 10% 275VAC RADIAL

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Dielectric Material	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Voltage Rating - AC	Capacitance	Tolerance	Package / Case	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]
KEMET PME271MB6100KR30	0.335 in	18.5 mm	0.728 in	8.5 mm	Through Hole	Metallized Paper	EMI RFI Suppression	-40 C	110 °C	0.598 in	15.2 mm	PC Pins	0.563 "	14.3 mm	X2	275 V	100000 pF	10 %	Radial

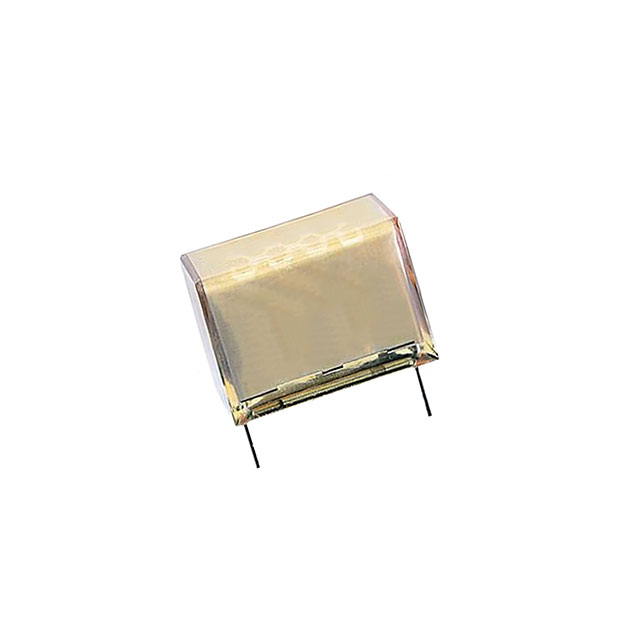

KEMET PME271Y422MR19T0	0.154 in	13.5 mm	0.531 in	3.9 mm	Through Hole	Metallized Paper	EMI RFI Suppression	-40 C	100 °C			PC Pins			Y2	250 V	2200 pF	20 %	Radial	1 kV	1 kVDC	0.295 in	7.5 mm
KEMET PME271M510MR30	0.205 "	18.5 mm	0.728 in		Through Hole	Metallized Paper	EMI RFI Suppression	-40 C	110 °C	0.598 in	15.2 mm	PC Pins			X2	275 V	10000 pF	20 %	Radial				10.5 mm	5.2 mm	0.413 "

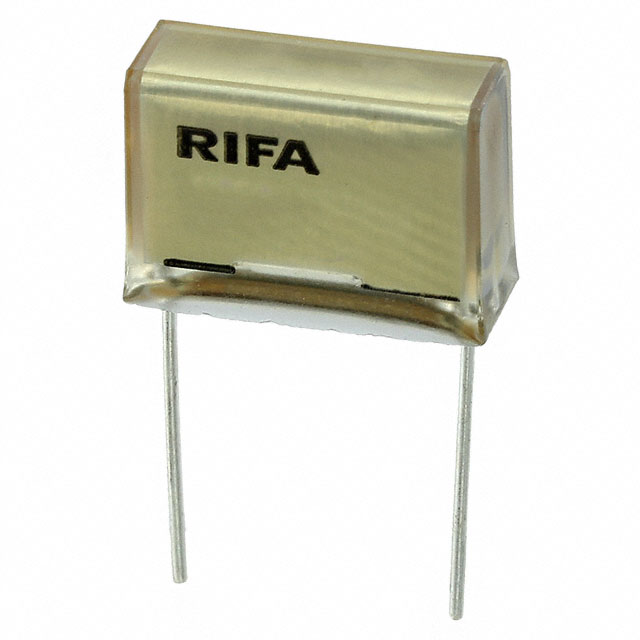

KEMET PME271Y522MR19T0		0.728 in 18.5 mm		0.287 in 7.3 mm	Through Hole	Metallized Paper	EMI RFI Suppression	-40 C	100 °C	0.598 in	15.2 mm	PC Pins	13 mm		Y2	250 V	0.022 µF	20 %	Radial	1 kV	1 kVDC	0.512 "
KEMET PME271Y547MR19T0	0.354 in	24 mm	0.945 "		Through Hole	Metallized Paper	EMI RFI Suppression	-40 C	100 °C	0.799 in	20.3 mm	PC Pins	15 mm		Y2	250 V		20 %	Radial	1 kV	1 kVDC	0.591 "		9 mm
KEMET PME271E522MR30	0.287 in	19 mm	0.748 in	7.3 mm	Through Hole	Metallized Paper	EMI RFI Suppression	-40 C	110 °C	0.598 in	15.2 mm	PC Pins	13 mm		X1	300 V	0.022 µF	20 %	Radial			0.512 "
KEMET PME271M547MR04	0.236 "	18.5 mm	0.728 in	6 mm	Through Hole	Metallized Paper	EMI RFI Suppression	-40 C	110 °C	0.598 in	15.2 mm	PC Pins			X2	275 V		20 %	Radial				0.492 in			12.5 mm
KEMET PME271M610KR30		0.945 "		0.299 in	Through Hole	Metallized Paper	EMI RFI Suppression	-40 C	110 °C	0.799 in	20.3 mm	PC Pins			X2	275 V	100000 pF	10 %	Radial				14 mm	7.6 mm	0.551 in		24 mm
KEMET PME271M447MR30	0.201 "	13.5 mm	0.531 in	5.1 mm	Through Hole	Metallized Paper	EMI RFI Suppression	-40 C	110 °C			PC Pins			X2	275 V	0.0047 µF	20 %	Radial				10.5 mm		0.413 "
KEMET PME271M547MR30	0.236 "	18.5 mm	0.728 in	6 mm	Through Hole	Metallized Paper	EMI RFI Suppression	-40 C	110 °C	0.598 in	15.2 mm	PC Pins			X2	275 V		20 %	Radial				0.492 in			12.5 mm
