833-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

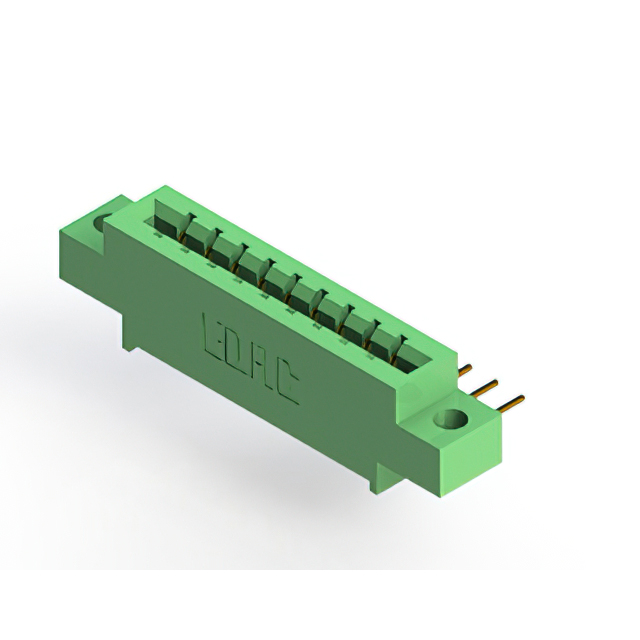

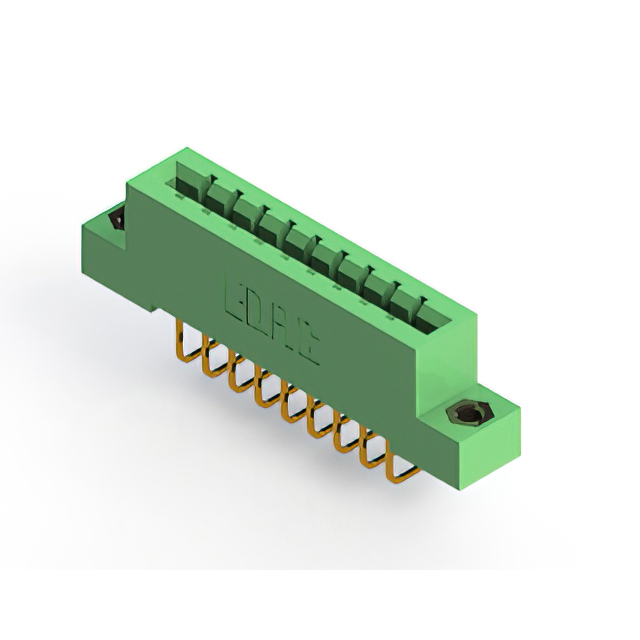

CONN EDGE SGL FMALE 9POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Material | Read Out | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row | Pitch | Pitch | Color | Card Thickness [Max] | Card Thickness [Min] | Termination | Gender | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Mounting Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Single | Non Specified - Single Edge | 125 °C | -40 C | 1 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 9 | 3.96 mm | 0.156 in | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Gold | 0.25 Ám | 10 Áin | 9 | Right Angle Through Hole | Cantilever |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Single | Non Specified - Single Edge | 125 °C | -40 C | 1 | Flush Mount M3 Threaded Insert Top Opening | 9 | 3.96 mm | 0.156 in | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Female | Gold | 0.25 Ám | 10 Áin | 9 | Through Hole | Cantilever | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Single | Non Specified - Single Edge | 125 °C | -40 C | 1 | 0.156 " | 3.96 mm | 9 | 3.96 mm | 0.156 in | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Gold | 0.25 Ám | 10 Áin | 9 | Right Angle Through Hole | Cantilever | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Single | Non Specified - Single Edge | 125 °C | -40 C | 1 | 0.156 " | 3.96 mm | 9 | 3.96 mm | 0.156 in | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Gold | 0.25 Ám | 10 Áin | 9 | Right Angle Through Hole | Cantilever | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Single | Non Specified - Single Edge | 125 °C | -40 C | 1 | Flush Mount M3 Threaded Insert Top Opening | 9 | 3.96 mm | 0.156 in | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Gold | 0.25 Ám | 10 Áin | 9 | Right Angle Through Hole | Cantilever | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Single | Non Specified - Single Edge | 125 °C | -40 C | 1 | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 9 | 3.96 mm | 0.156 in | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Female | Gold | 0.25 Ám | 10 Áin | 9 | Through Hole | Cantilever |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Single | Non Specified - Single Edge | 125 °C | -40 C | 1 | 9 | 3.96 mm | 0.156 in | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Gold | 0.25 Ám | 10 Áin | 9 | Through Hole | Cantilever | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Single | Non Specified - Single Edge | 125 °C | -40 C | 1 | M3 Threaded Insert Top Mount Opening | 9 | 3.96 mm | 0.156 in | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Gold | 0.25 Ám | 10 Áin | 9 | Right Angle Through Hole | Cantilever | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Single | Non Specified - Single Edge | 125 °C | -40 C | 1 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 9 | 3.96 mm | 0.156 in | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Female | Gold | 0.25 Ám | 10 Áin | 9 | Through Hole | Cantilever |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Copper Alloy | Single | Non Specified - Single Edge | 125 °C | -40 C | 1 | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 9 | 3.96 mm | 0.156 in | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Female | Gold | 0.25 Ám | 10 Áin | 9 | Right Angle Through Hole | Cantilever |
