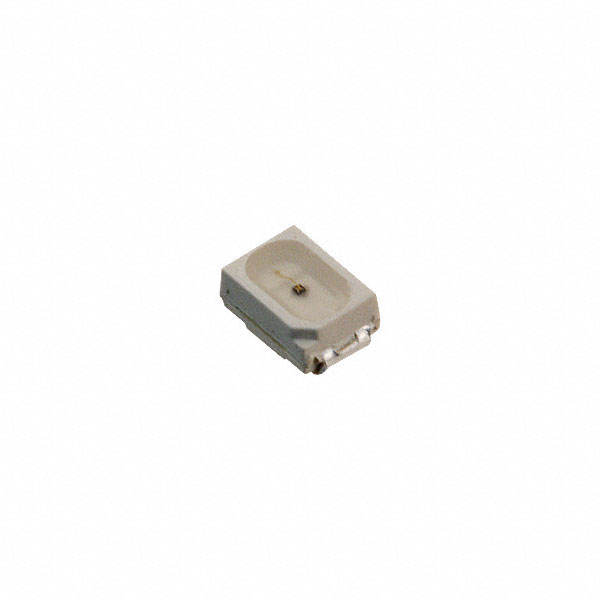

SML-LX23 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED RED CLEAR SMD

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Configuration	Supplier Device Package	Wavelength - Peak	Lens Size [y]	Lens Size [x]	Current - Test	Lens Transparency	Lens Style	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Viewing Angle	Millicandela Rating	Color	Package / Case
Lumex Opto/Components Inc. SML-LX23SIC-TR	Surface Mount	3 mm	2 mm	Colorless	Standard	SMD	636 nm	1.4 mm	2 mm	20 mA	Clear	Rectangle with Flat Top	2 V	1.4 mm	90 °	300 mcd	Red	2-SMD J-Lead
Lumex Opto/Components Inc. SML-LX23UPGC-TR	Surface Mount	3 mm	2 mm	Colorless	Standard	SMD	525 nm	1.4 mm	2 mm	20 mA	Clear	Rectangle with Flat Top	3.5 V	1.4 mm	90 °	150 mcd	Green	2-SMD J-Lead
Lumex Opto/Components Inc. SML-LX23SOC-TR	Surface Mount	3 mm	2 mm	Colorless	Standard	SMD	610 nm	1.4 mm	2 mm	20 mA	Clear	Rectangle with Flat Top	2 V	1.4 mm	90 °	300 mcd		2-SMD J-Lead
Lumex Opto/Components Inc. SML-LX23SRC-TR	Surface Mount	3 mm	2 mm	Colorless	Standard	SMD	660 nm	1.4 mm	2 mm	20 mA	Clear	Rectangle with Flat Top	1.7 V	1.4 mm	90 °	100 mcd	Red	2-SMD J-Lead
Lumex Opto/Components Inc. SML-LX23UWC-TR	Surface Mount	3 mm	2 mm	Colorless	Standard	SMD	550 nm	1.4 mm	2 mm	20 mA	Clear	Rectangle with Flat Top	3.5 V	1.4 mm	120 °	150 mcd	White	2-SMD J-Lead
Lumex Opto/Components Inc. SML-LX23SYC-TR	Surface Mount	3 mm	2 mm	Colorless	Standard	SMD	590 nm	1.4 mm	2 mm	20 mA	Clear	Rectangle with Flat Top	2 V	1.4 mm	90 °	200 mcd	Yellow	2-SMD J-Lead
Lumex Opto/Components Inc. SML-LX23IC-TR	Surface Mount	3 mm	2 mm	Colorless	Standard	SMD	635 nm	1.4 mm	2 mm	20 mA	Clear	Rectangle with Flat Top	2 V	1.4 mm	90 °	20 mcd	Red	2-SMD J-Lead
Lumex Opto/Components Inc. SML-LX23SUGC-TR	Surface Mount	3 mm	2 mm	Colorless	Standard	SMD		1.4 mm	2 mm	20 mA	Clear	Rectangle with Flat Top	2.2 V	1.4 mm	90 °	80 mcd	Green	2-SMD J-Lead
Lumex Opto/Components Inc. SML-LX23SBC-TR	Surface Mount	3 mm	2 mm	Colorless	Standard	SMD	430 nm	1.4 mm	2 mm	20 mA	Clear	Rectangle with Flat Top	3.8 V	1.4 mm	90 °	15 mcd	Blue	2-SMD J-Lead
Lumex Opto/Components Inc. SML-LX23USBC-TR	Surface Mount	3 mm	2 mm	Colorless	Standard	SMD	470 nm	1.4 mm	2 mm	20 mA	Clear	Rectangle with Flat Top	3.5 V	1.4 mm	90 °	60 mcd	Blue	2-SMD
