6609985 Series

Manufacturer: TE Connectivity Corcom Filters

Catalog

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Features	Current Rating - Filter	Mounting Type	Voltage Rating - Appliance Inlet	Connector Type	Approval Agency	Termination	Termination	Termination	Connector Style	Panel Cutout Dimensions	Current Rating - Appliance Inlet	Filter Type	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]
TE Connectivity Corcom Filters 6609985-2	Front or Rear Side Mount	3 A	Flange Panel Mount	250 VAC	Receptacle Male Blades	CSA UL VDE	6.3 mm	Quick Connect	0.25 "	IEC 320-C14	Variable Size	3 A	Filtered (EMI RFI) - Commercial Medical
TE Connectivity Corcom Filters 1-6609985-0		10 A	Panel Mount Snap-In	250 VAC	Receptacle Male Blades	CSA UL VDE	6.3 mm	Quick Connect	0.25 "	IEC 320-C14	Variable Size	10 A	Filtered (EMI RFI) - Commercial	0.031 "	0.79 mm	1.73 mm	0.068 "
TE Connectivity Corcom Filters 6609985-5	Front or Rear Side Mount	15 A	Flange Panel Mount	250 VAC	Receptacle Male Blades	CSA UL VDE	6.3 mm	Quick Connect	0.25 "	IEC 320-C14	Variable Size	15 A	Filtered (EMI RFI) - Commercial Medical
TE Connectivity Corcom Filters 6609985-3	Front or Rear Side Mount	6 A	Flange Panel Mount	250 VAC	Receptacle Male Blades	CSA UL VDE	6.3 mm	Quick Connect	0.25 "	IEC 320-C14	Variable Size	6 A	Filtered (EMI RFI) - Commercial Medical

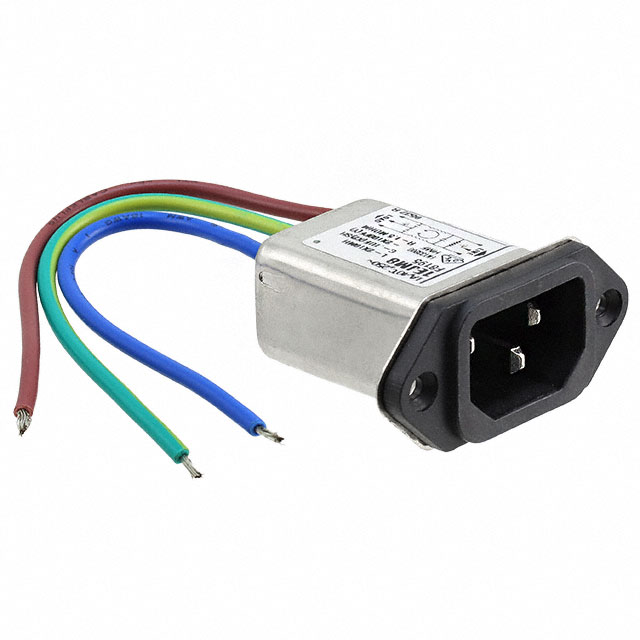

TE Connectivity Corcom Filters 1-6609985-3	Front or Rear Side Mount	1 A	Flange Panel Mount		Receptacle Male Blades	CSA UL VDE		Wire Leads		IEC 320-C14	Variable Size		Filtered (EMI RFI) - Commercial Medical

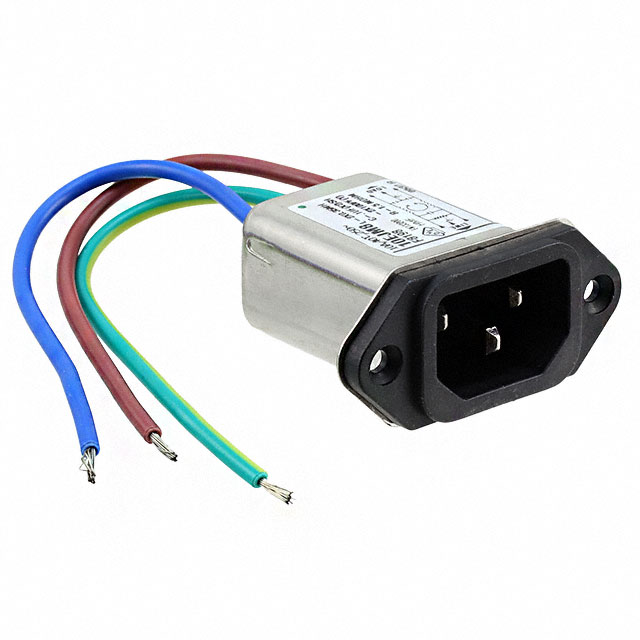

TE Connectivity Corcom Filters 1-6609985-6		10 A	Flange Panel Mount		Receptacle Male Blades			Wire Leads		IEC 320-C14			Filtered (EMI RFI) - Commercial

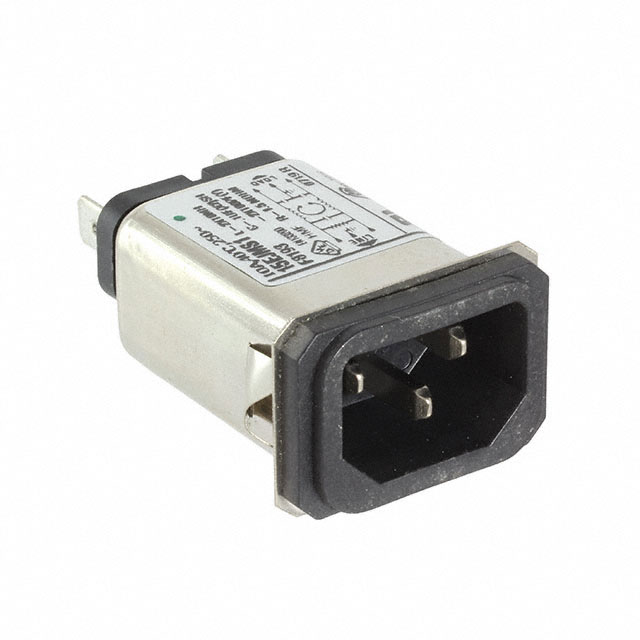

TE Connectivity Corcom Filters 1-6609985-1		15 A	Panel Mount Snap-In		Receptacle Male Blades		6.3 mm	Quick Connect	0.25 "	IEC 320-C14	Variable Size		Filtered (EMI RFI) - Commercial	0.031 "	0.79 mm	1.73 mm	0.068 "
