CWR-130 Series

Catalog

CONN DIP HDR IDC 40POS VERT

Part	Number of Positions Loaded	Wire Gauge	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows [custom]	Row Spacing	Row Spacing	Number of Positions	Connector Type	Board-Side Pitch	Board-Side Pitch	Color	Cable Pitch	Cable Pitch	Features	Contact Finish	Cable Termination	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
CW Industries CWR-130-40-0203	All	Stranded or Solid	27.5 AWG	30 AWG	2	0.6 in	15.24 mm	40	DIP Header Ribbon Cable	2.54 mm	0.1 "	Blue	1.27 mm	0.05 in	Feed Through	Tin	IDC	Through Hole

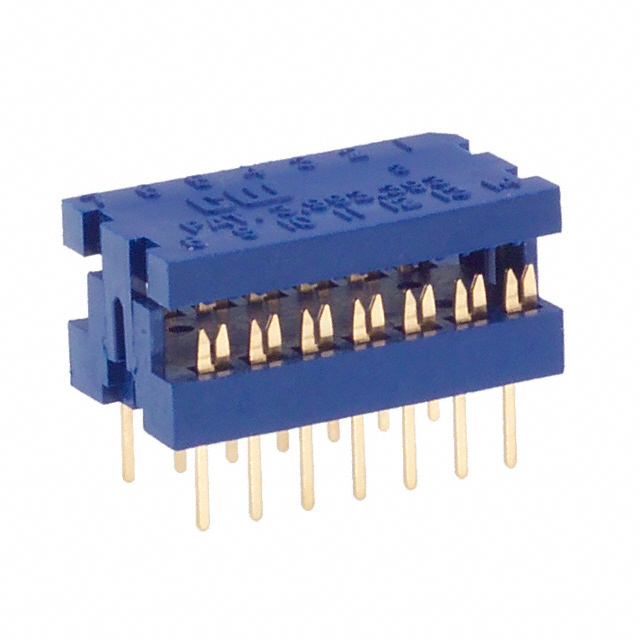

CW Industries CWR-130-14-0000	All	Stranded or Solid	27.5 AWG	30 AWG	2	0.3 in	7.62 mm	14	DIP Header Ribbon Cable	2.54 mm	0.1 "	Blue	1.27 mm	0.05 in	Feed Through	Gold	IDC	Through Hole	0.25 Ám	10 Áin

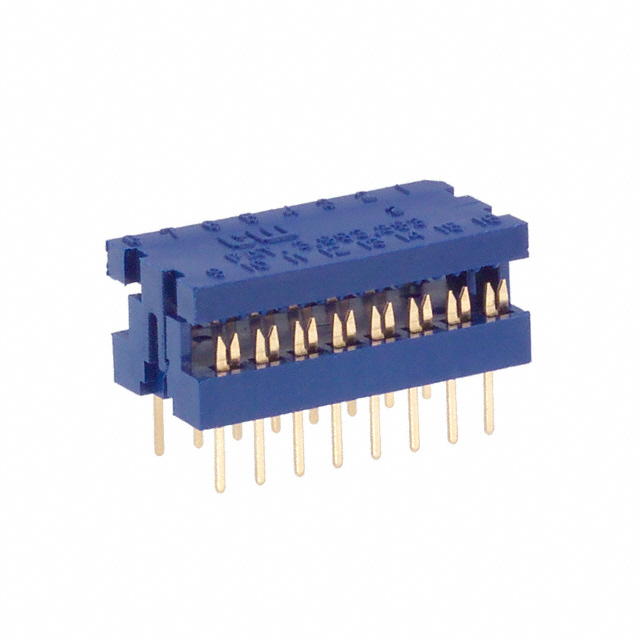

CW Industries CWR-130-16-0000	All	Stranded or Solid	27.5 AWG	30 AWG	2	0.3 in	7.62 mm	16	DIP Header Ribbon Cable	2.54 mm	0.1 "	Blue	1.27 mm	0.05 in	Feed Through	Gold	IDC	Through Hole	0.25 Ám	10 Áin
CW Industries CWR-130-14-0001	All	Stranded or Solid	27.5 AWG	30 AWG	2	0.3 in	7.62 mm	14	DIP Header Ribbon Cable	2.54 mm	0.1 "	Blue	1.27 mm	0.05 in	Feed Through	Gold	IDC	Through Hole	0.76 Ám	30 Áin

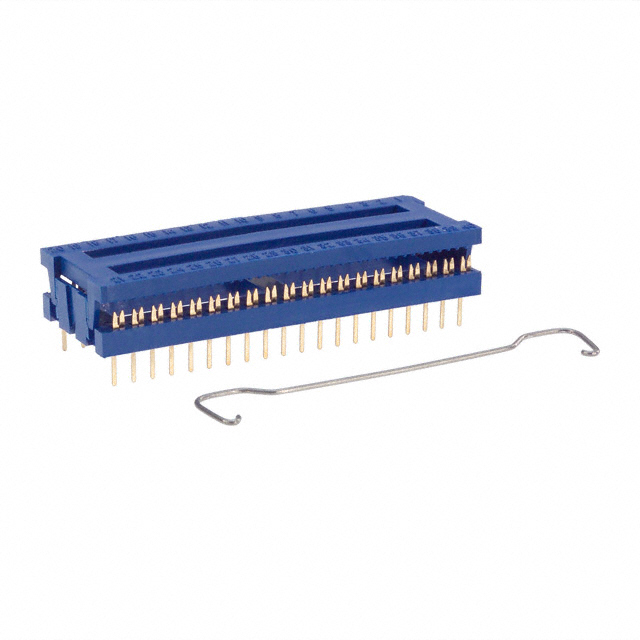

CW Industries CWR-130-40-0000	All	Stranded or Solid	27.5 AWG	30 AWG	2	0.6 in	15.24 mm	40	DIP Header Ribbon Cable	2.54 mm	0.1 "	Blue	1.27 mm	0.05 in	Feed Through	Gold	IDC	Through Hole	0.25 Ám	10 Áin

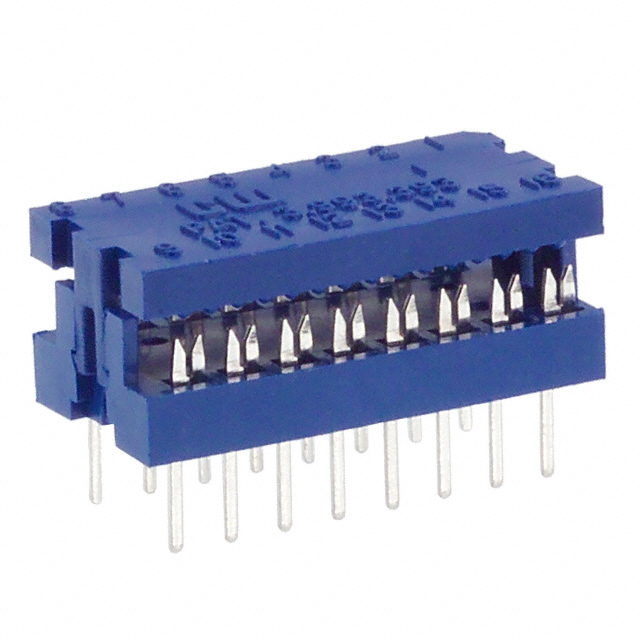

CW Industries CWR-130-16-0203	All	Stranded or Solid	27.5 AWG	30 AWG	2	0.3 in	7.62 mm	16	DIP Header Ribbon Cable	2.54 mm	0.1 "	Blue	1.27 mm	0.05 in	Feed Through	Tin	IDC	Through Hole

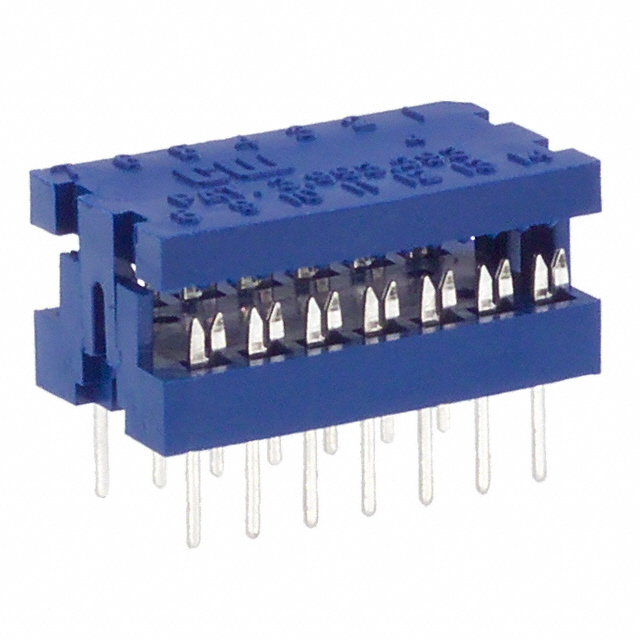

CW Industries CWR-130-14-0203	All	Stranded or Solid	27.5 AWG	30 AWG	2	0.3 in	7.62 mm	14	DIP Header Ribbon Cable	2.54 mm	0.1 "	Blue	1.27 mm	0.05 in	Feed Through	Tin	IDC	Through Hole
CW Industries CWR-130-16-0001	All	Stranded or Solid	27.5 AWG	30 AWG	2	0.3 in	7.62 mm	16	DIP Header Ribbon Cable	2.54 mm	0.1 "	Blue	1.27 mm	0.05 in	Feed Through	Gold	IDC	Through Hole	0.76 Ám	30 Áin

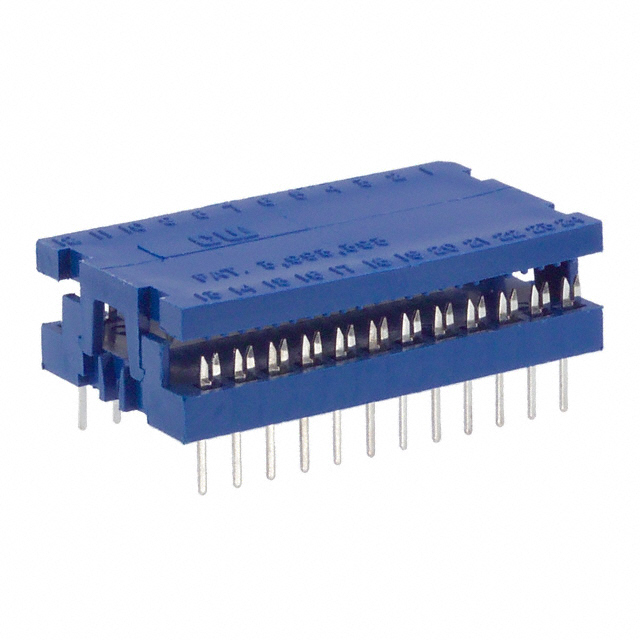

CW Industries CWR-130-24-0203	All	Stranded or Solid	27.5 AWG	30 AWG	2	0.6 in	15.24 mm	24	DIP Header Ribbon Cable	2.54 mm	0.1 "	Blue	1.27 mm	0.05 in	Feed Through	Tin	IDC	Through Hole
