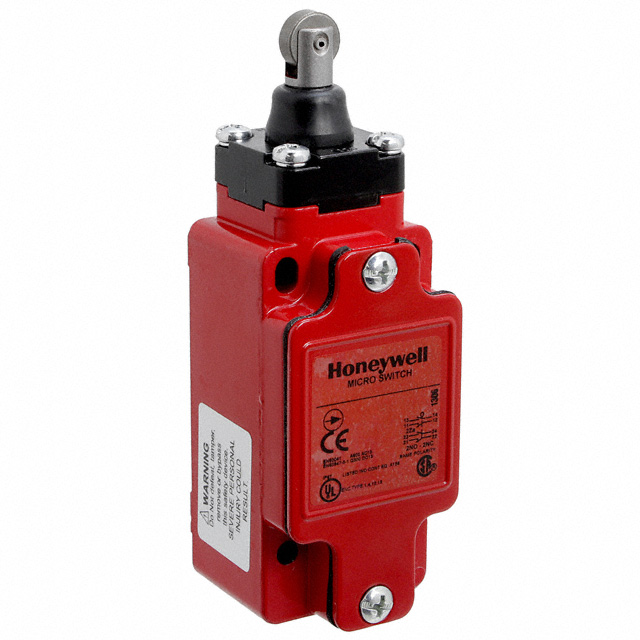

GSAA22 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION 4PST 0.1A 50V
| Part | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Mechanical Life | Operating Force | Voltage Rating - AC | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Electrical Life | Ingress Protection | Termination Style | Differential Travel | Mounting Type | Release Force | Operating Position [x] | Operating Position [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | 4PST-2NO/2NC | Off-Mom On-Mom | 100 mA | 50 VDC | 1000000 Cycles | 33 gf | 50 V | Roller Side Rotary | -25 °C | 80 C | 25000 Steps | IP67 - Dust Tight Waterproof | Screw Terminal | 12 ° | Chassis Mount | |||
 Honeywell Sensing and Productivity Solutions | 4PST-2NO/2NC | Off-Mom On-Mom | 100 mA | 50 VDC | 1632 gf | 50 V | Roller Plunger | -25 °C | 85 °C | IP67 - Dust Tight Waterproof | Screw Terminal | Chassis Mount | 3773 gf | 48 mm | 1.89 in |
