852604 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

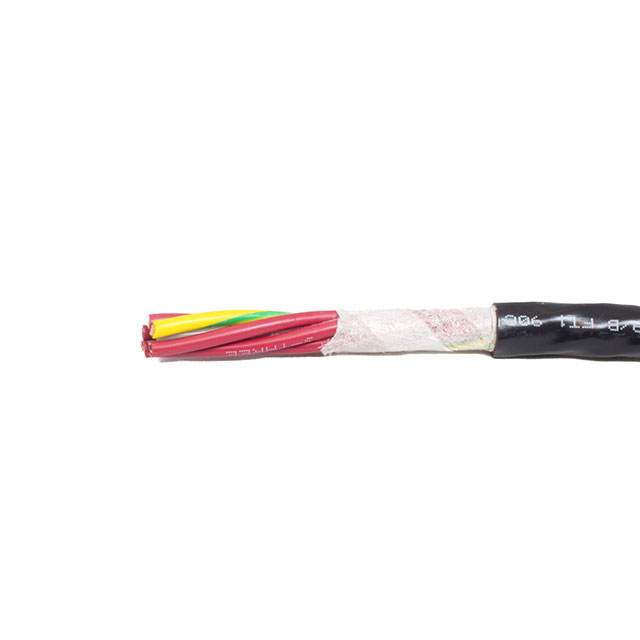

CABLE 4COND 26AWG BLACK
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Conductor Insulation | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Material | Wire Gauge | Ratings | Features | Jacket Color | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.248 " | 6.3 mm | Copper Bare | 0.035 in | 0.889 mm | 4 | Poly-Vinyl Chloride (PVC) | 600 V | 19 | 38 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 26 AWG | UL Style 2587 | Oil Resistant | Black | 304.8 m | 1000 ft | ||
ALPHA WIRE | 0.248 " | 6.3 mm | Copper Bare | 0.035 in | 0.889 mm | 4 | Poly-Vinyl Chloride (PVC) | 600 V | 19 | 38 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 26 AWG | UL Style 2587 | Oil Resistant | Black | ||||
 ALPHA WIRE | 0.248 " | 6.3 mm | Copper Bare | 0.035 in | 0.889 mm | 4 | Poly-Vinyl Chloride (PVC) | 600 V | 19 | 38 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 26 AWG | UL Style 2587 | Oil Resistant | Black | 3.05 m | 10 ft | 100 ft | 30.5 m |
