BZV49/Z Series

Catalog

PWR ENT MOD RCPT IEC320-C20 PNL

Part	Current Rating - Appliance Inlet	Filter Type	Mounting Type	Connector Type	Connector Style	Switch Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material Flammability Rating	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Approval Agency	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]

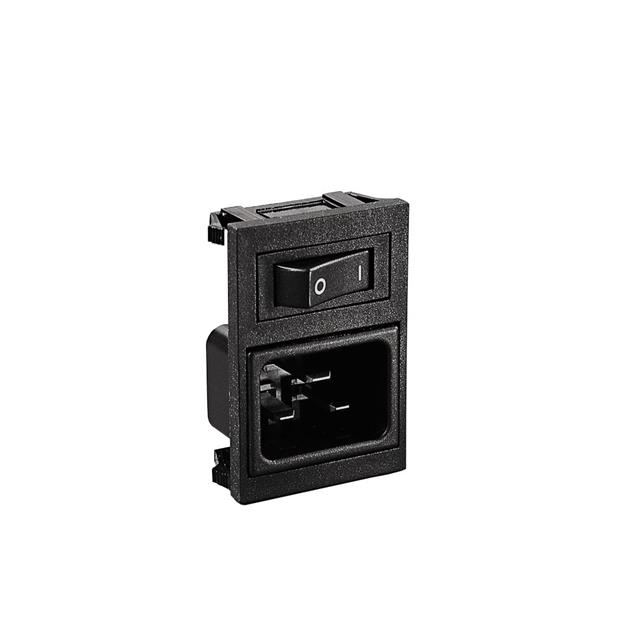

BULGIN LIMITED BZV49/Z0000/74	16 A	Unfiltered - Commercial	Panel Mount Snap-In	Receptacle Male Blades - Module	IEC 320-C20	Illuminated Switch On-Off	34.4 mm	56 mm	UL94 V-0	250 VAC	6.3 mm	Quick Connect	0.25 "	CSA ENEC UL VDE	0.118 in	3 mm	1 mm	0.039 in

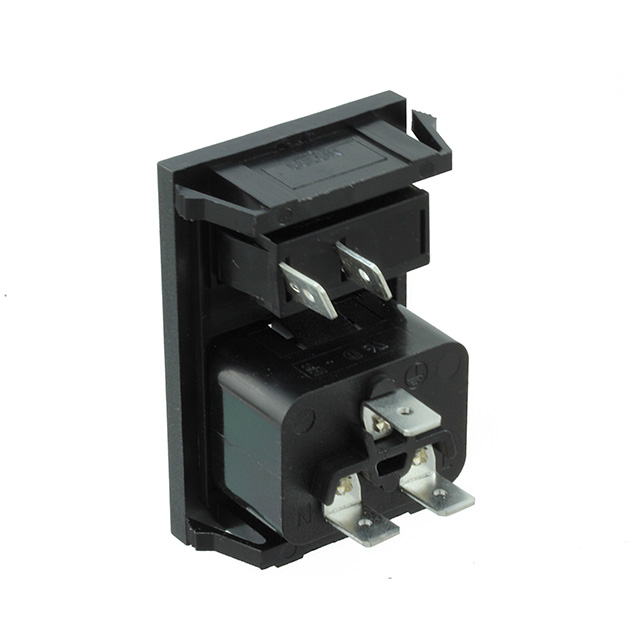

BULGIN LIMITED BZV49/Z0000/98	16 A	Unfiltered - Commercial	Panel Mount Snap-In	Receptacle Male Blades - Module	IEC 320-C20	Switch On-Off	34.4 mm	56 mm	UL94 V-0	250 VAC	6.3 mm	Quick Connect	0.25 "	CSA ENEC UL VDE	0.118 in	3 mm	1 mm	0.039 in
BULGIN LIMITED BZV49/Z0000/01	16 A	Unfiltered - Commercial	Panel Mount Snap-In	Receptacle Male Blades - Module	IEC 320-C20	Switch On-Off	34.4 mm	56 mm	UL94 V-0	250 VAC	6.3 mm	Quick Connect	0.25 "	CSA ENEC UL VDE	0.118 in	3 mm	1 mm	0.039 in
