R40478 Series

Catalog

TERMINATION: TNC M 6 GHZ 150W

Part	Body Material	Dielectric Material	Connector Style	Contact Finish	Frequency - Max [Max]	Mounting Type	Contact Material	Connector Type	Impedance	Body Finish
Radiall USA, Inc. R404782000	Stainless Steel	Polytetrafluoroethylene (PTFE)	TNC	Gold	6000 MHz	Cap Free Hanging	Beryllium Copper	Plug Male Pin	50 Ohms

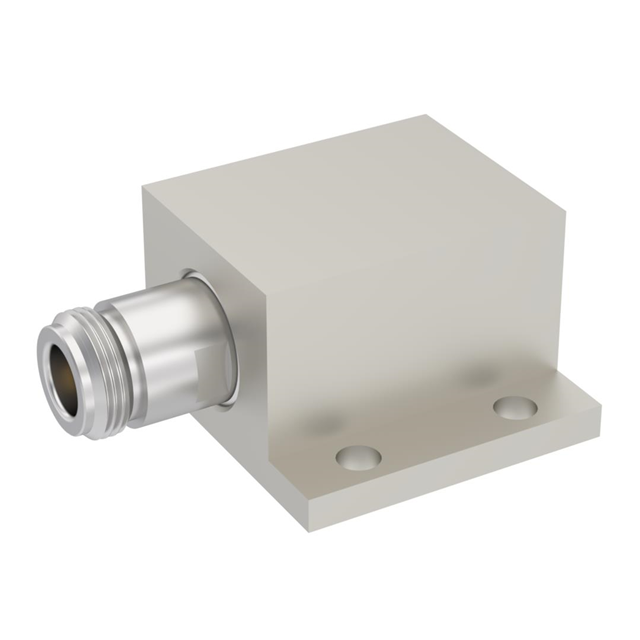

Radiall USA, Inc. R404781120	Brass	Polytetrafluoroethylene (PTFE)	N Type	Gold	6000 MHz	Panel Mount Square Flange	Beryllium Copper	Female Socket Jack	50 Ohms	White Bronze

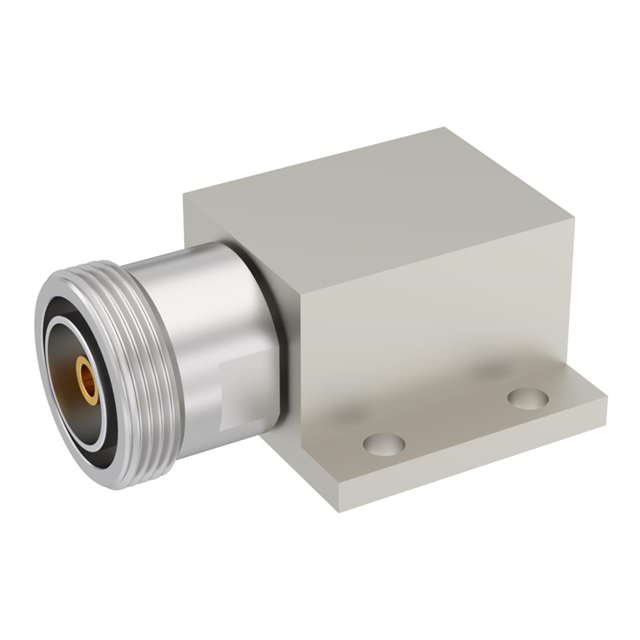

Radiall USA, Inc. R404787120	Brass	Polytetrafluoroethylene (PTFE)	7/16 DIN	Gold	6000 MHz	Panel Mount Square Flange	Beryllium Copper	Female Socket Jack	50 Ohms	White Bronze
Radiall USA, Inc. R404782020	Stainless Steel	Polytetrafluoroethylene (PTFE)	TNC	Gold	6000 MHz	Cap Free Hanging	Beryllium Copper	Plug Male Pin	50 Ohms

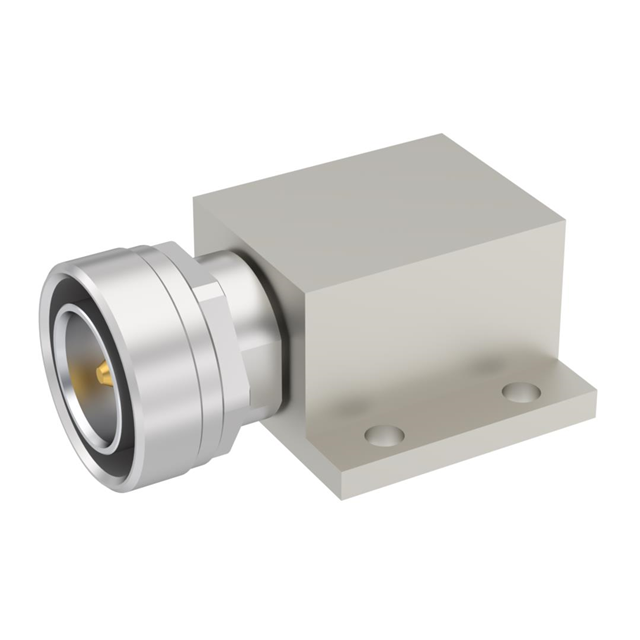

Radiall USA, Inc. R404786120	Brass	Polytetrafluoroethylene (PTFE)	7/16 DIN	Gold	6000 MHz	Panel Mount Square Flange	Beryllium Copper	Plug Male Pin	50 Ohms	White Bronze
Radiall USA, Inc. R404783020	Stainless Steel	Polytetrafluoroethylene (PTFE)	TNC	Gold	6000 MHz	Cap Free Hanging	Beryllium Copper	Female Socket Jack	50 Ohms

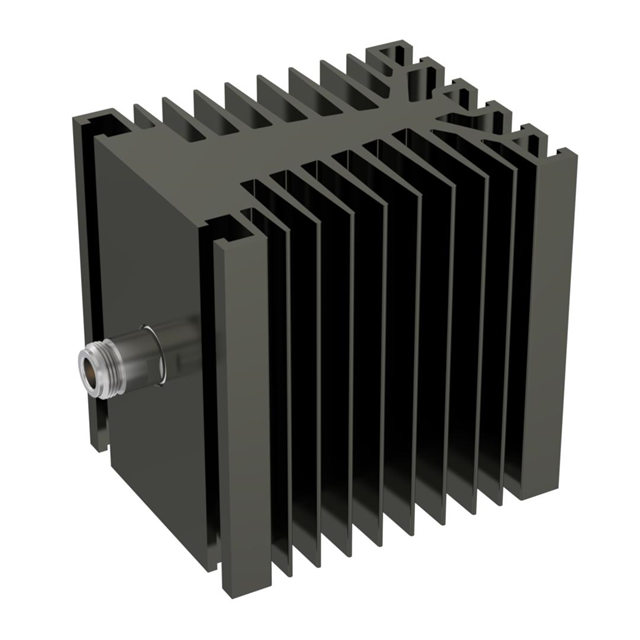

Radiall USA, Inc. R404781000	Brass	Polytetrafluoroethylene (PTFE)	N Type	Gold	6000 MHz	Cap Free Hanging	Beryllium Copper	Female Socket Jack	50 Ohms	White Bronze

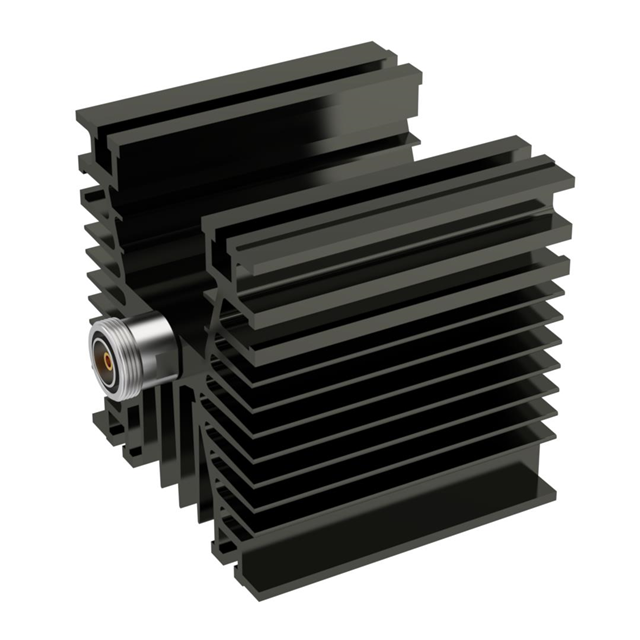

Radiall USA, Inc. R404787020	Brass	Polytetrafluoroethylene (PTFE)	7/16 DIN	Gold	6000 MHz	Cap Free Hanging	Beryllium Copper	Female Socket Jack	50 Ohms	White Bronze

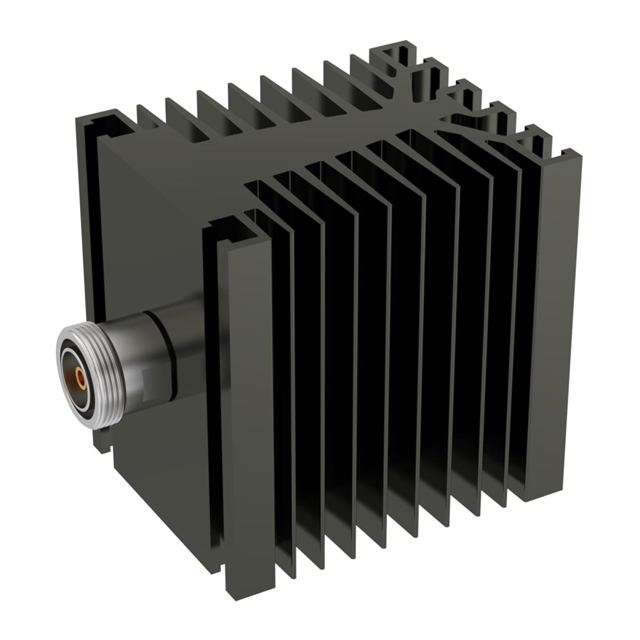

Radiall USA, Inc. R404787000	Brass	Polytetrafluoroethylene (PTFE)	7/16 DIN	Gold	6000 MHz	Cap Free Hanging	Beryllium Copper	Female Socket Jack	50 Ohms	White Bronze

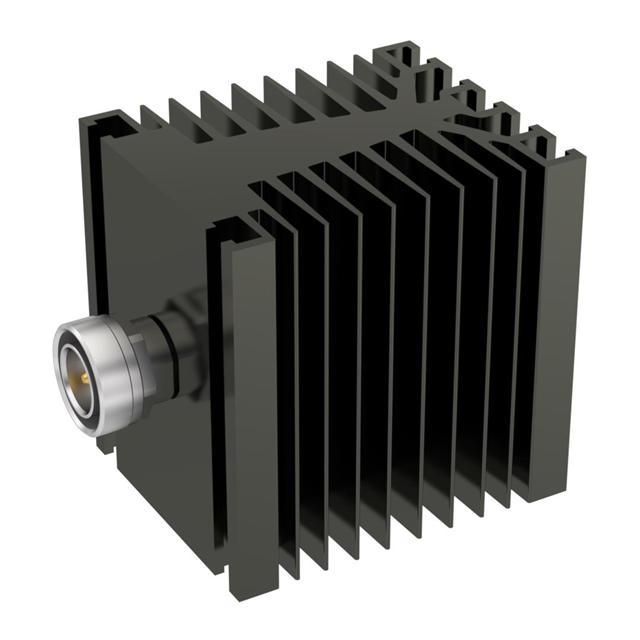

Radiall USA, Inc. R404786000	Brass	Polytetrafluoroethylene (PTFE)	7/16 DIN	Gold	6000 MHz	Cap Free Hanging	Beryllium Copper	Plug Male Pin	50 Ohms	White Bronze
