1469169 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

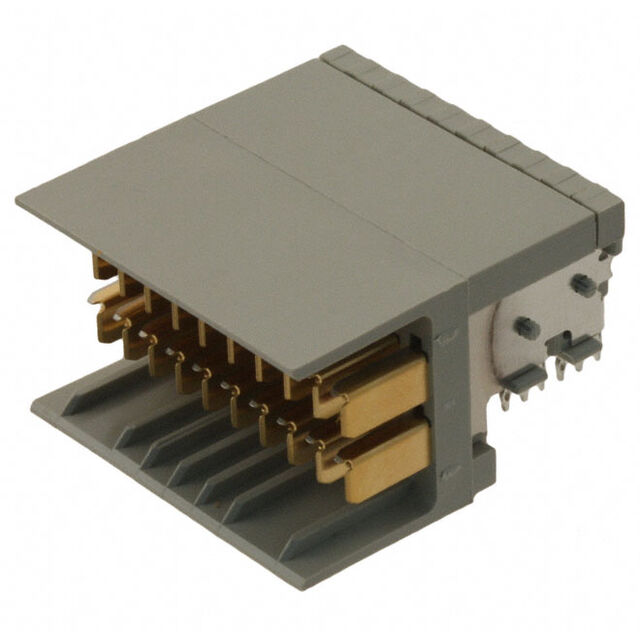

CONN HDR HI SPEED 60POS EDGE MT
| Part | Material Flammability Rating | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Connector Style | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Connector Usage | Connector Usage | Connector Type | Number of Columns | Termination | Voltage Rating | Mounting Type | Number of Positions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | UL94 V-0 | All | -65 ░C | 105 ░C | 0.098 in | 2.5 mm | High Speed | 20 | 40 | Coplanar | Daughtercard | Header Male Pins and Blades | 10 | Press-Fit | 250 VDC | Board Edge Right Angle Through Hole | 60 | Shielded |
