SMR8016C Series

Catalog

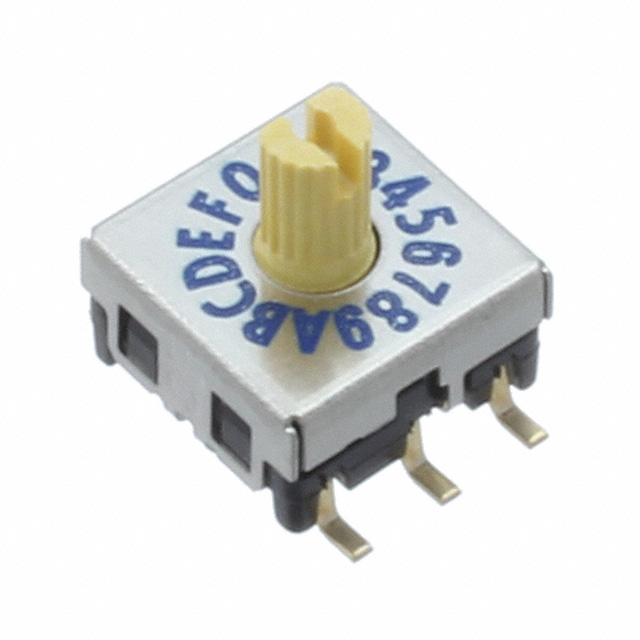

SWITCH ROTARY DIP HEX 0.03A 15V

Part	Mechanical Life	Length	Length	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish	Pitch	Pitch	Actuator Level	Current Rating (Amps)	Number of Positions	Termination Style	Actuator Type	Mounting Type	Circuit	Washable	Height Above Board [z]	Height Above Board [z]
Nidec Components Corporation SMR8016C-1	10000 Steps	0.295 in	7.5 mm	10000 Cycles	85 °C	-25 °C	15 VDC	Gold	2.54 mm	0.1 "	Raised	30 mA	16	Gull Wing	Rotary with Shaft	Surface Mount	Hexadecimal		0.173 in	4.4 mm
