PEC04 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 8POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Insulation Color	Contact Type	Connector Type	Contact Length - Post	Contact Length - Post	Contact Material	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Termination	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Mounting Type	Material Flammability Rating	Fastening Type	Number of Positions Loaded	Style	Insulation Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Height [z]	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]

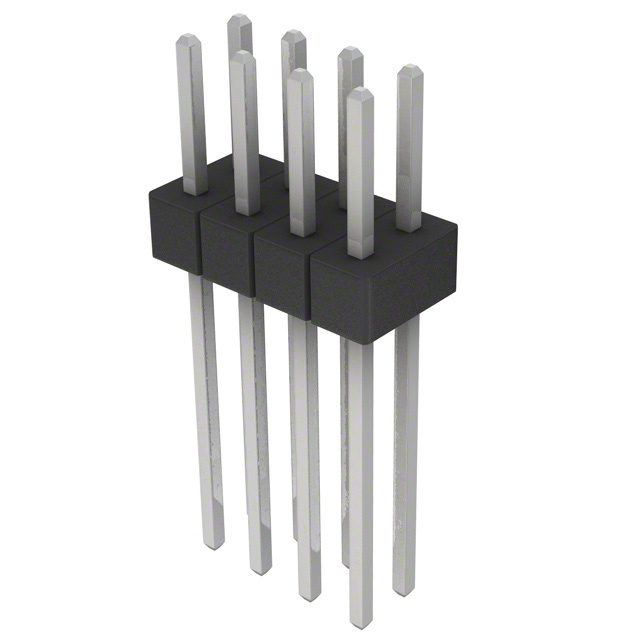

Sullins Connector Solutions PEC04DAEN	2.54 µm	100 µin	0.85 in	21.59 mm	Tin	Black	Male Pin	Header Breakaway	0.52 in	13.21 mm	Phosphor Bronze	0.1 in	2.54 mm	3 A	100 çin	2.54 çm	Unshrouded	Solder	2	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	0.23 in	5.84 mm	Through Hole	UL94 V-0	Push-Pull	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	8	-65 ░C	125 °C

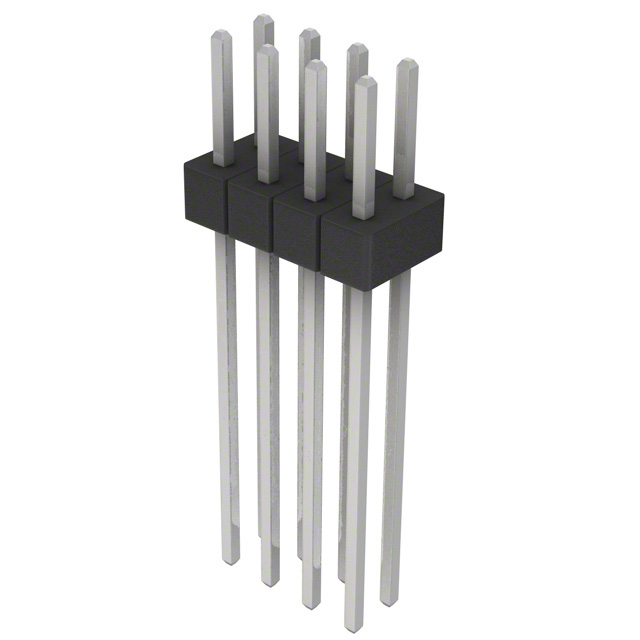

Sullins Connector Solutions PEC04DAGN	2.54 µm	100 µin	1.05 in	26.67 mm	Tin	Black	Male Pin	Header Breakaway	0.72 "	18.29 mm	Phosphor Bronze	0.1 in	2.54 mm	3 A	100 çin	2.54 çm	Unshrouded	Solder	2	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	0.23 in	5.84 mm	Through Hole	UL94 V-0	Push-Pull	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	8	-65 ░C	125 °C
Sullins Connector Solutions PEC04SFEN	2.54 µm	100 µin	0.938 in	23.83 mm	Tin	Black	Male Pin	Header Breakaway	0.52 in	13.21 mm	Phosphor Bronze	0.1 in	2.54 mm	3 A	100 çin	2.54 çm	Unshrouded	Solder				Square	0.1 "	2.54 mm	0.318 in	8.08 mm	Through Hole	UL94 V-0	Push-Pull	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	4	-65 ░C	125 °C	1

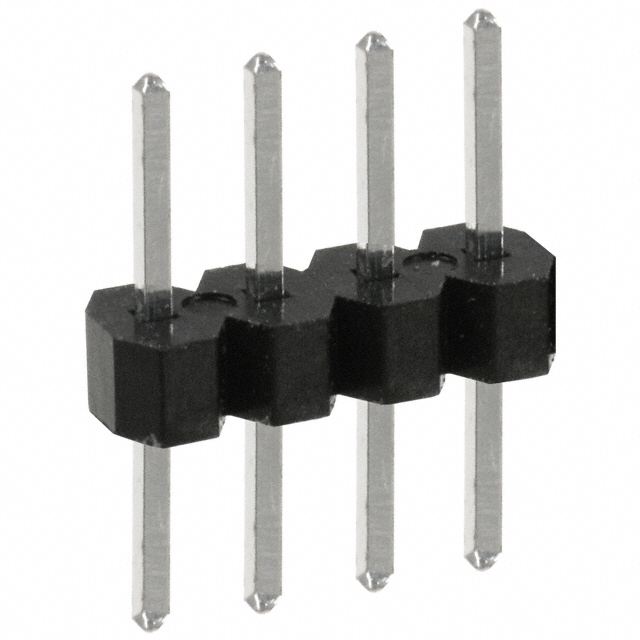

Sullins Connector Solutions PEC04SABN	2.54 µm	100 µin	0.56 in	14.22 mm	Tin	Black	Male Pin	Header Breakaway	0.23 "	5.84 mm	Phosphor Bronze	0.1 in	2.54 mm	3 A	100 çin	2.54 çm	Unshrouded	Solder				Square	0.1 "	2.54 mm	0.23 in	5.84 mm	Through Hole	UL94 V-0	Push-Pull	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	4	-65 ░C	125 °C	1
Sullins Connector Solutions PEC04DAHN	2.54 µm	100 µin	1.15 in	29.21 mm	Tin	Black	Male Pin	Header Breakaway	0.82 in	20.83 mm	Phosphor Bronze	0.1 in	2.54 mm	3 A	100 çin	2.54 çm	Unshrouded	Solder	2	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	0.23 in	5.84 mm	Through Hole	UL94 V-0	Push-Pull	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	8	-65 ░C	125 °C

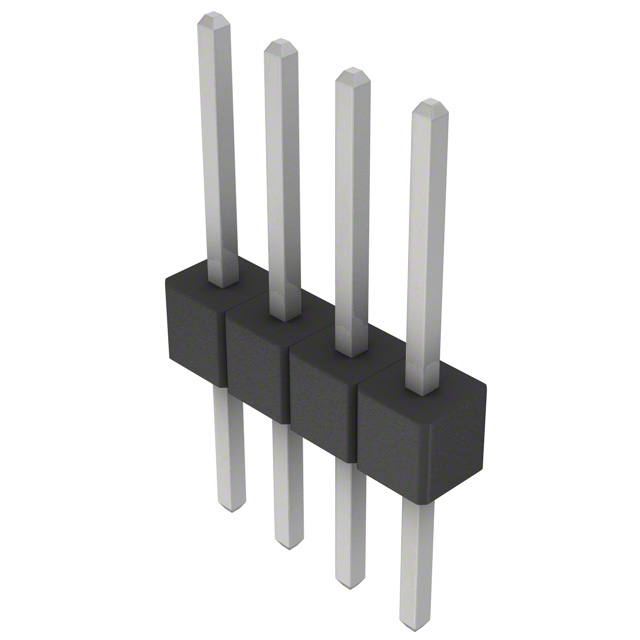

Sullins Connector Solutions PEC04SFBN	2.54 µm	100 µin	0.638 in	16.21 mm	Tin	Black	Male Pin	Header Breakaway	0.22 in	5.58 mm	Phosphor Bronze	0.1 in	2.54 mm	3 A	100 çin	2.54 çm	Unshrouded	Solder				Square	0.1 "	2.54 mm	0.318 in	8.08 mm	Through Hole	UL94 V-0	Push-Pull	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	4	-65 ░C	125 °C	1

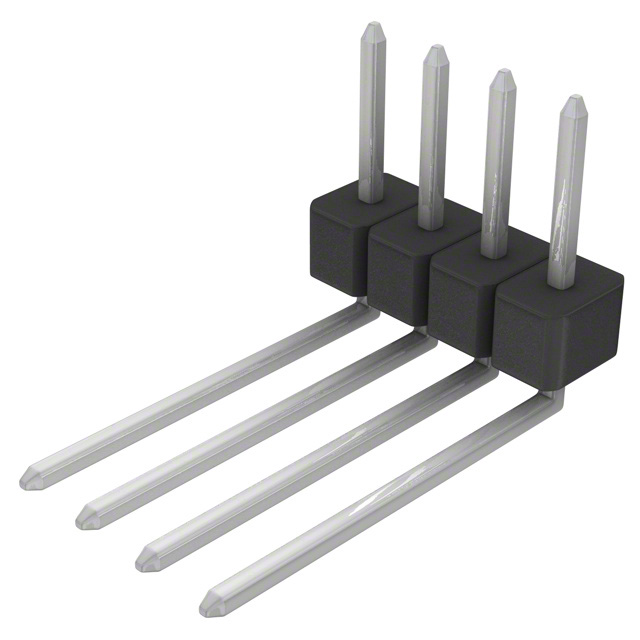

Sullins Connector Solutions PEC04SBEN	2.54 µm	100 µin			Tin	Black	Male Pin	Header Breakaway	0.5 "	12.7 mm	Phosphor Bronze	0.14 in	3.56 mm	3 A	100 çin	2.54 çm	Unshrouded	Solder				Square	0.1 "	2.54 mm	0.23 in	5.84 mm	Right Angle Through Hole	UL94 V-0	Push-Pull	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	4	-65 ░C	125 °C	1

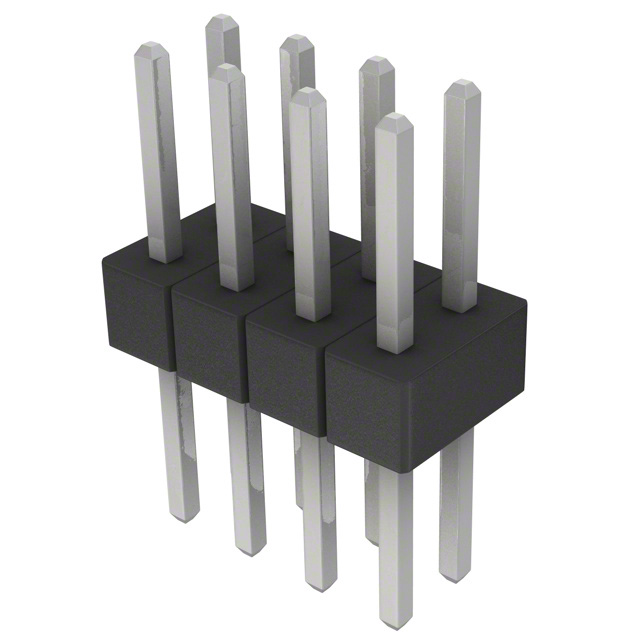

Sullins Connector Solutions PEC04DABN	2.54 µm	100 µin	0.56 in	14.22 mm	Tin	Black	Male Pin	Header Breakaway	0.23 "	5.84 mm	Phosphor Bronze	0.1 in	2.54 mm	3 A	100 çin	2.54 çm	Unshrouded	Solder	2	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	0.23 in	5.84 mm	Through Hole	UL94 V-0	Push-Pull	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	8	-65 ░C	125 °C

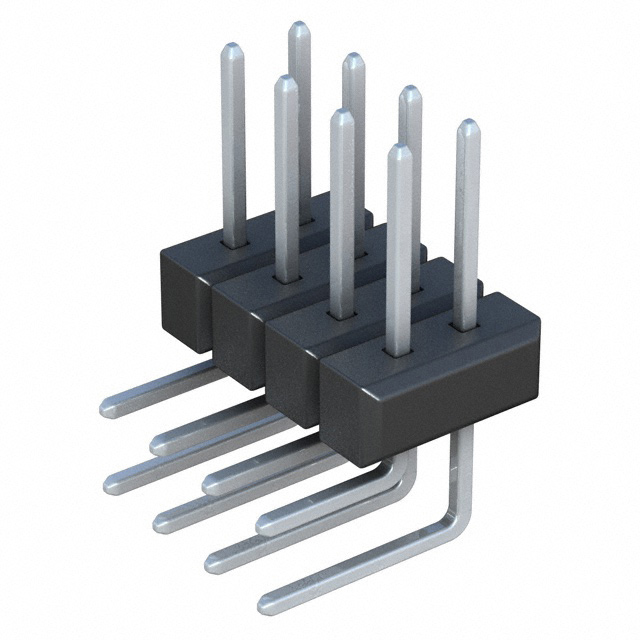

Sullins Connector Solutions PEC04DBAN	2.54 µm	100 µin			Tin	Black	Male Pin	Header Breakaway	0.1 in	2.54 mm	Phosphor Bronze			3 A	100 çin	2.54 çm	Unshrouded	Solder	2	0.1 in	2.54 mm	Square	0.1 "	2.54 mm	0.23 in	5.84 mm	Right Angle Through Hole	UL94 V-0	Push-Pull	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	8	-65 ░C	125 °C		6.1 mm	0.24 in

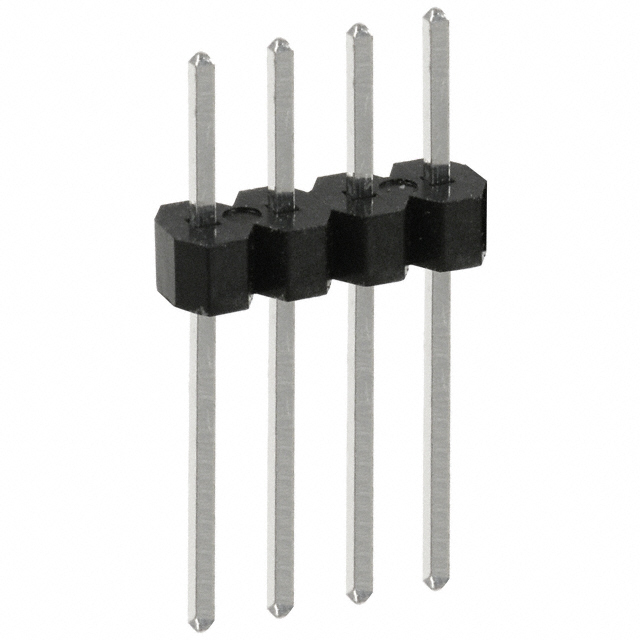

Sullins Connector Solutions PEC04SADN	2.54 µm	100 µin			Tin	Black	Male Pin	Header Breakaway	0.42 in	10.67 mm	Phosphor Bronze	0.1 in	2.54 mm	3 A	100 çin	2.54 çm	Unshrouded	Solder				Square	0.1 "	2.54 mm	0.23 in	5.84 mm	Through Hole	UL94 V-0	Push-Pull	All	Board to Board Cable	Polybutylene Terephthalate (PBT)	4	-65 ░C	125 °C	1			19.05 mm	0.75 in
