AX-SFJK Series

Catalog

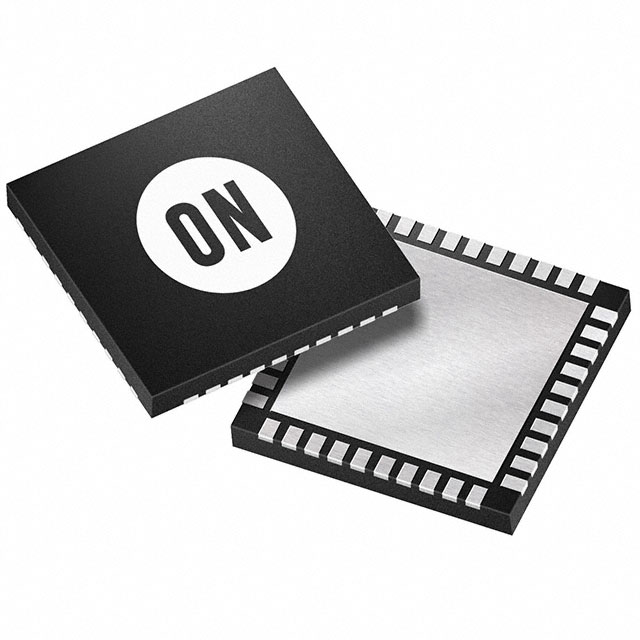

IC RF TXRX+MCU ISM<1GHZ 40QFN

Part	GPIO	Mounting Type	Type	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting	Current - Receiving	Frequency	Serial Interfaces	RF Family/Standard	Supplier Device Package	Package / Case	Data Rate (Max)	Modulation	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	Power - Output
ON Semiconductor AX-SFJK-1-01-TX30	8	Surface Mount	TxRx + MCU	SIGFOX™	85 °C	-40 °C	45 mA	15 mA	922 MHz	SPI UART	General ISM < 1GHz	40-QFN (7x5)	40-VFQFN Exposed Pad	600 bps	FSK GFSK	-126 dBm	3.6 V	1.8 V	13 dBm
ON Semiconductor AX-SFJK-API-1-01-TX30	8	Surface Mount	TxRx + MCU	SIGFOX™	85 °C	-40 °C	45 mA	15 mA	922 MHz	SPI UART	General ISM < 1GHz	40-QFN (7x5)	40-VFQFN Exposed Pad	600 bps	FSK GFSK	-126 dBm	3.6 V	1.8 V	13 dBm
ON Semiconductor AX-SFJK-1-01-TB05	8	Surface Mount	TxRx + MCU	SIGFOX™	85 °C	-40 °C	45 mA	15 mA	922 MHz	UART	General ISM < 1GHz	40-QFN (7x5)	40-VFQFN Exposed Pad	600 bps	FSK GFSK	-126 dBm	3.6 V	1.8 V	13 dBm
