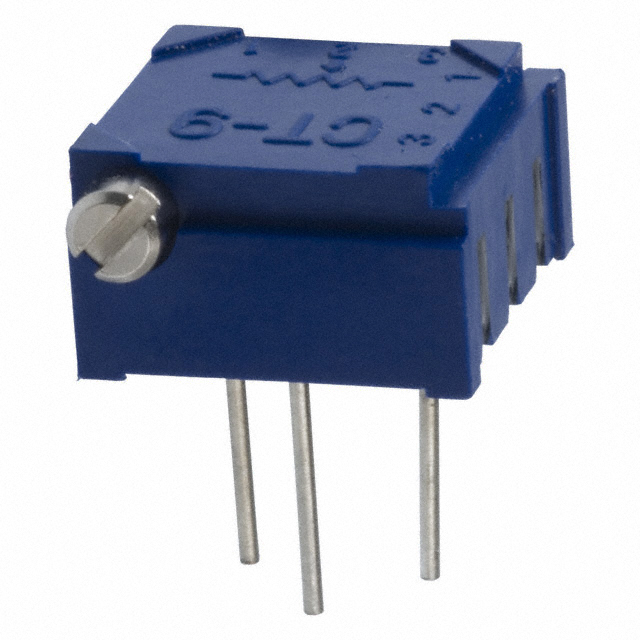

CT9EP Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 50 OHM 0.5W PC PIN SIDE

Part	Power (Watts)	Power (Watts)	Resistive Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Tolerance	Resistance	Adjustment Type	Number of Turns	Mounting Type	Temperature Coefficient	Termination Style
Nidec Components Corporation CT-9EP500	0.5 W	0.5 W	Cermet	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	10 %	50 Ohms	Side Adjustment	18	Through Hole	100 ppm/°C	PC Pins
Nidec Components Corporation CT-9EP205	0.5 W	0.5 W	Cermet	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	10 %	2 MOhms	Side Adjustment	18	Through Hole	100 ppm/°C	PC Pins
Nidec Components Corporation CT-9EP501	0.5 W	0.5 W	Cermet	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	10 %	0.5 kOhms	Side Adjustment	18	Through Hole	100 ppm/°C	PC Pins
Nidec Components Corporation CT-9EP503	0.5 W	0.5 W	Cermet	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	10 %	50000 Ohms	Side Adjustment	18	Through Hole	100 ppm/°C	PC Pins
Nidec Components Corporation CT-9EP103	0.5 W	0.5 W	Cermet	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	10 %	10000 Ohms	Side Adjustment	18	Through Hole	100 ppm/°C	PC Pins
Nidec Components Corporation CT-9EP502	0.5 W	0.5 W	Cermet	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	10 %	5 kOhms	Side Adjustment	18	Through Hole	100 ppm/°C	PC Pins
Nidec Components Corporation CT-9EP203	0.5 W	0.5 W	Cermet	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	10 %	20 kOhms	Side Adjustment	18	Through Hole	100 ppm/°C	PC Pins
Nidec Components Corporation CT-9EP204	0.5 W	0.5 W	Cermet	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	10 %	200000 Ohms	Side Adjustment	18	Through Hole	100 ppm/°C	PC Pins
Nidec Components Corporation CT-9EP100	0.5 W	0.5 W	Cermet	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	10 %	10 Ohms	Side Adjustment	18	Through Hole	250 ppm/°C	PC Pins
Nidec Components Corporation CT-9EP202	0.5 W	0.5 W	Cermet	0.378 in	9.6 mm	0.378 in	Face	9.6 mm	10 %	2 kOhms	Side Adjustment	18	Through Hole	100 ppm/°C	PC Pins
