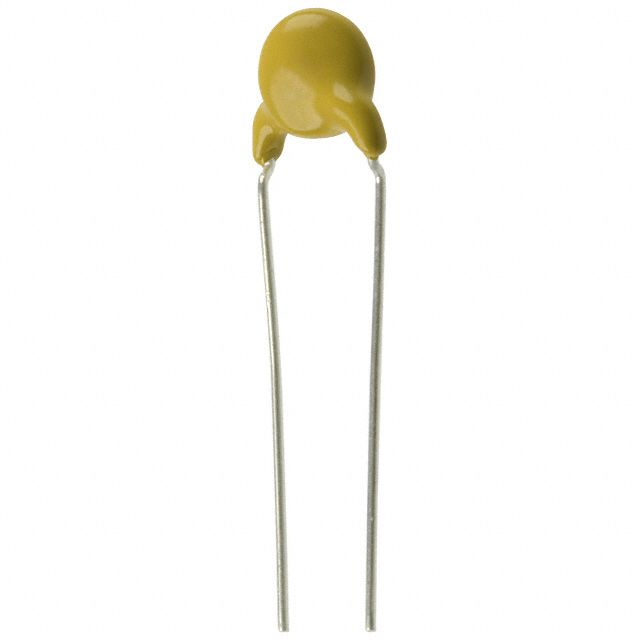

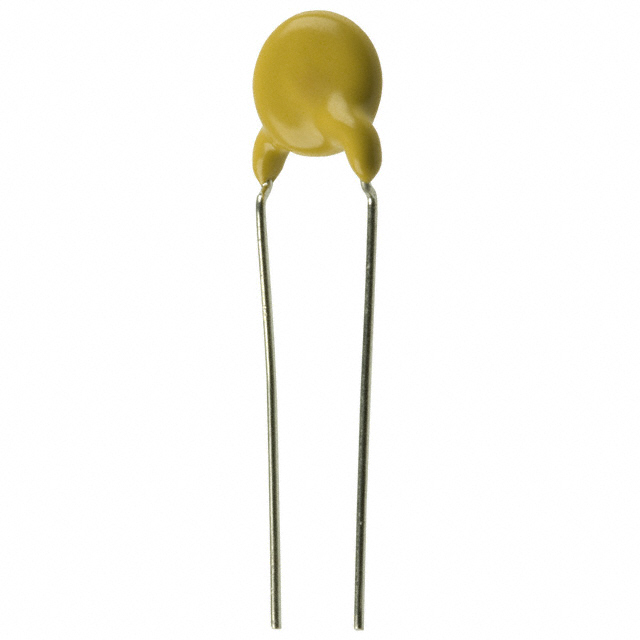

ECK-D3 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP CER 3900PF 1KV Y5P RADIAL

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Lead Style	Features	Tolerance	Voltage - Rated	Voltage - Rated	Applications	Capacitance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

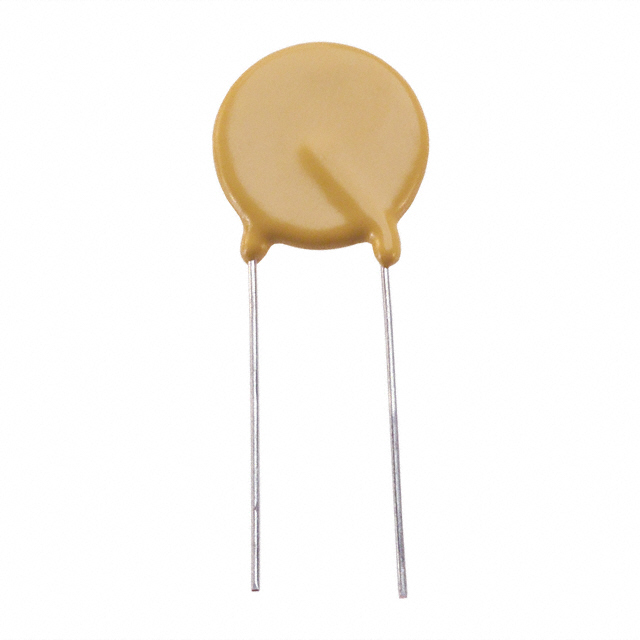

Panasonic Electronic Components ECK-D3A392KBP	0.531 in	13.5 mm	Y5P (B)	-25 °C	125 °C	Straight	High Voltage	10 %	1 kV	1000 V	General Purpose	3900 pF	0.394 in	10 mm	17.5 mm	0.689 in	Through Hole	Disc Radial

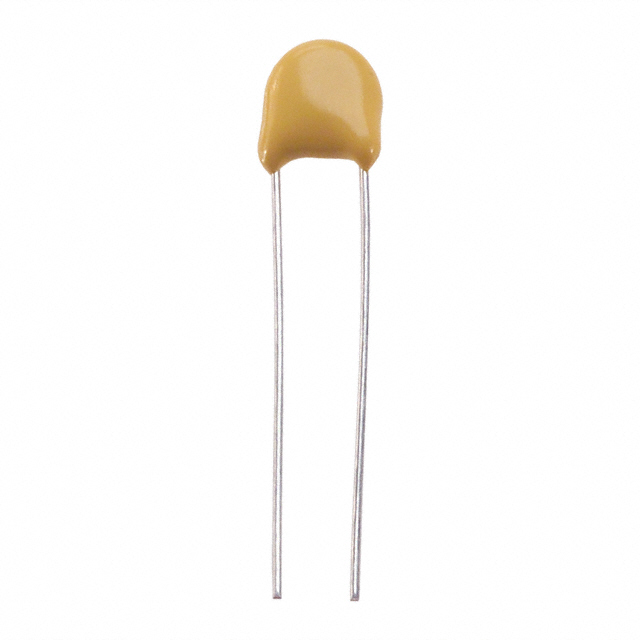

Panasonic Electronic Components ECK-D3A272KBP	0.472 "	12 mm	Y5P (B)	-25 °C	125 °C	Straight	High Voltage	10 %	1 kV	1000 V	General Purpose	2700 pF	0.197 "	5 mm		16 mm	Through Hole	Disc Radial	0.63 in
Panasonic Electronic Components ECK-D3D222KBP			Y5P (B)	-25 °C	125 °C	Straight	High Voltage	10 %	2 kV	2000 V	General Purpose	2200 pF	0.394 in	10 mm		18 mm	Through Hole	Disc Radial	0.709 in
Panasonic Electronic Components ECK-D3F391KBP	0.354 in	9 mm	Y5P (B)	-25 °C	125 °C	Straight	High Voltage	10 %	3 kV	3000 V	General Purpose	390 pF	0.295 in	7.5 mm		13 mm	Through Hole	Disc Radial	0.512 "
Panasonic Electronic Components ECK-D3A391KBP	0.236 in	6 mm	Y5P (B)	-25 °C	125 °C	Straight	High Voltage	10 %	1 kV	1000 V	General Purpose	390 pF	0.197 "	5 mm			Through Hole	Disc Radial		10 mm	0.394 in
Panasonic Electronic Components ECK-D3F221KBP	0.295 in	7.5 mm	Y5P (B)	-25 °C	125 °C	Straight	High Voltage	10 %	3 kV	3000 V	General Purpose	220 pF	0.295 in	7.5 mm			Through Hole	Disc Radial		0.453 in		11.5 mm
Panasonic Electronic Components ECK-D3A222KBP	0.472 "	12 mm	Y5P (B)	-25 °C	125 °C	Straight	High Voltage	10 %	1 kV	1000 V	General Purpose	2200 pF	0.197 "	5 mm		16 mm	Through Hole	Disc Radial	0.63 in
Panasonic Electronic Components ECK-D3A471KBP	0.236 in	6 mm	Y5P (B)	-25 °C	125 °C	Straight	High Voltage	10 %	1 kV	1000 V	General Purpose	470 pF	0.197 "	5 mm			Through Hole	Disc Radial		10 mm	0.394 in
Panasonic Electronic Components ECK-D3F271KBP	0.295 in	7.5 mm	Y5P (B)	-25 °C	125 °C	Straight	High Voltage	10 %	3 kV	3000 V	General Purpose	270 pF	0.295 in	7.5 mm			Through Hole	Disc Radial		0.453 in		11.5 mm
Panasonic Electronic Components ECK-D3D101KBP	0.276 in	7 mm	Y5P (B)	-25 °C	125 °C	Straight	High Voltage	10 %	2 kV	2000 V	General Purpose	100 pF	0.295 in	7.5 mm		11 mm	Through Hole	Disc Radial	0.433 in
