TR9KE13330 Series
Manufacturer: GlobTek, Inc.
Catalog

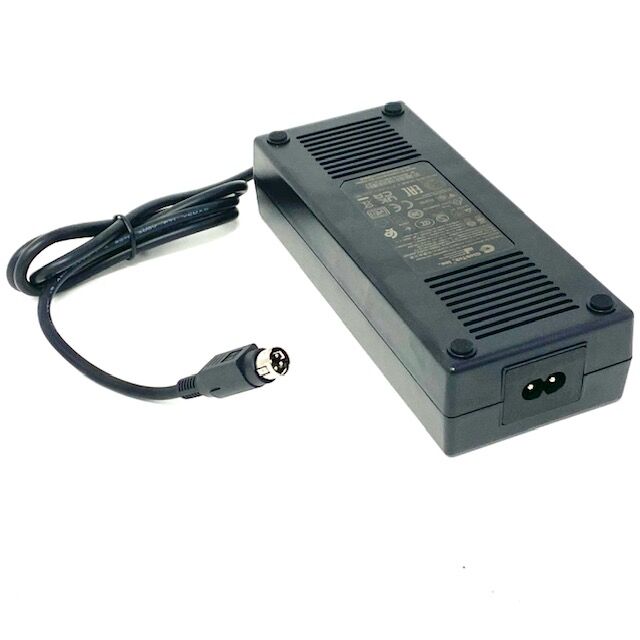

AC/DC DESKTOP ADAPTER 12V 160W
| Part | Region Utilized | Voltage - Input [Max] | Voltage - Input [Min] | No Load Power Consumption | Power (Watts) | Form | Current - Output (Max) [Max] | Cord Length | Cord Length | Approval Agency | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Input Connector | Voltage - Output | Input Type | Output Connector | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Applications | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | International | 264 VAC | 90 VAC | 150 mW | 160 W | Desktop (Class II) | 13.33 A | 1 m | 39.4 in | CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI | 60335-1 60601-1-11 60601-1-2 60950-1 62368-1 | 40 °C | -10 °C | IEC 320-C8 | 12 V | Cord (Sold Separately) | Power DIN 4 Pin | 6.95 in | 176.5 mm | 74 mm | 2.91 in | 40 mm | 1.58 in | Household Appliances ITE (Commercial) Medical | CoC Tier 2 Level VI |
