FD2D024 Series
Manufacturer: Belden Inc.
Beta
⌘K

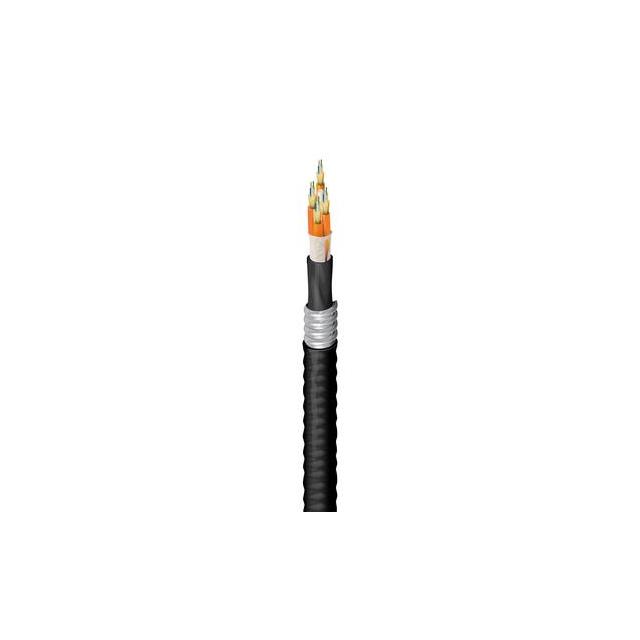

CBL FIBER OPTIC 125UM MULTIMODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Style | Cladding Diameter [diameter] | Jacket (Insulation) Material | Core Diameter [diameter] | Features | Type | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Tensile Strength | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | -40 C | OFNP | Multiple Fibers | 125 µm | Poly-Vinyl Chloride (PVC) | 50 µm | 24 Fibers | Multimode | Black | 0.527 " | 13.39 mm | 81.6 kg | |
 Belden Inc. | 70 °C | -40 C | OFNR | Multiple Fibers | 125 µm | Poly-Vinyl Chloride (PVC) | 50 µm | 24 Fibers | Multimode | Black | 0.325 in | 8.26 mm | 40.8 kg | |
 Belden Inc. | 70 °C | -40 C | OFCR | Multiple Fibers | 125 µm | Poly-Vinyl Chloride (PVC) | 50 µm | Armored | Multimode | Black | 0.96 in | 24.38 mm | 81.6 kg | 24 |
Belden Inc. | 70 °C | -40 C | OFNP | Multiple Fibers | 125 µm | Poly-Vinyl Chloride (PVC) | 50 µm | 24 Fibers | Multimode | Black | 0.33 in | 8.38 mm | 40.8 kg | |
 Belden Inc. | 70 °C | -40 C | OFCR | Multiple Fibers | 125 µm | Poly-Vinyl Chloride (PVC) | 50 µm | Armored | Multimode | Black | 0.6 in | 15.24 mm | 40.8 kg | 24 |
 Belden Inc. | ||||||||||||||
Belden Inc. | 70 °C | -40 C | OFNR | Multiple Fibers | 125 µm | Poly-Vinyl Chloride (PVC) | 50 µm | 24 Fibers | Multimode | Black | 0.562 in | 14.27 mm | 81.6 kg |
