M2011BB Series

Catalog

SWITCH TOGGLE SPST 6A 125V

Part	Actuator Material	Electrical Life	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Switch Function	Features	Voltage Rating - DC	Circuit	Bushing Thread	Termination Style	Actuator Length [x]	Current Rating (Amps)	Actuator Type	Ingress Protection	Illumination	Voltage Rating - AC
NKK Switches M2011BB3W01	Brass Chrome Plated	25000 Steps	12.5 mm	85 °C	-30 ░C	Panel Mount	On-Off	Epoxy Sealed Terminals	30 V	SPST	M12 x 1	Solder Lug	11.5 mm	4 A 6 A	Standard Round	IP67 - Dust Tight Waterproof	Non-Illuminated	125 V

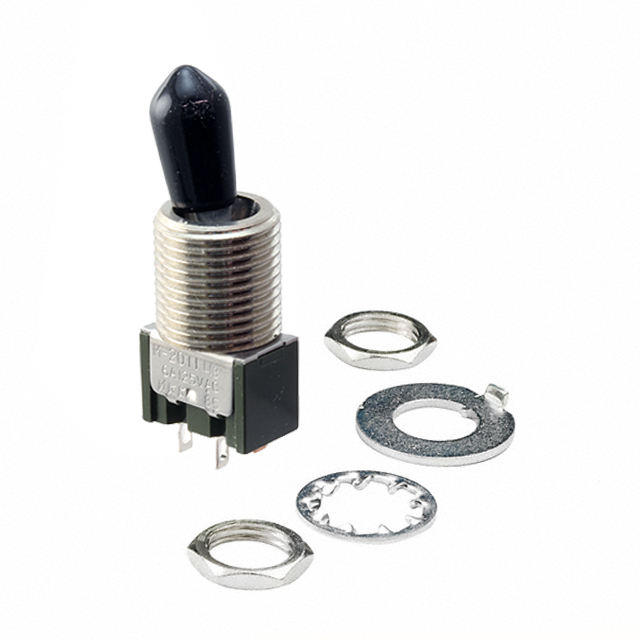

NKK Switches M2011BB1W01-RA	Brass Chrome Plated	25000 Steps	12.5 mm	85 °C	-30 ░C	Panel Mount	On-Off	Black Cap	30 V	SPST	M12 x 1	Solder Lug	12.3 mm	4 A 6 A	Standard Round with Cap		Non-Illuminated	125 V
NKK Switches M2011BB1A01	Brass Chrome Plated	25000 Steps	12.5 mm	85 °C	-30 ░C	Panel Mount	On-Off	Epoxy Sealed Terminals	30 V	SPST	M12 x 1	Solder Lug	11.5 mm	4 A 6 A	Standard Round		Non-Illuminated	125 V

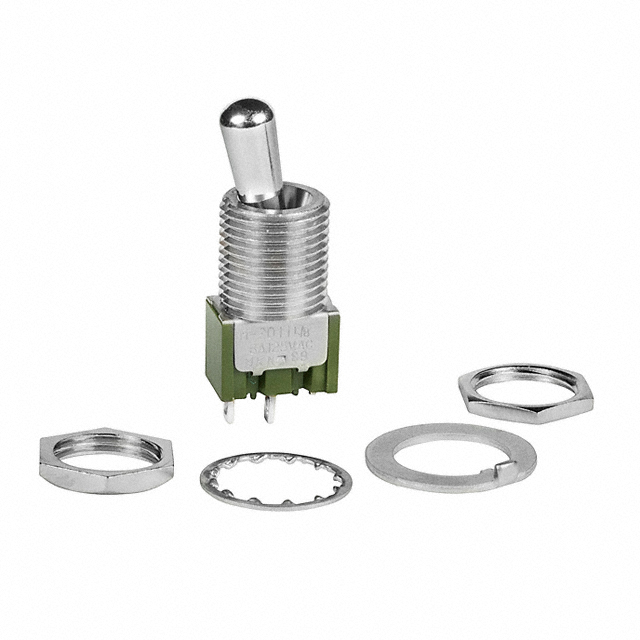

NKK Switches M2011BB1W01	Brass Chrome Plated	25000 Steps	12.5 mm	85 °C	-30 ░C	Panel Mount	On-Off	Epoxy Sealed Terminals	30 V	SPST	M12 x 1	Solder Lug	11.5 mm	4 A 6 A	Standard Round		Non-Illuminated	125 V
