79101 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

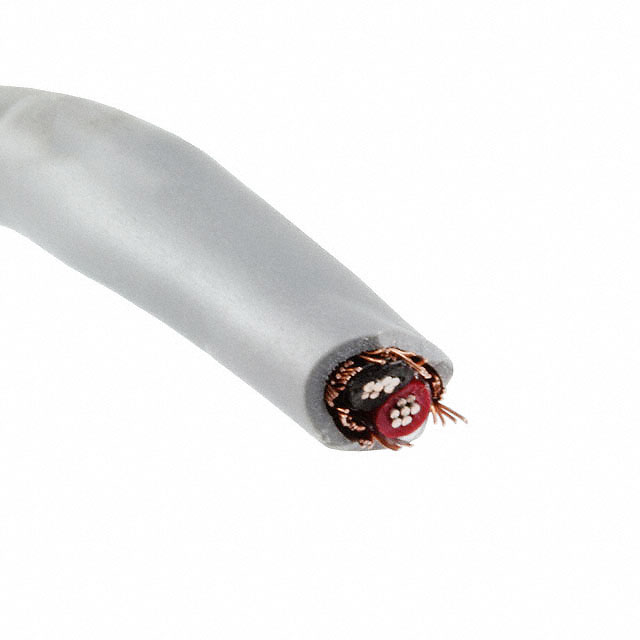

ECOGEN ECOFLEX 20AWG 2COND BRAID MPPE 79101 SL 199 BULK FT
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Conductor Material | Voltage | Conductor Insulation | Wire Gauge | Jacket (Insulation) Material | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Ratings | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | 5.33 mm | 0.21 in | Biological Compatibility | Copper Tinned | 600 V | Polyphenylene Ether Modified (mPPE) | 20 AWG | Polyphenylene Ether Modified (mPPE) | Slate | -40 C | 105 ░C | Multi-Conductor | 10 | 30 AWG | 2 | 0.035 in | 0.889 mm | Braid | ISO 10993 | ||||
ALPHA WIRE | 85 % | Copper Tinned | 5.33 mm | 0.21 in | Biological Compatibility | Copper Tinned | 600 V | Polyphenylene Ether Modified (mPPE) | 20 AWG | Polyphenylene Ether Modified (mPPE) | Slate | -40 C | 105 ░C | Multi-Conductor | 10 | 30 AWG | 2 | 0.035 in | 0.889 mm | Braid | ISO 10993 | 100 ft | 30.5 m | ||
ALPHA WIRE | 85 % | Copper Tinned | 5.33 mm | 0.21 in | Biological Compatibility | Copper Tinned | 600 V | Polyphenylene Ether Modified (mPPE) | 20 AWG | Polyphenylene Ether Modified (mPPE) | Slate | -40 C | 105 ░C | Multi-Conductor | 10 | 30 AWG | 2 | 0.035 in | 0.889 mm | Braid | ISO 10993 | 304.8 m | 1000 ft |
