ST123 Series
Manufacturer: E-Switch
Beta
⌘K

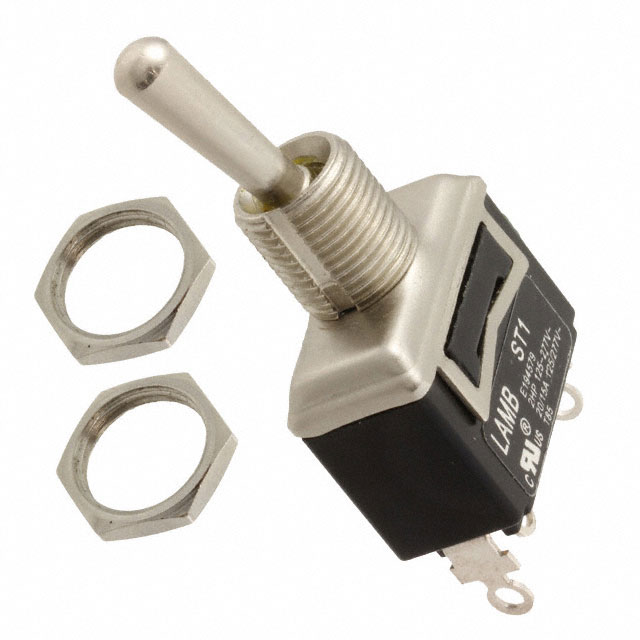

SWITCH TOGGLE SPDT 20A 125V
| Part | Electrical Life | Actuator Material | Mounting Type | Illumination | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Actuator Type | Termination Style | Circuit | Actuator Length [x] | Bushing Thread | Voltage Rating - AC | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 6000 Cycles | Brass Nickel Plated | Panel Mount | Non-Illuminated | 0 °C | 85 °C | 12 mm | 20 A | Standard Round | Solder Lug | SPDT | 19.5 mm | M12 x 1 | 125 V | On-On |
