DAC81416 Series
Manufacturer: Texas Instruments
Beta
⌘K
16-CHANNEL 16-BIT HIGH-VOLTAGE OUTPUT DAC WITH INTEGRATED INTERNAL REFERENCE
| Part | Differential Output | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Number of Bits | Data Interface | Mounting Type | Output Type | INL/DNL (LSB) | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Reference Type | Package / Case | Settling Time | Architecture | Supplier Device Package | Number of D/A Converters | Utilized IC / Part | Number of DAC's | DAC Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 125 °C | -40 °C | 5.5 V | 4.5 V | 16 | DSP SPI | Surface Mount | Voltage - Buffered | 0.5 LSB | 5.5 V | 4.5 V | Internal | 40-VFQFN Exposed Pad | 12 µs | R-2R | 40-VQFN (6x6) | 16 D/A Converters | |||||
Texas Instruments | 125 °C | -40 °C | 5.5 V | 4.5 V | 16 | Serial | Surface Mount | 0.5 LSB 1 LSB | 5.5 V | 4.5 V | Internal | 40-VFQFN Exposed Pad | 12 µs | R-2R | 40-VQFN (6x6) | |||||||

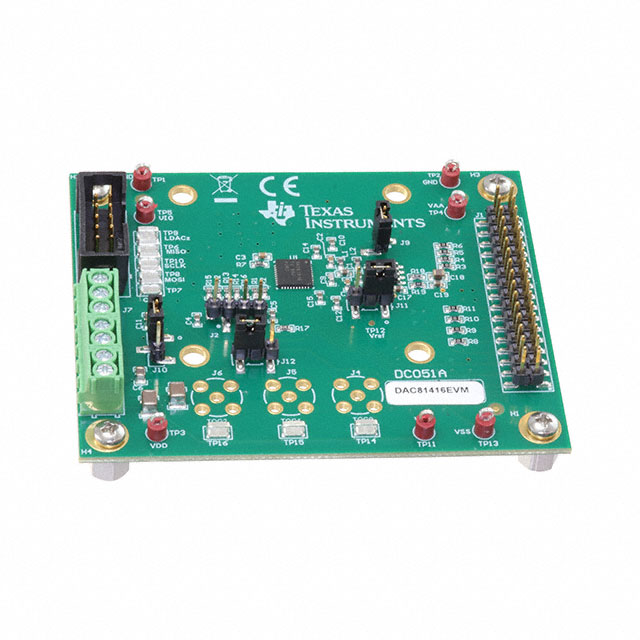

 Texas Instruments | 16 | Serial SPI | 20 µs | DAC81416 | 16 | Voltage | Board(s) |
