284040 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 7POS 270DEG 5MM

Part	Plug Wire Entry	Number of Positions	Color	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Number of Levels	Termination Style	Mounting Type	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Voltage - UL	Contact Mating Finish	Wire Strip Length [Max]	Wire Strip Length [Min]	Pitch [x]	Pitch [x]	Torque - Screw	Torque - Screw	Screw Size	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Material Flammability Rating	Type	Insulation Height	Insulation Height	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
TE Connectivity Raychem Cable Protection 284040-7	270 °	7	Green	3 mm˛	0.05 mm˛	1	Screw - Rising Cage Clamp	Free Hanging (In-Line)	7	-40 °C	110 °C	Phosphor Bronze	300 V	Tin	7.5 mm	6 mm	5 mm	0.197 in	0.79 Nm	7 Lb-In	M3	30 AWG	12 AWG	UL94 V-0	Plug Female Sockets	25 mm	0.984 in

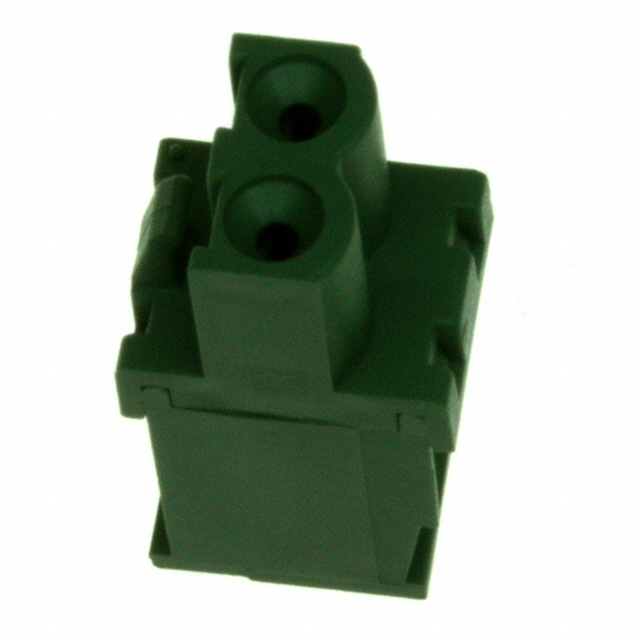

TE Connectivity Raychem Cable Protection 284040-2	270 °	2	Green			1	Screw - Rising Cage Clamp	Free Hanging (In-Line)	2	-40 °C	110 °C	Phosphor Bronze	300 V	Tin	7.5 mm	6 mm	5 mm	0.197 in	0.79 Nm	7 Lb-In	M3	30 AWG	12 AWG	UL94 V-0	Plug Female Sockets	25 mm	0.984 in	0.05 mm²	3 mm²
TE Connectivity Raychem Cable Protection 284040-9	270 °	9	Green			1	Screw - Rising Cage Clamp	Free Hanging (In-Line)	9	-40 °C	110 °C	Phosphor Bronze	300 V	Tin	7.5 mm	6 mm	5 mm	0.197 in	0.79 Nm	7 Lb-In	M3	30 AWG	12 AWG	UL94 V-0	Plug Female Sockets	25 mm	0.984 in	0.05 mm²	3 mm²

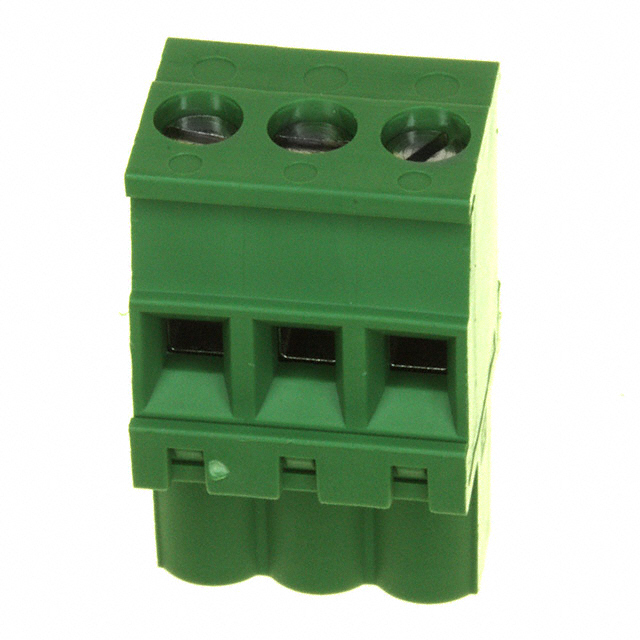

TE Connectivity Raychem Cable Protection 284040-3	270 °		Green			1	Screw - Rising Cage Clamp	Free Hanging (In-Line)	3	-40 °C	110 °C	Phosphor Bronze	300 V	Tin	7.5 mm	6 mm	5 mm	0.197 in	0.79 Nm	7 Lb-In	M3	30 AWG	12 AWG	UL94 V-0	Plug Female Sockets	25 mm	0.984 in	0.05 mm²	3 mm²
