A7WXB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CABLE D-SUB - AFU15B/AE15M/X

Part	Contact Finish	1st Connector	2nd Connector	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Positions	Color	Length	Length	Type

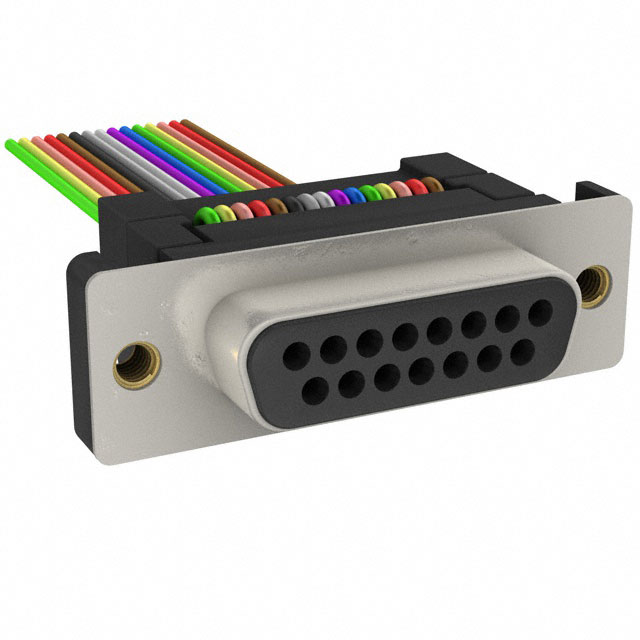

TE Connectivity AMP Connectors A7WXB-1510M	Gold	Receptacle Female Sockets	Individual Wire Leads	30 Áin	0.76 Ám	Unshielded	15	Multiple Ribbon	3.05 m	10 ft	DB15
TE Connectivity AMP Connectors A7WXB-0910G	Gold	Receptacle Female Sockets	Individual Wire Leads	30 Áin	0.76 Ám	Unshielded	9		3.05 m	10 ft	DB9
TE Connectivity AMP Connectors A7WXB-1506G	Gold	Receptacle Female Sockets	Individual Wire Leads	30 Áin	0.76 Ám	Unshielded	15		1.83 m	6 ft	DB15
TE Connectivity AMP Connectors A7WXB-1506M	Gold	Receptacle Female Sockets	Individual Wire Leads	30 Áin	0.76 Ám	Unshielded	15	Multiple Ribbon	1.83 m	6 ft	DB15

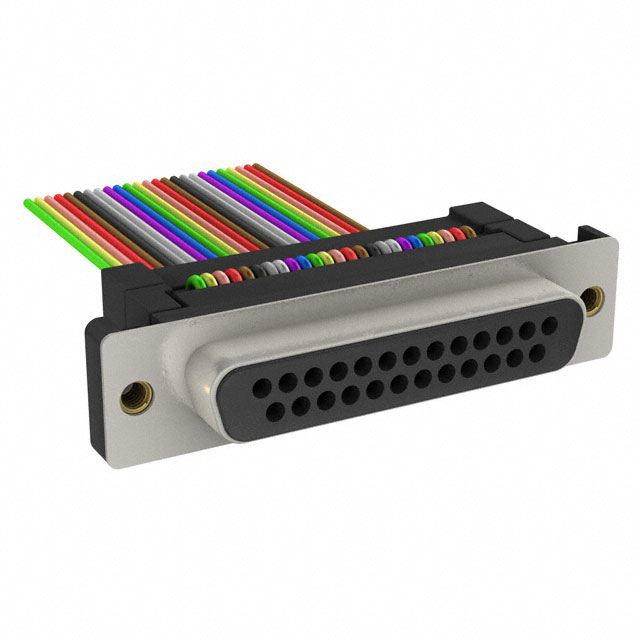

TE Connectivity AMP Connectors A7WXB-2510M	Gold	Receptacle Female Sockets	Individual Wire Leads	30 Áin	0.76 Ám	Unshielded	25	Multiple Ribbon	3.05 m	10 ft	DB25
TE Connectivity AMP Connectors A7WXB-0906G	Gold	Receptacle Female Sockets	Individual Wire Leads	30 Áin	0.76 Ám	Unshielded	9		1.83 m	6 ft	DB9
TE Connectivity AMP Connectors A7WXB-2506G	Gold	Receptacle Female Sockets	Individual Wire Leads	30 Áin	0.76 Ám	Unshielded	25		1.83 m	6 ft	DB25
TE Connectivity AMP Connectors A7WXB-3706M	Gold	Receptacle Female Sockets	Individual Wire Leads	30 Áin	0.76 Ám	Unshielded	37	Multiple Ribbon	1.83 m	6 ft	DB37
TE Connectivity AMP Connectors A7WXB-0906M	Gold	Receptacle Female Sockets	Individual Wire Leads	30 Áin	0.76 Ám	Unshielded	9	Multiple Ribbon	1.83 m	6 ft	DB9
TE Connectivity AMP Connectors A7WXB-3710M	Gold	Receptacle Female Sockets	Individual Wire Leads	30 Áin	0.76 Ám	Unshielded	37	Multiple Ribbon	3.05 m	10 ft	DB37
